Compression mount paddle handle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Jan 16, 2014
app pub date -
Jul 13, 2012
filing date -
Jul 13, 2012
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

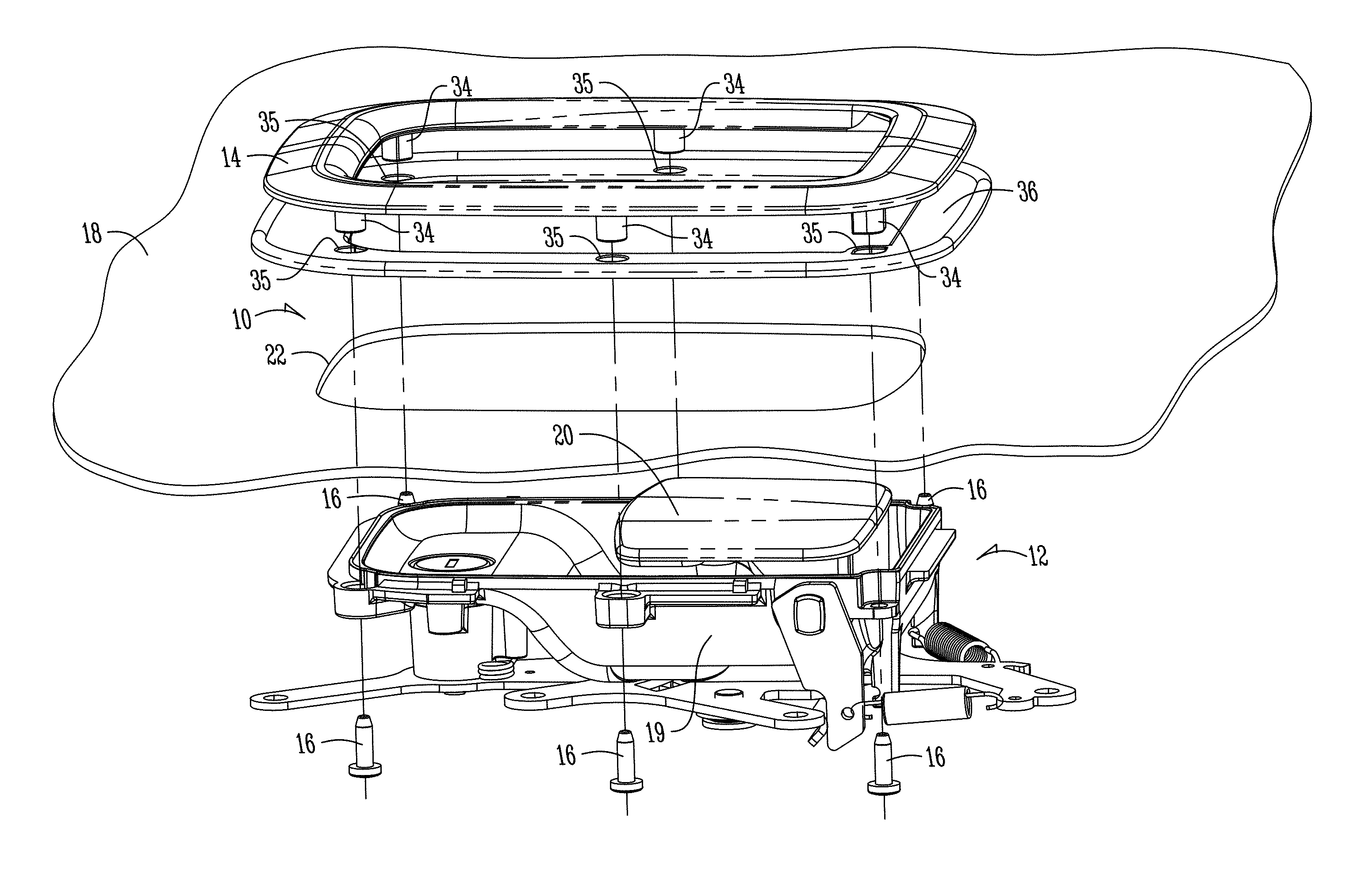

A paddle style handle assembly is provided for an RV, emergency vehicle or utility vehicle door or compartment. The assembly includes a housing and pivotal paddle which form a paddle module. The assembly also includes an ornamental bezel. The paddle module and bezel are compression mounted from the interior and exterior sides of a door panel, respectively, so that the panel is sandwiched between the paddle module and the bezel. The housing includes screw holders with molded flash membranes to hold screws prior to assembly on the door panel. The housing includes pockets formed around the paddle axle for receipt of gaskets to inhibit water infiltration. A counterbalance and a power lock actuator may be provided on the paddle module.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
TRIMARK CORPORATION | 500 BAILEY AVENUE NEW HAMPTON IA 50659 |
International Classification(s)

- 2012 Application Filing Year
- E05B Class
- 532 Applications Filed
- 445 Patents Issued To-Date
- 83.65 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Bearman, Jennifer L | New Hampton, US | 6 | 69 |
# of filed Patents : 6 Total Citations : 69 | |||
Burns, Jayden F | Lime Springs, US | 3 | 34 |
# of filed Patents : 3 Total Citations : 34 | |||
Everett, Alexander C | Charles City, US | 3 | 24 |
# of filed Patents : 3 Total Citations : 24 | |||
Root, David L | Tripoli, US | 5 | 57 |
# of filed Patents : 5 Total Citations : 57 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 3 Citation Count
- E05B Class
- 26.71 % this patent is cited more than
- 7 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
