HIERARCHICAL POWER MAP FOR LOW POWER DESIGN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 9, 2014
app pub date -
Dec 18, 2012
filing date -
Jun 24, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

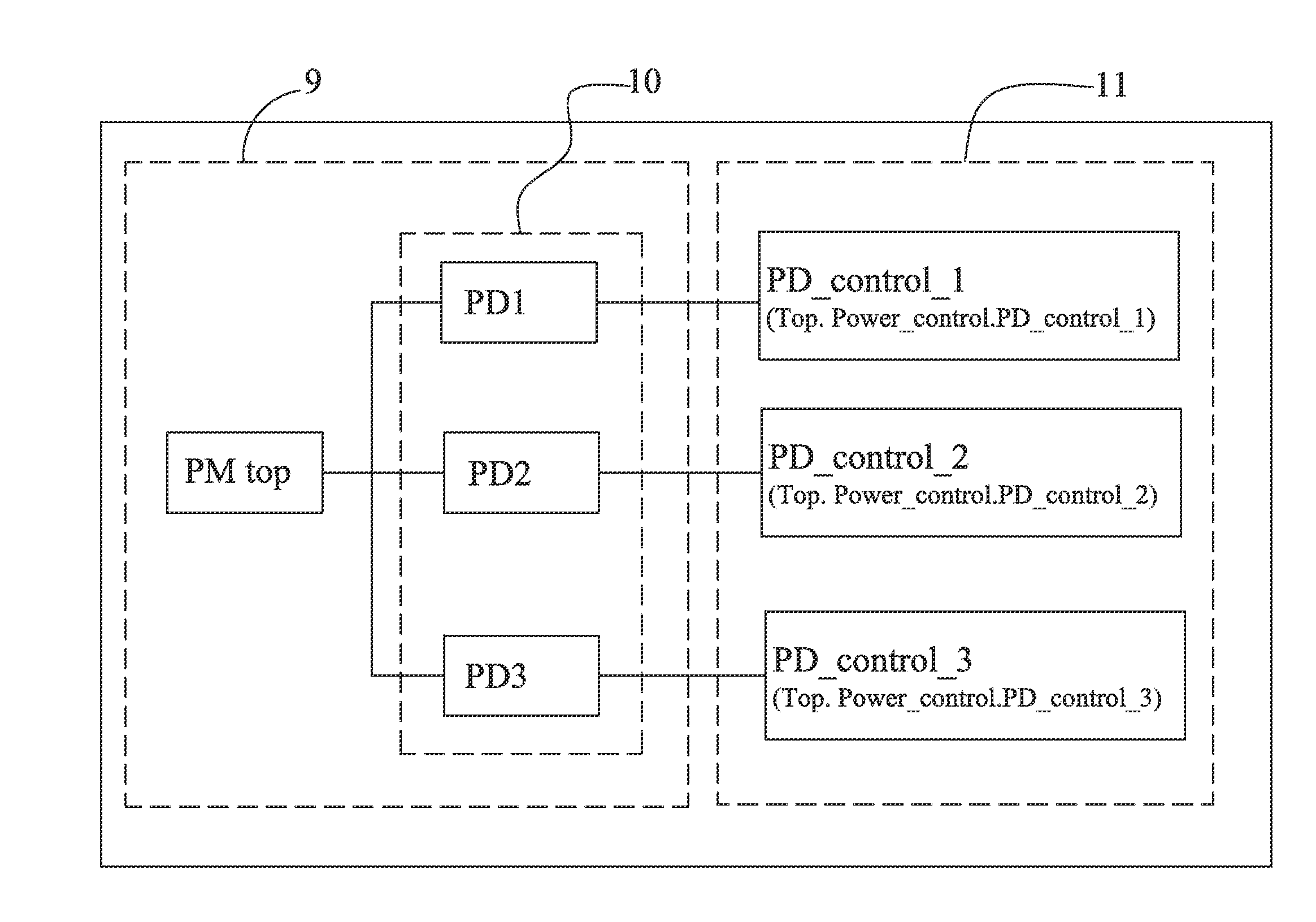

Power information associated with an IC design is displayed graphically and hierarchically using a power map, thereby providing an intuitive way for describing the power distribution among various power domains of the IC and parent-child relationships within the power domains. Each power domain is associated with a power control for controlling the power domain. The status of the power control for each power domain is displayed on the power map. The power map may include a token to set and display current operating mode of the IC design to enable the IC design to be debugged under different operating modes.
