ELECTRIC BRAKE WITH PARKING MECHANISM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 2, 2014
app pub date -
Mar 16, 2012
filing date -
Mar 17, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

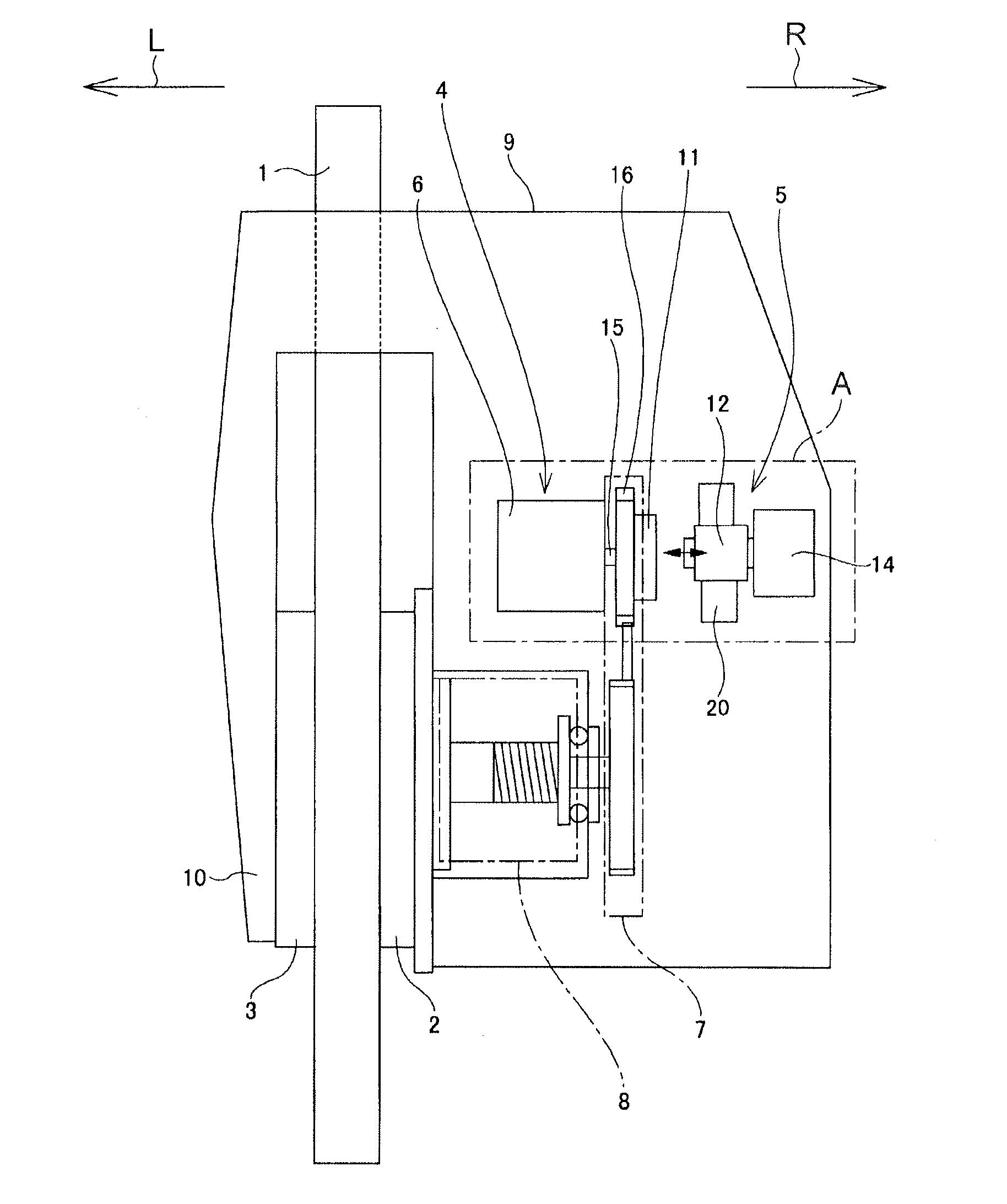

An electric brake with a parking mechanism includes a parking lock device. A rotating side engaging surface of the parking lock device is formed with rotating side engaging projections at a plurality of places in a circumference direction of the rotating side engaging surface. One side surfaces in the circumference direction of the rotating side engaging projections are inclined edges which are inclined relative to a direction a restraining side engaging member of the parking lock device is displaced. The inclined edges are inclined in such a direction that a range in which the inclined edges and distal ends of the restraining side engaging member engage with each other is increased as the inclined edges go forward in a direction the restraining side engaging member moves based on an elastic force of an elastic member of the parking lock device.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- F16D Class
- 88.38 % this patent is cited more than
- 11 Age
