COMPACT MODE-SIZE TRANSITION USING A FOCUSING REFLECTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 26, 2013
app pub date -
Jun 26, 2013
filing date -
Jun 26, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

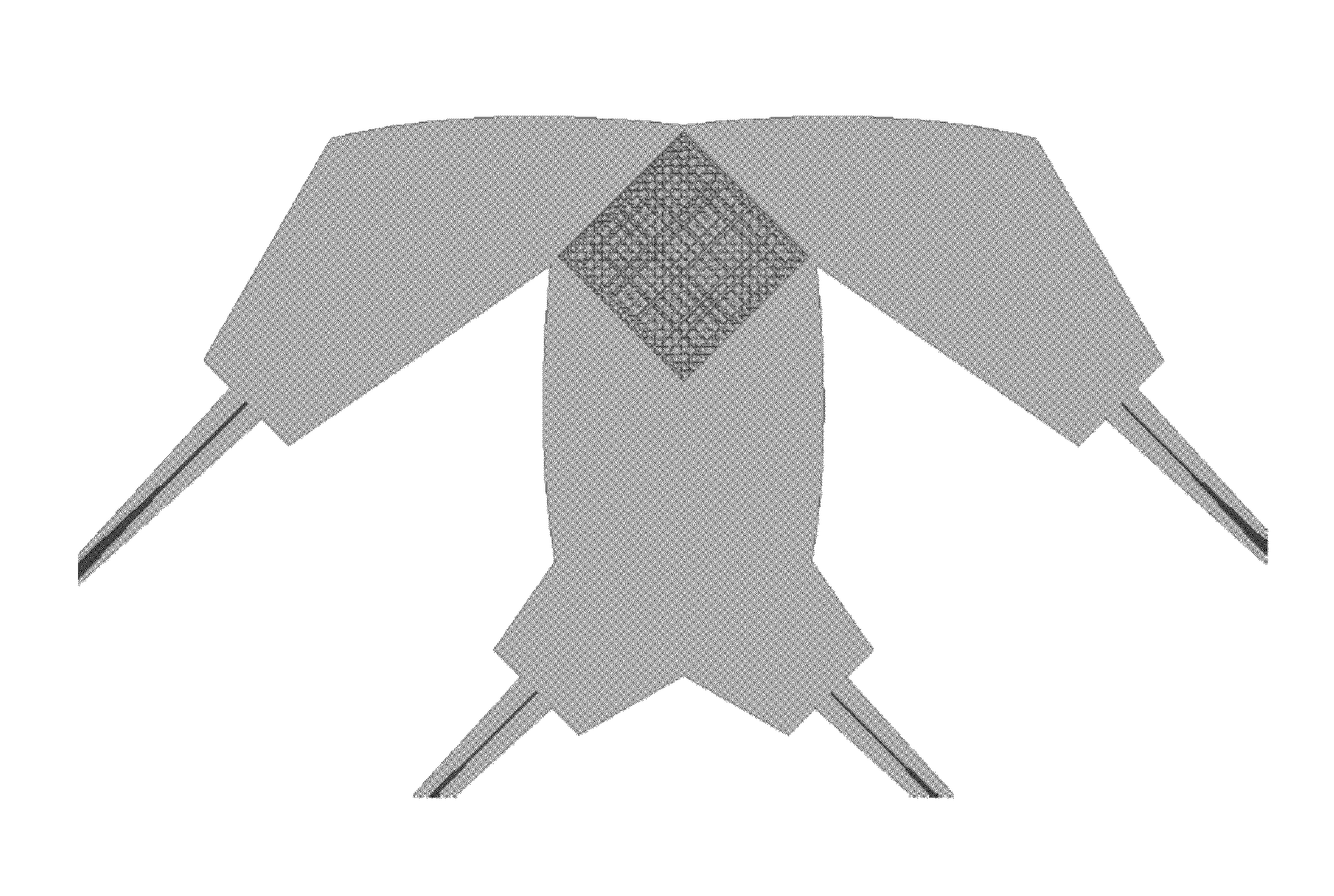

Disclosed herein are techniques, methods, structures and apparatus for optically coupling optical waveguides and optical structures exhibiting different widths in which In which a focusing reflector is used to optically couple a relatively wide optical waveguide to a relatively narrow optical waveguide. An exemplary method according to the present disclosure comprises the steps of: providing the first waveguide that is 5 or more wavelengths in width; providing the second waveguide that is 3 or less wavelengths in width; coupling light emanating from the first waveguide to the second waveguide through the effect of a slab waveguide having a curved edge.
