METHOD FOR MEASURING THE LIGHT PROPERTIES OF LIGHT-EMITTING DIODES

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20130335093A1
SERIAL NO

13901030

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

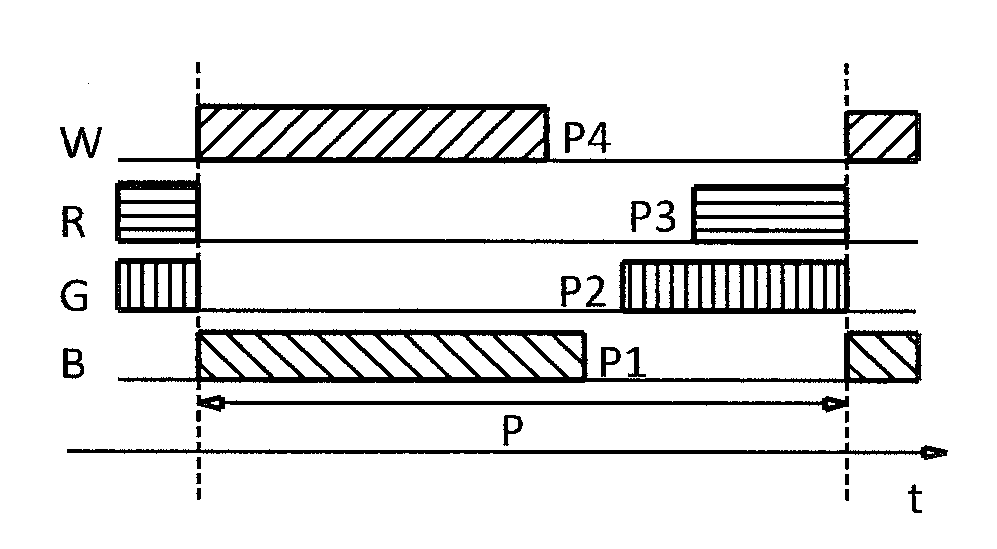

The invention relates to a method for measuring the light properties of light-emitting diodes (LEDs) in an arrangement of a plurality of channels connected in parallel, each having at least one LED per channel and a driver for driving the channels by means of pulse width modulation (PWM), in such a way that at least one pulse of predetermined width can be generated for each channel within a PWM period, wherein the LED of a selected channel is measured during a measurement interval, the measurement interval overlapping a pulse, lying within the PWM period, of a selected channel.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
DIEHL AEROSPACE GMBHALTE NUSSDORFER STRASSE 23 UEBERLINGEN 88662

International Classification(s)

loading....
  • 2013 Application Filing Year
  • G01R Class
  • 4386 Applications Filed
  • 3938 Patents Issued To-Date
  • 89.79 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2013201420152016201720182019202020212022202320240255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
BACHMAIER, Steffen Nurnberg, DE 4 15
KANGARAKIS, Nicolaus Nurnberg, DE 4 2
