STEERING TORQUE ANGLE SENSOR HAVING A PROCESSOR AND A MAGNETO-RESISTIVE ELEMENT CONFIGURED IN A MONOLITHIC ARCHITECTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 19, 2013
app pub date -
Aug 3, 2012
filing date -
Jun 15, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

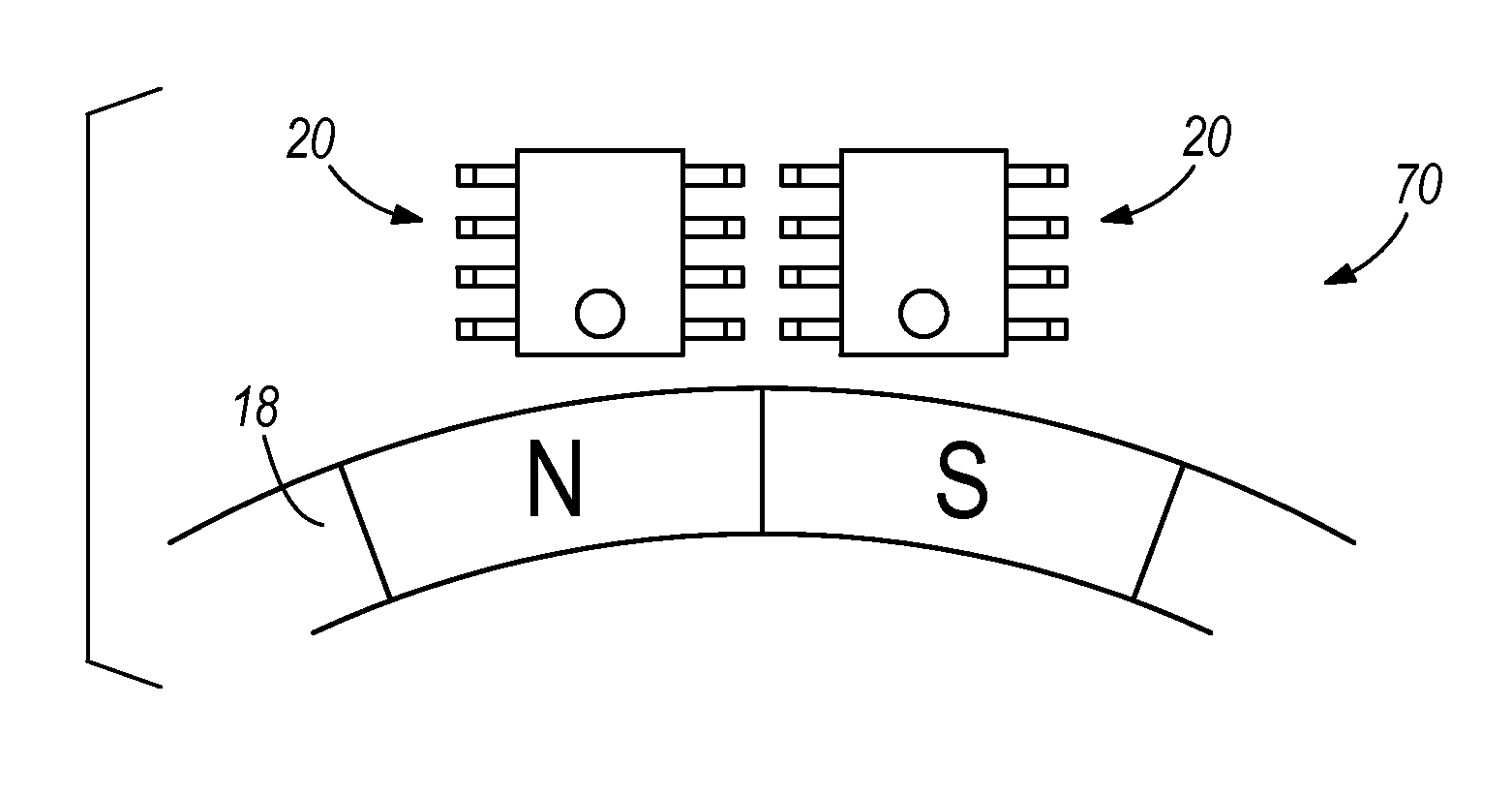

An electronic device for measuring a magnetic field angle within a vehicle steering assembly. The electronic device includes a semiconductor die having a perimeter, a magneto-resistive sensing element formed in the die and located near the perimeter of the semiconductor die, and a processing circuit formed in the die. The processing circuit is electrically connected to the magneto-resistive sensing element and is configured to generate a signal indicative of at least one of magnetic field angle and a steering torque. A non-conductive material encapsulates the semiconductor die. Electrical connectors are electrically connected to the die and pass through the non-conductive material encapsulating the semiconductor die. The electrical connectors are configured to be electrically connected to a printed circuit board. The semiconductor die is located near the perimeter of the package to position the magneto-resistive sensing element near the perimeter of the package.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 15 Citation Count
- G01B Class
- 61.53 % this patent is cited more than
- 12 Age
