DC-DC controller and operation method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 7, 2015
Grant Date -
Dec 19, 2013
app pub date -
Sep 14, 2012
filing date -
Jun 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

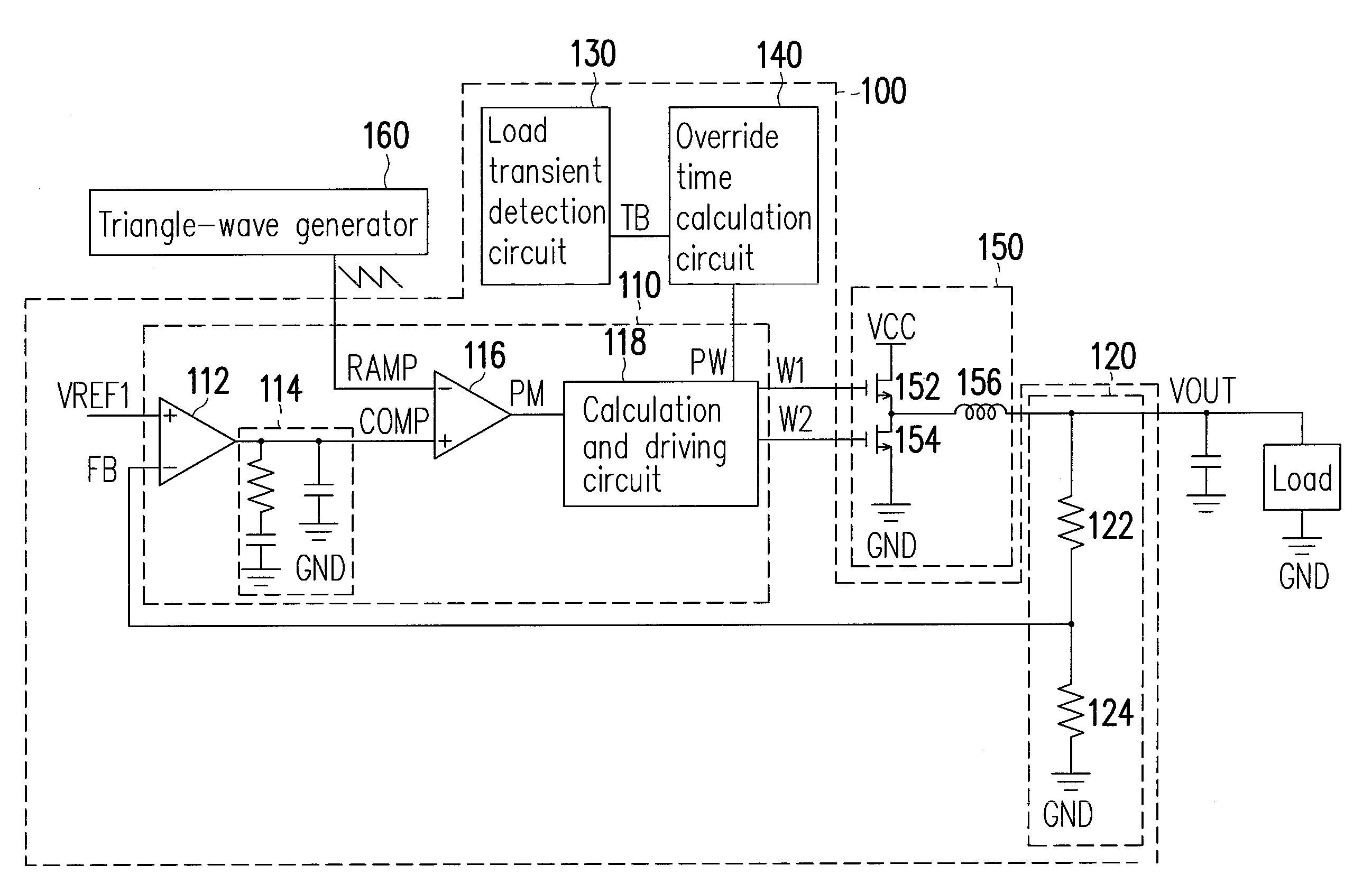

A DC-DC controller and an operation method thereof are provided. The DC-DC controller is configured to connect an output stage. The DC-DC controller includes a pulse width modulation (PWM) calculation circuit, a load transient detection circuit, and an override time calculation circuit. The PWM calculation circuit provides a PWM signal to the output stage. The load transient detection circuit receives an input signal related to an output voltage of the output stage. The load transient detection circuit provides a control signal according to the input signal and a predetermined input signal. The override time calculation circuit provides an override control signal with a predetermined time to the PWM calculation circuit according to the control signal. The PWM calculation circuit adjusts a duty cycle of the PWM signal according to the override control signal.
