Trash separator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 4, 2014
Issued Date -
N/A
app pub date -
Jun 25, 2013
filing date -
Jun 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

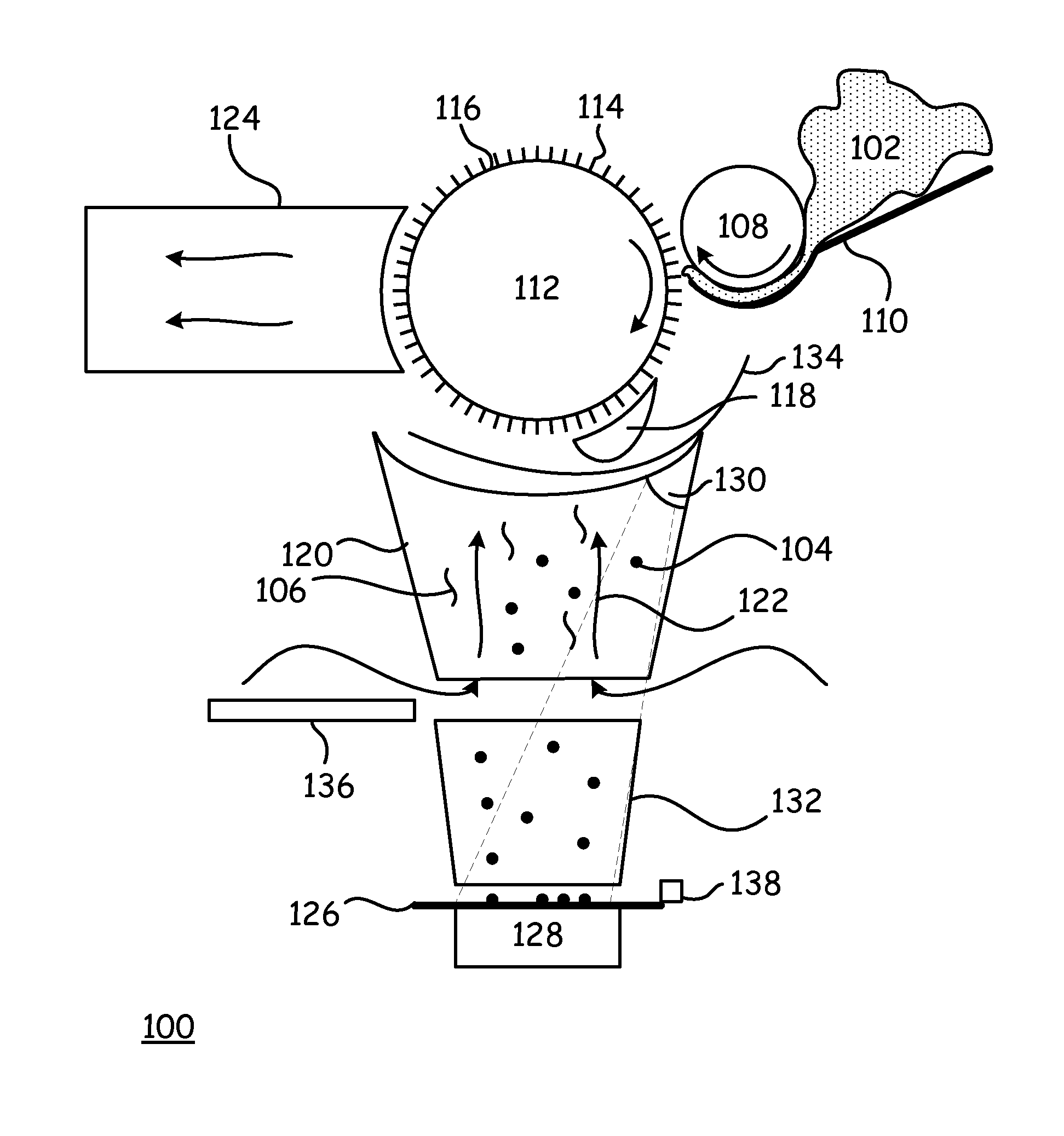

An apparatus for processing a sample including fibers and trash, having a cylinder rotating in a first direction for receiving the sample. The cylinder has a surface with rigid pins. The pins engage and retain the fibers of the sample. A collection surface receives the trash that falls from the cylinder. A counter-flow of air moves in a separation region between the cylinder and the collection surface in a direction that is substantially perpendicular to and towards the underside of the cylinder. The counter-flow of air has at each position within the separation region an air-flow velocity that is sufficient for the counter-flow of air to blow the fibers that are not originally retained by the pins up toward the cylinder and thereby engaging the fibers with the cylinder, and yet insufficient to prevent gravity from pulling the trash downward through the counter-flow of air.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- D01B Class
- 3 Applications Filed
- 2 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D01B Class
- 0 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 4, 2026 |
