ERGONOMIC MANUFACTURING TRAY AND PROCESSING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 19, 2013
app pub date -
Jun 18, 2012
filing date -
Jun 18, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

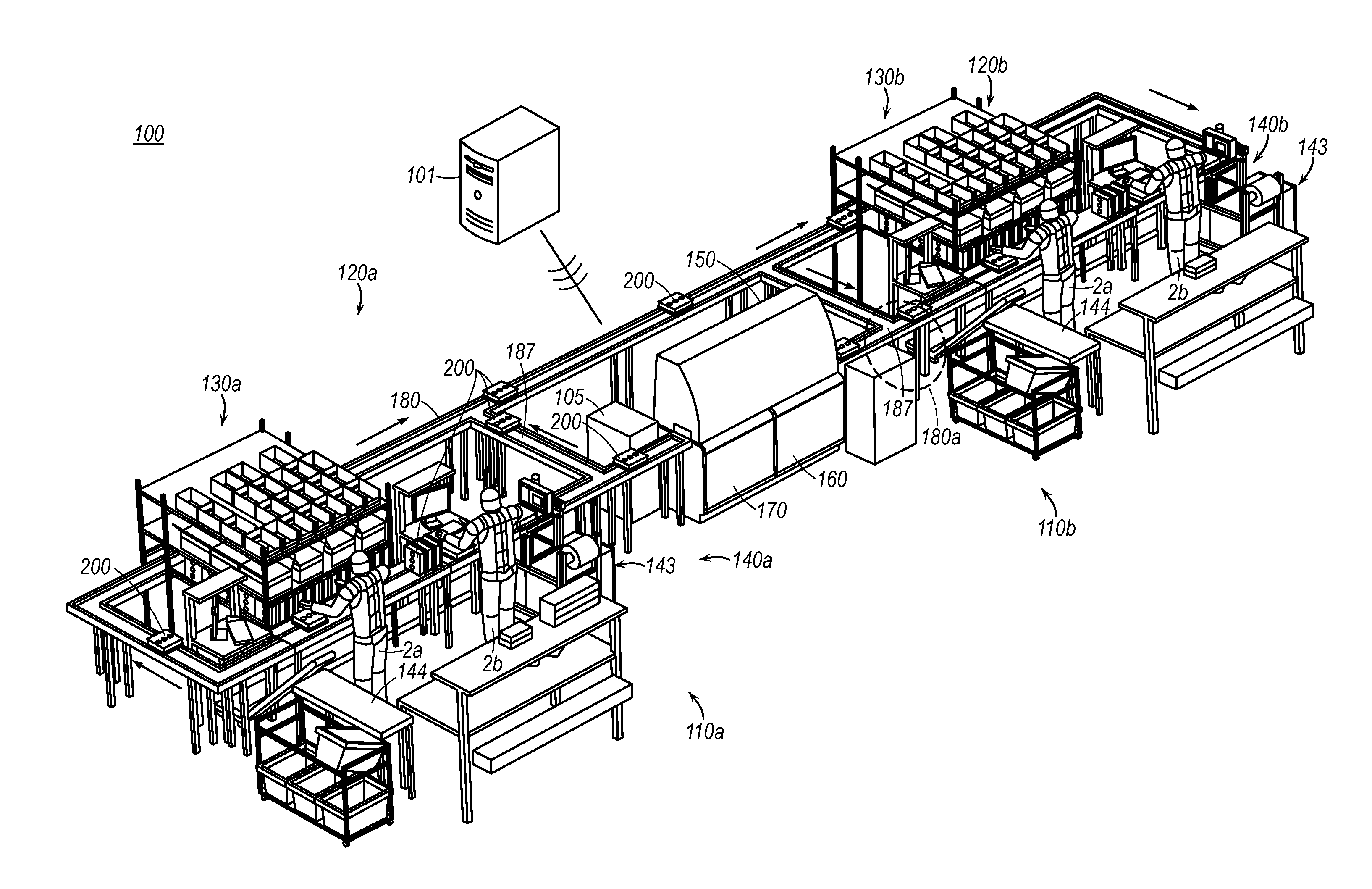

A manufacturing tray and system for ergonomic operations includes a tray, conveyance system, and loading and unloading stations configured with optimal dimensions and placement to allow an operator to load and unload trays while maintaining ideal standing posture. A conveyor system and trays transported thereon have a width less than the length of an average human forearm, while lanes of a tray rack and a flow rack open in front of a tray loading position on the conveyor. The height of the conveyor has a height approximately the height of the hips of an average standing operator. The tray includes a sliding rail for low-friction sliding of the tray along the conveyor. The tray may also include a handle which allows an operator to flip the tray position from vertical to horizontal or horizontal to vertical depending on whether the tray is to be stored or used.
