MULTILAYER BUILD PROCESSES AND DEVICES THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 13, 2013
filing date -
Nov 23, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

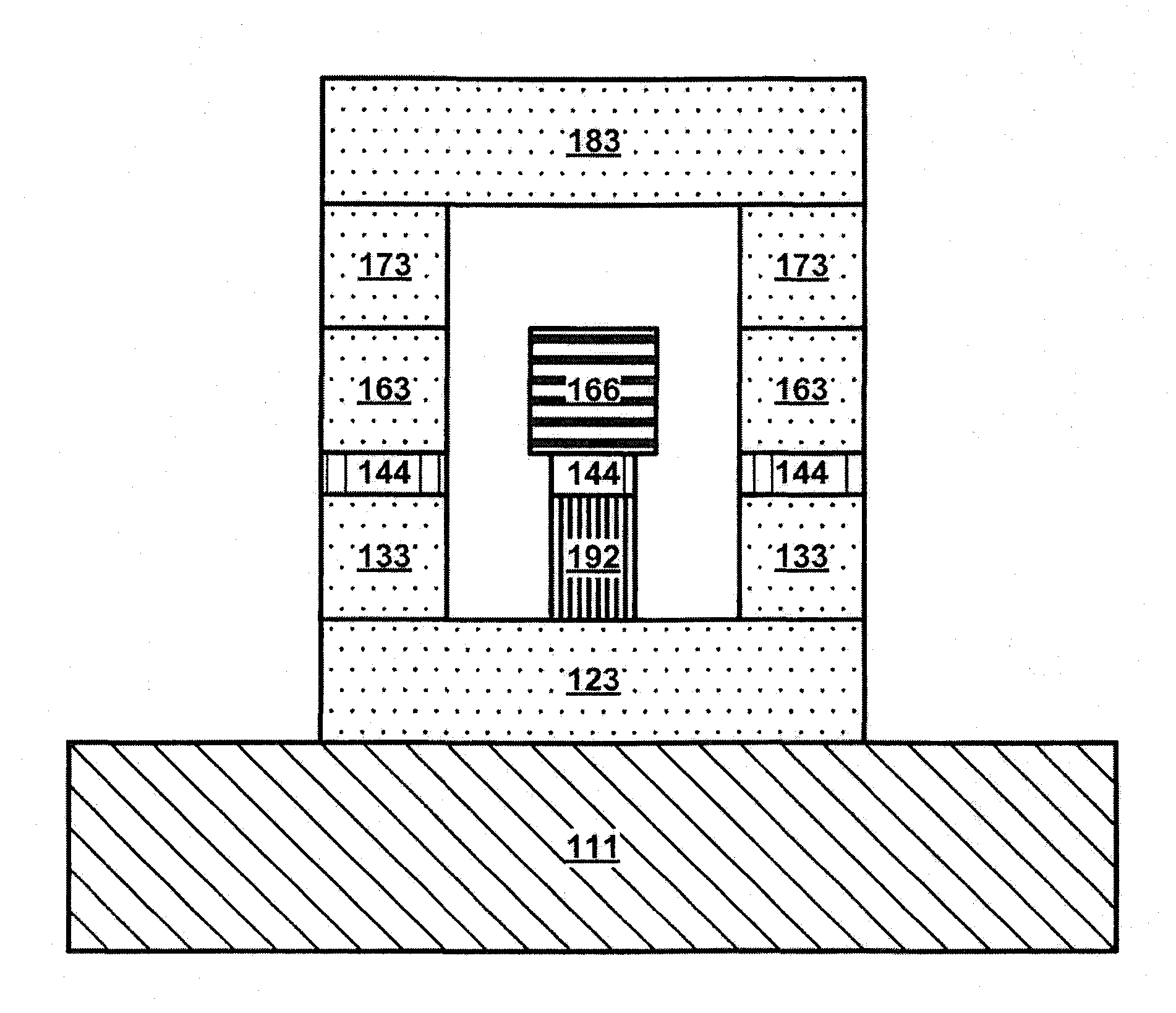

A process to form devices may include forming a seed layer on and/or over a substrate, modifying a seed layer selectively, forming an image-wise mold layer on and/or over a substrate and/or electrodepositing a first material on and/or over an exposed conductive area. A process may include selectively applying a temporary patterned passivation layer on a conductive substrate, selectively forming an image-wise mold layer on and/or over a substrate, forming a first material on and/or over at least one of the exposed conductive areas and/or removing a temporary patterned passivation layer. A process may include forming a sacrificial image-wise mold layer on a substrate layer, selectively placing one or more first materials in one or more exposed portions of a substrate layer, forming one or more second materials on and/or over a substrate layer and/or removing a portion of a sacrificial image-wise mold layer.
