ROLLER LEVELER AND METAL SHEET FLATTENING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 12, 2013
app pub date -
Feb 3, 2012
filing date -
Feb 24, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

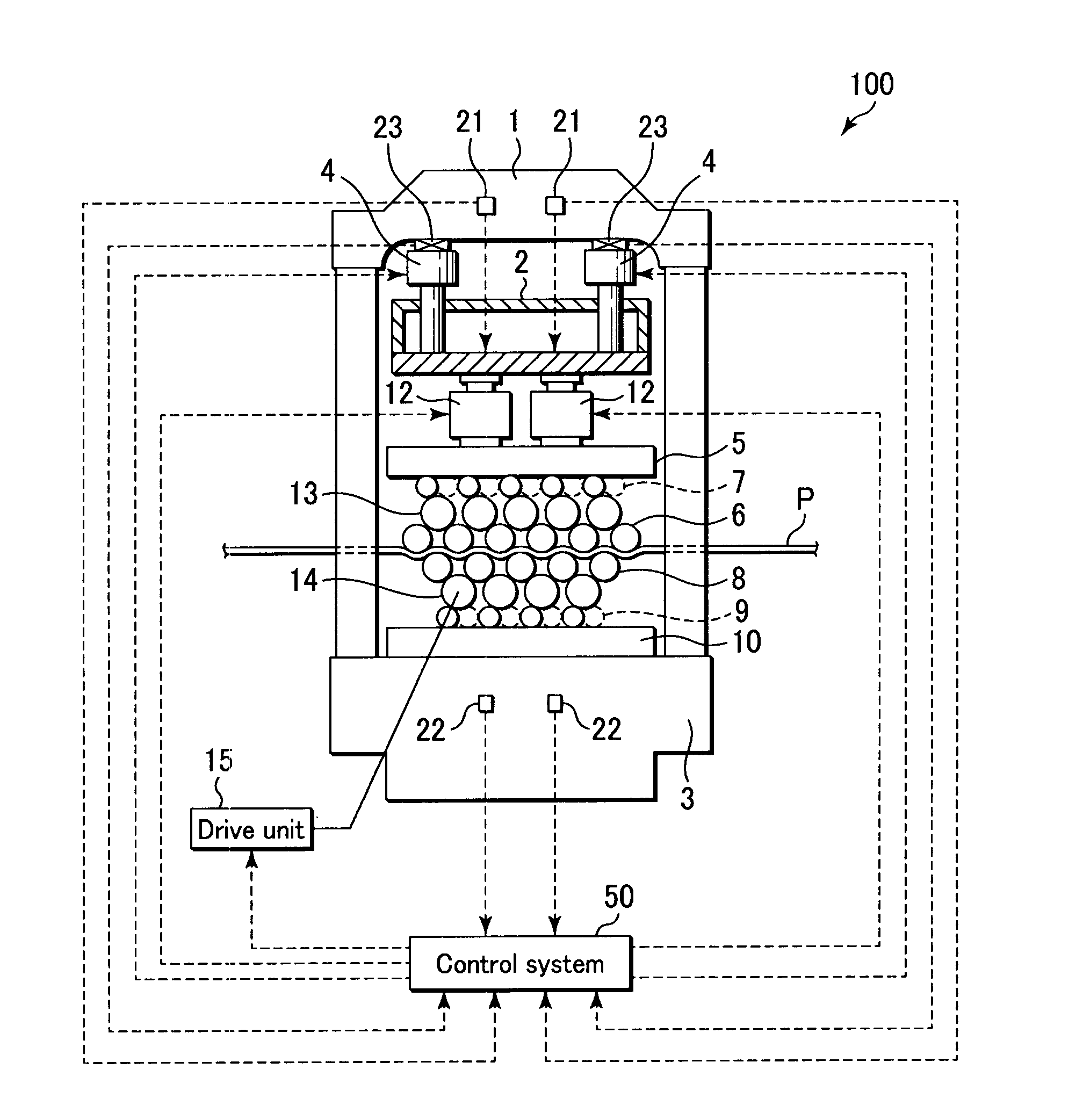

A roller leveler for flattening a metal sheet or plate having a cut-sheet form includes leveling rolls disposed in a staggered state on upper and lower sides of a pass line and configured to sandwich and flatten the metal sheet while pressing it therethrough, a hydraulic pressing cylinder for pressing the metal sheet via the leveling rolls, intermediate rolls set in contact with the respective leveling rolls from outside and larger in diameter than the leveling rolls, and a drive unit for rotating the intermediate rolls. The roller leveler causes the drive unit to rotate the intermediate rolls and transmits the driving force to the leveling rolls to pass the metal sheet while causing the pressing cylinder to press the metal sheet via the leveling rolls.
First Claim
Other Claims data not available
