Tool coupler having anti-release mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 1, 2014
Issued Date -
N/A
app pub date -
May 30, 2012
filing date -
May 30, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

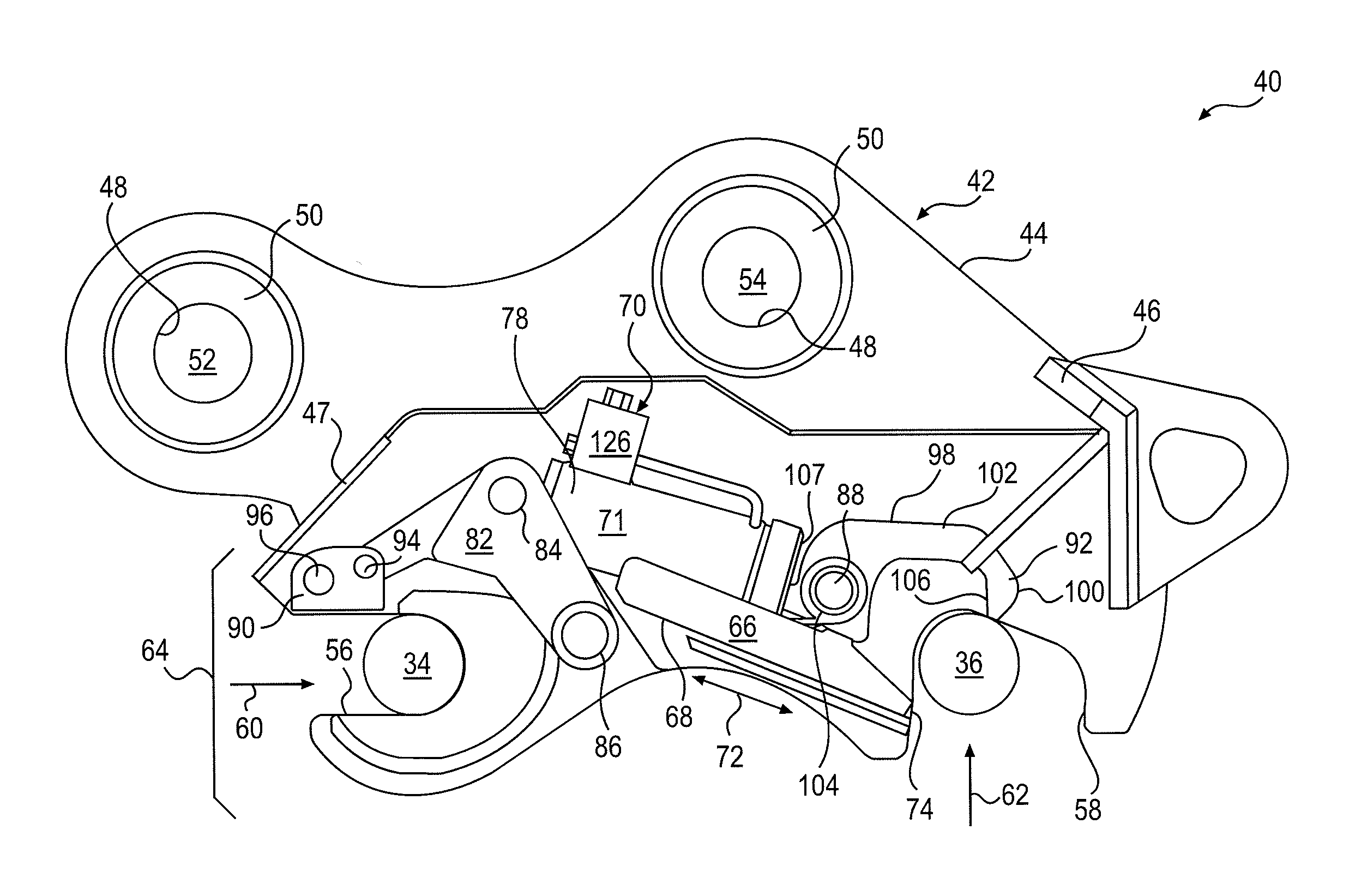

A tool coupler for a machine is provided herein. In an embodiment, the tool coupler may have a coupler frame, a hook coupled to the coupler frame and configured to receive a first pin of a tool, and a wedge operatively connected to the coupler frame. The tool coupler may also have an actuator connected to move the wedge away from the hook to bias a second pin of the tool against the coupler frame, and a latch associated with the wedge. The latch may be movable between a first position at which the wedge is allowed to move away from the second pin, and a second position at which the wedge is constrained from moving away from the second pin.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2012 Application Filing Year
- E02F Class
- 532 Applications Filed
- 464 Patents Issued To-Date
- 87.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- E02F Class
- 78.29 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 1, 2025 |
