BLADE DRIVE DEVICE AND OPTICAL EQUIPMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 7, 2013
filing date -
Mar 31, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

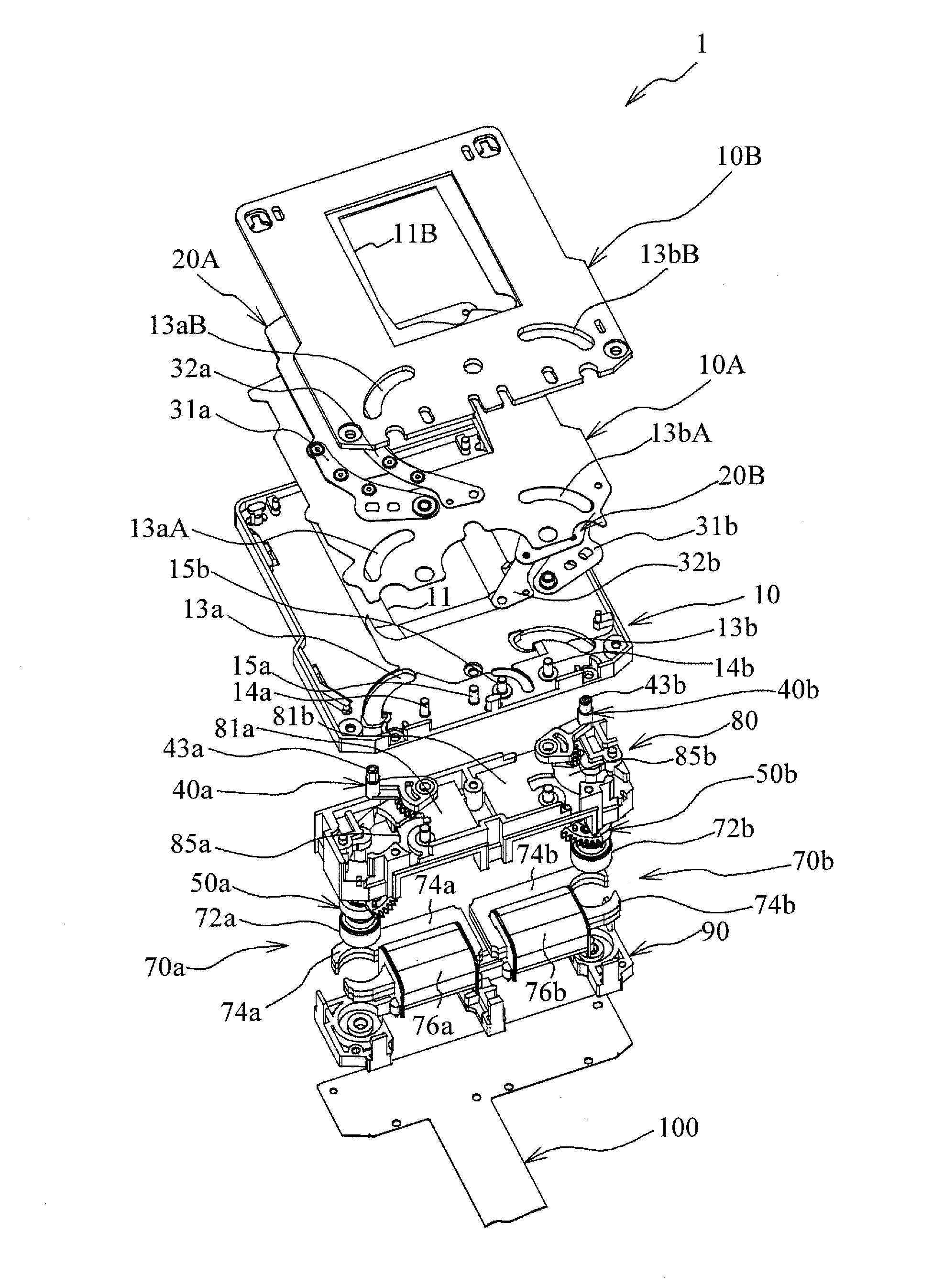

A blade drive device includes: a blade; a board including an opening opened and closed by the blade; an actuator including a rotor; an output member driven by the rotor; a drive member rotatable relative to the board in response to the output member; a driven member driving the blade in response to the drive member; and a holder holding the actuator, wherein the holder includes an escape hole, the drive member includes: a support portion rotatably supported; a first connection portion connected with the output member; and a second connection portion connected with the driven member, and the first connection portion is positioned in the escape hole between the second connection portion and the support portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G03B Class
- 13.35 % this patent is cited more than
- 12 Age
