ENCODING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 5, 2013
app pub date -
Feb 21, 2012
filing date -
Feb 28, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

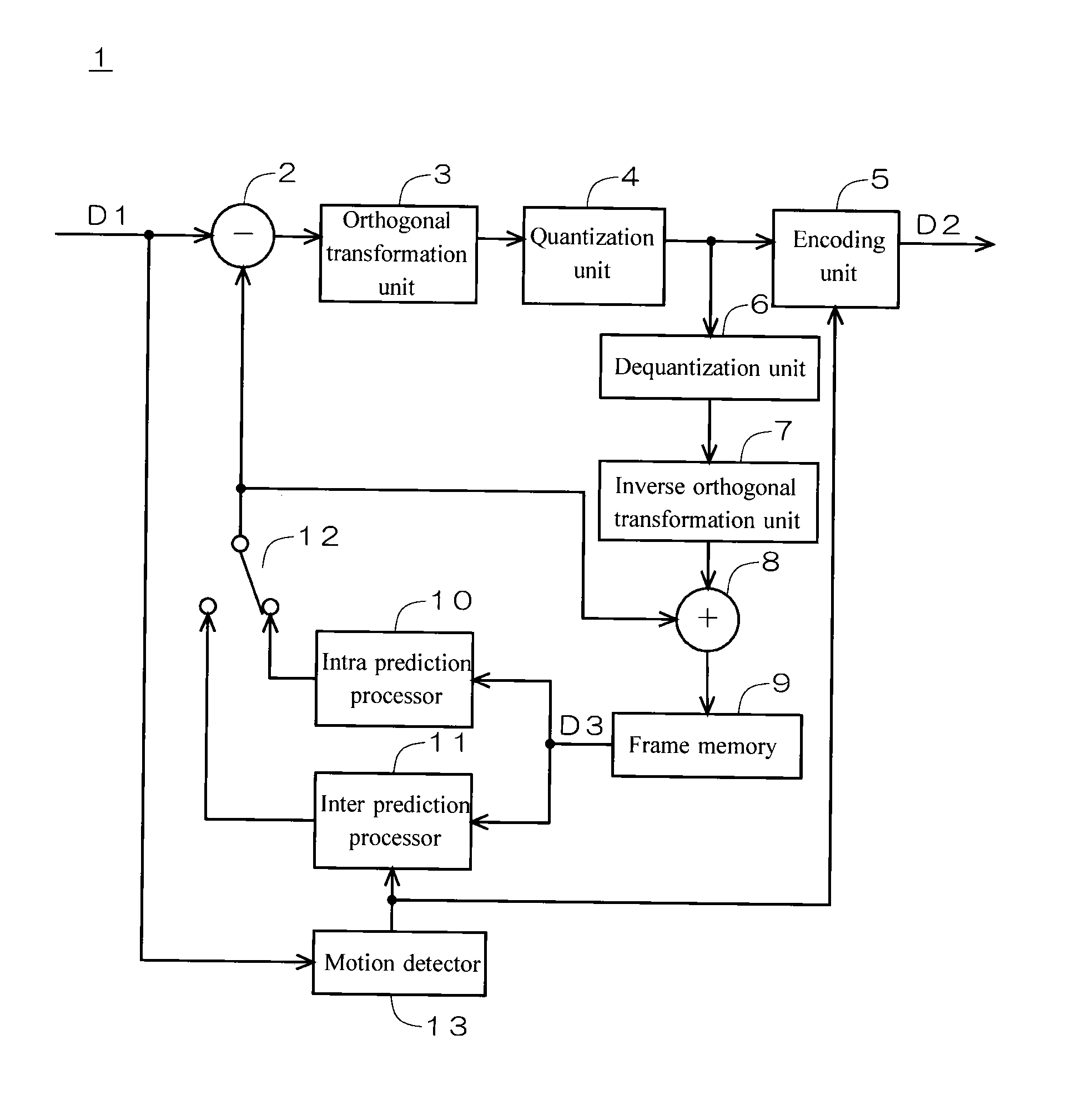

A coding device that achieves reduction in a circuit size and in the number of processing cycles is obtained. A coding device includes a first arithmetic unit that calculates a first difference value between an input image and a predicted image with respect to each of blocks having a first block size included in a macroblock to be coded, and a second arithmetic unit that calculates a second difference value between an input image and a predicted image for each of blocks having a second block size larger than the first block size included in the macroblock, and a prediction mode determination unit that determines a prediction mode to be applied to the macroblock, based on the first difference values of the macroblock calculated by the first arithmetic unit and the second difference values of the macroblock calculated by the second arithmetic unit.
First Claim
Other Claims data not available
