DEVICE FOR SUPPLYING AN INLET LINE OF A PACKING MACHINE WITH FLAT PACKS CONTAINED INTERNALLY OF A CARDBOARD BOX, AND A CARDBOARD BOX CONTAINING FLAT PACKS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 5, 2013
app pub date -
Jun 3, 2013
filing date -
Jun 5, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

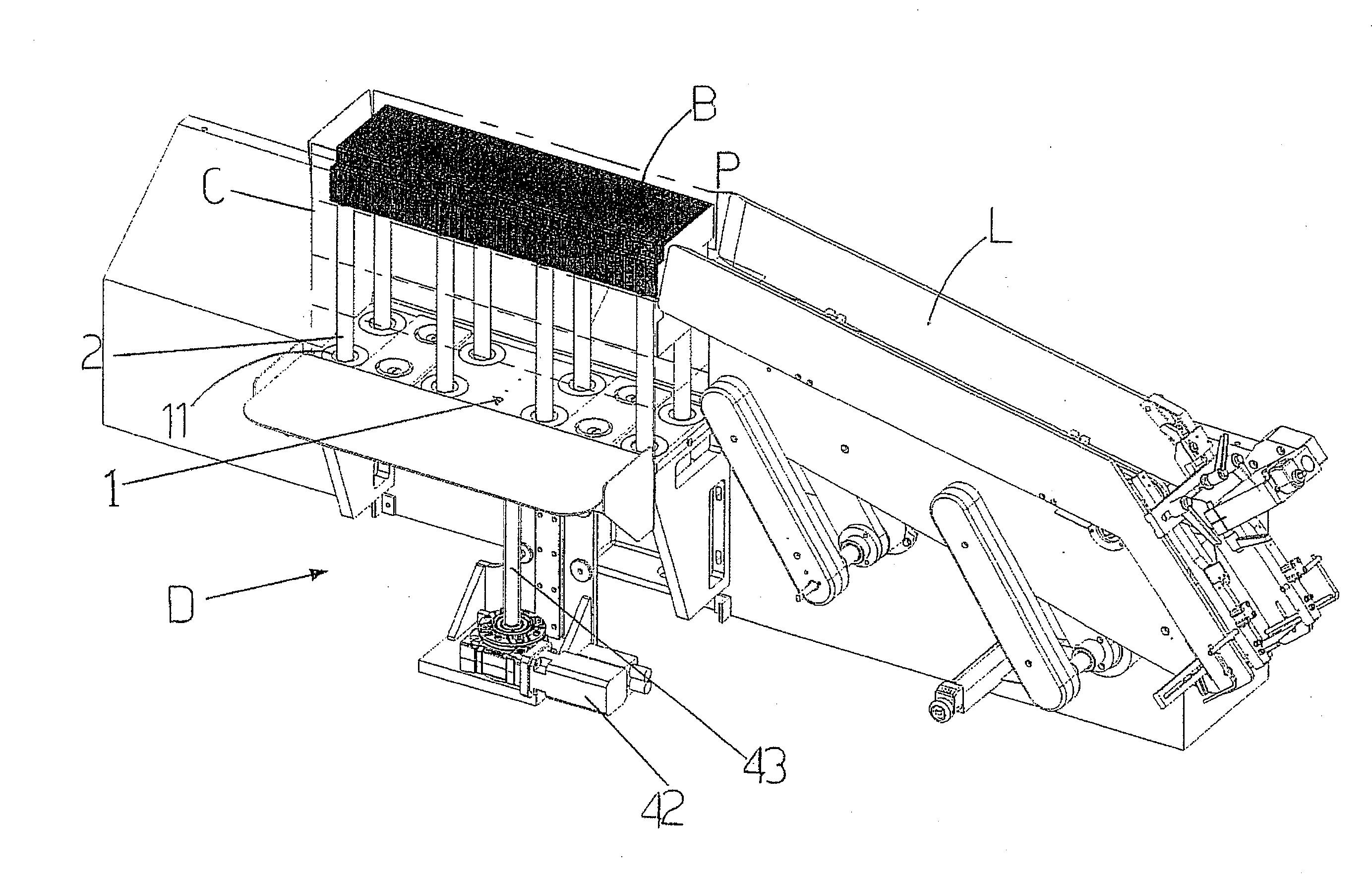

The device for supplying an inlet line (L) of a packing machine with flat packs contained internally of a cardboard box (C), in batteries (B) of packs superposed on one another, comprises: a rest plate (1) provided with through-holes (11), for restingly receiving the base surface (CB) of the box (C), which includes a series of through-holes (F), a series of rods (2) and moving means (M) of the rods (2), activatable in such a way as to translate the rods (2) with respect to the plate (1). The moving means (M) are commandable to translate the rods (2) with respect to the plate (1) in such a way that the rods (2) pass through the holes (11) present in the plate (1) and the holes (F) present on the base surface (CB) of the box (C), enter internally of the box (C) and raise the batteries (B) of packs present therein such that a battery (B) of packs in turn is raised into a position (P) beyond the upper open surface (I) of the box (C) and maintained in said position (P) for a time that is sufficient for all the packs of the battery to be supplied and transferred to the inlet line (L) of the packing machine.
First Claim
Other Claims data not available
