TOOL LIFT MECHANISM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 5, 2013
app pub date -
Oct 7, 2011
filing date -
Oct 7, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

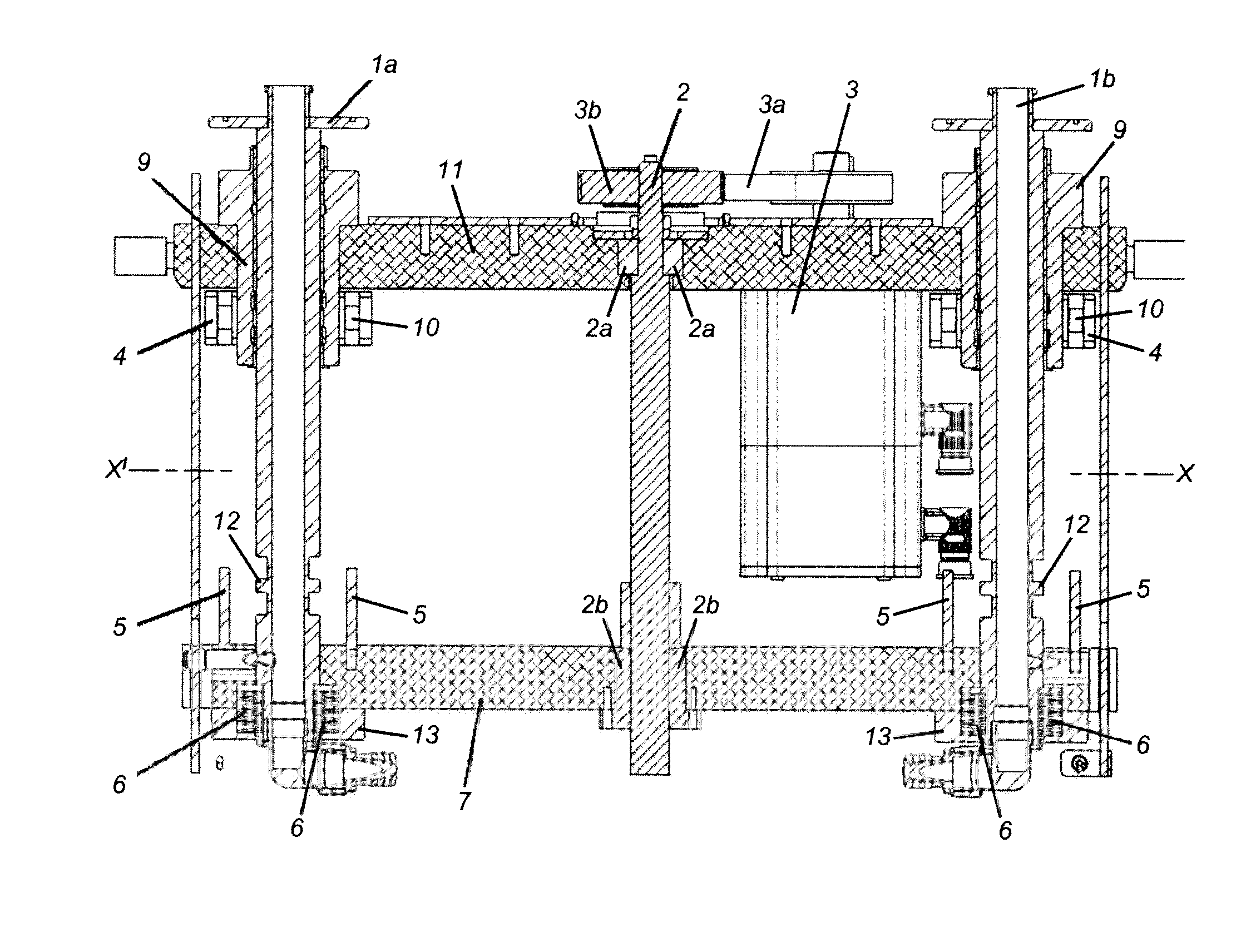

The present application relates to a lifting apparatus comprising a first member and a second member; a lifting mechanism coupled to said first member adapted to move said first member towards said second member; and a third member coupled to said first member, the third member slideably moveable through said second member when said first member is moved towards said second member. When a predetermined compressive force is applied to said third member, a latching mechanism responds by latching said second member to said third member, such that when a further compressive force is applied to said third member, said first member and lifting mechanism are isolated from said further compressive force.
First Claim
Other Claims data not available
