COMPACT DUNNAGE DISPENSING SYSTEM AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 28, 2013
app pub date -
Dec 16, 2011
filing date -
Jan 14, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

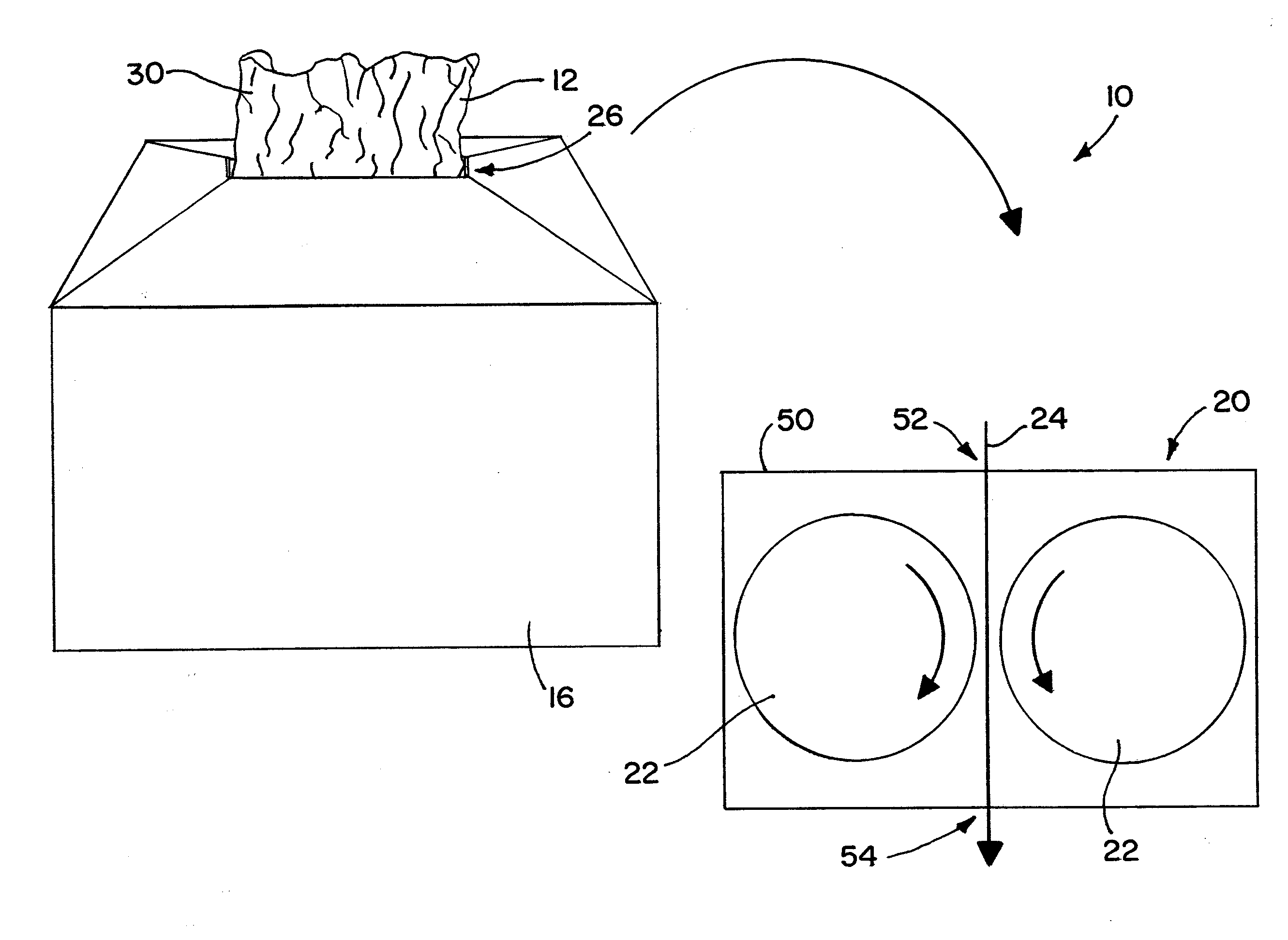

A compact system (10) for dispensing a dunnage product (14) includes the combination of a container (16) for a supply of fan-folded sheet stock material (12) and a feed assembly (20) for drawing the stock material (12) from the container (16). The container (16) has an opening (26) with a dimension that is smaller than a corresponding dimension, particularly a width dimension, of the container (16). A leading end (30) of the sheet material (12) is pulled from the container (16), through the opening (26). Then the container (16) is inverted and supported above the feed assembly (20) with the opening (26) facing and aligned with a linear path (24) through the feed assembly (20). The container (16) is supported such that rotating members (22) in the feed assembly (20) can engage the leading end (30) of the stock material (12) and draw the stock material (12) from the container (16) and along the linear path (24) through the feed assembly (20), which dispenses the dunnage product (14).
First Claim
Other Claims data not available
