DOMESTIC APPLIANCE HINGE ASSEMBLY WITH DAMPER ALIGNMENT SPACER BUSHINGS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 28, 2013
app pub date -
May 23, 2012
filing date -
May 23, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

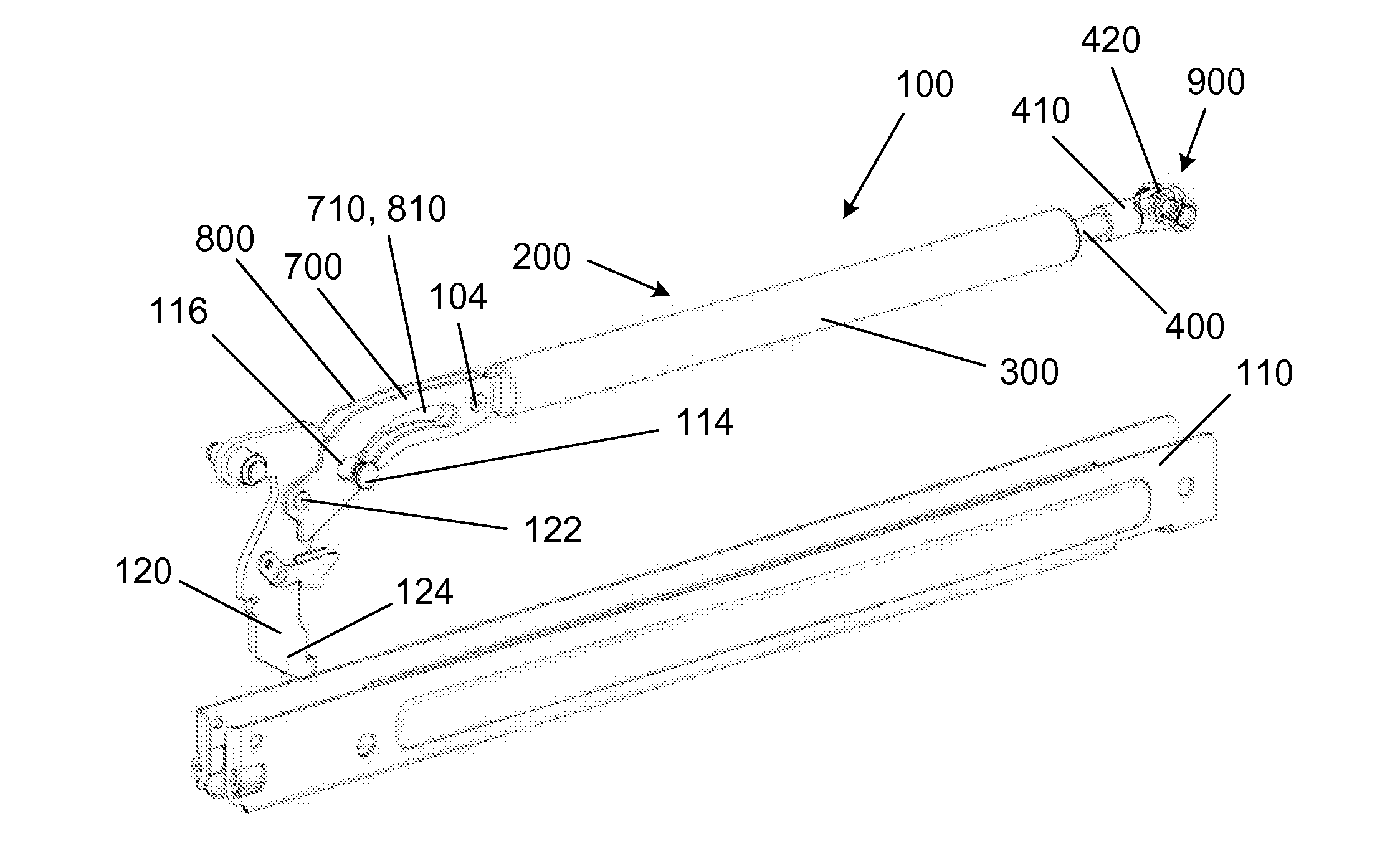

A hinge assembly is provided for pivotably attaching a door to a domestic appliance. The hinge assembly includes a hinge body having two side walls; a damper; a foot pivotably attached to the damper, the foot being configured to engage a foot receiving portion of the appliance body such that the hinge body and the door pivot relative to the appliance body; a pivot member that locationally fixes an eyelet of the damper to the hinge body; and two spacer bushings located on opposite sides of the eyelet and between the eyelet and the side walls of the hinge body. The pivot member extends through the side walls, the spacer bushings and the eyelet.
First Claim
Other Claims data not available
