DEVICE AND METHOD FOR MEASURING THE AIR PERMEABILITY OF A BUILDING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 21, 2013
app pub date -
Nov 22, 2011
filing date -
Nov 22, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

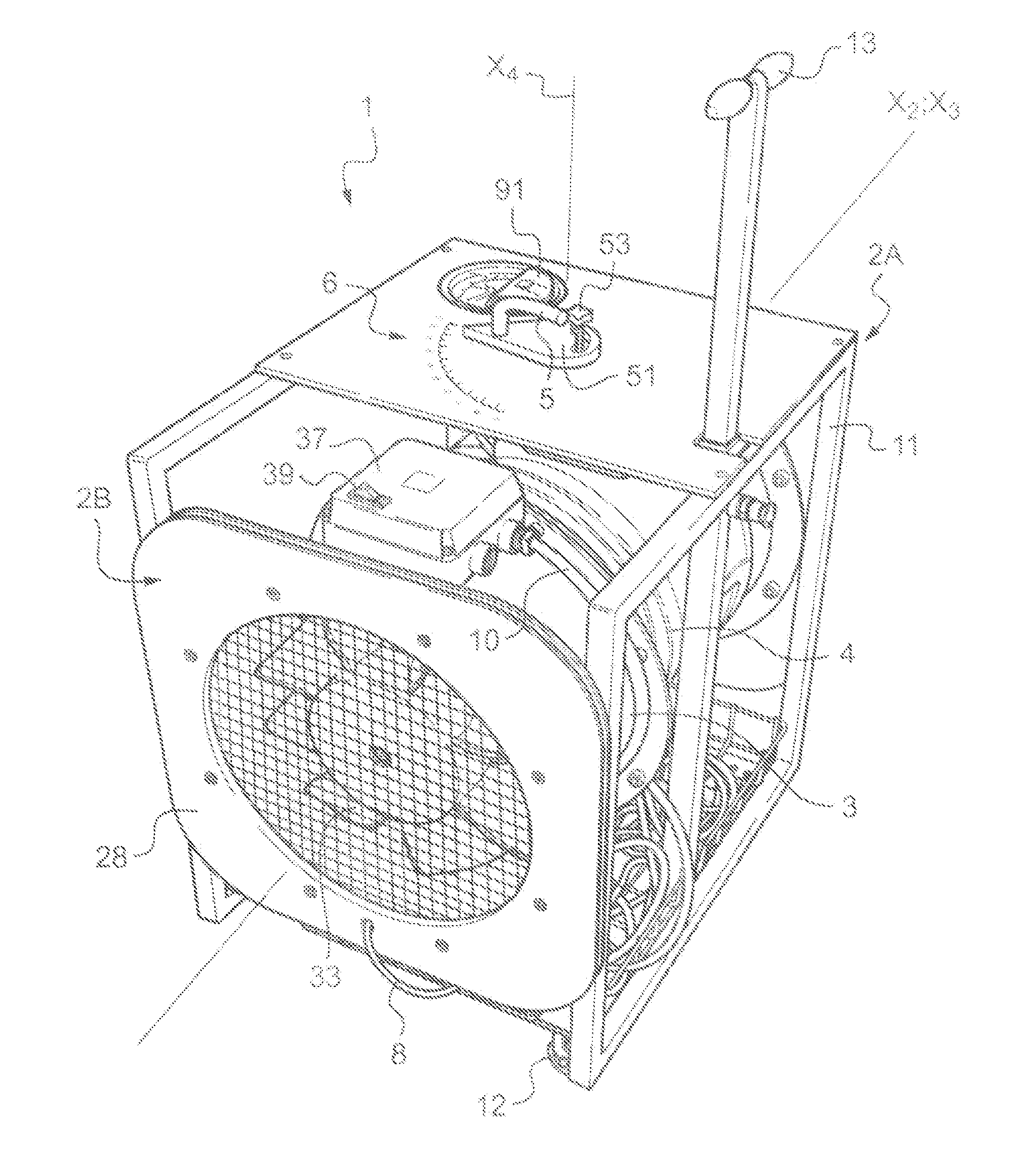

A device measuring air permeability of a building, including: an airtight duct, open at both its ends; a motorized fan; an air induction member positioned in the duct with its axis of rotation substantially parallel to a longitudinal axis of the duct; a mechanism measuring pressure difference between an inside of a part of the building and an outside of the building; an adjustable shut-off member shutting off the duct, and configured to vary locally cross section for air flow through the duct, the shut-off member being continuously adjustable between a configuration of minimal shutting-off of the duct and a configuration of complete shutting-off of the duct; and a mechanism determining a degree to which the duct is shut off by the shut-off member for a reference pressure difference determining, from the degree of shutting-off, either corresponding air flow rate through the duct, or a parameter representative of the air permeability.
First Claim
Other Claims data not available
