VAPOR PHASE GROWTH APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 14, 2013
app pub date -
Jan 18, 2012
filing date -
Feb 3, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

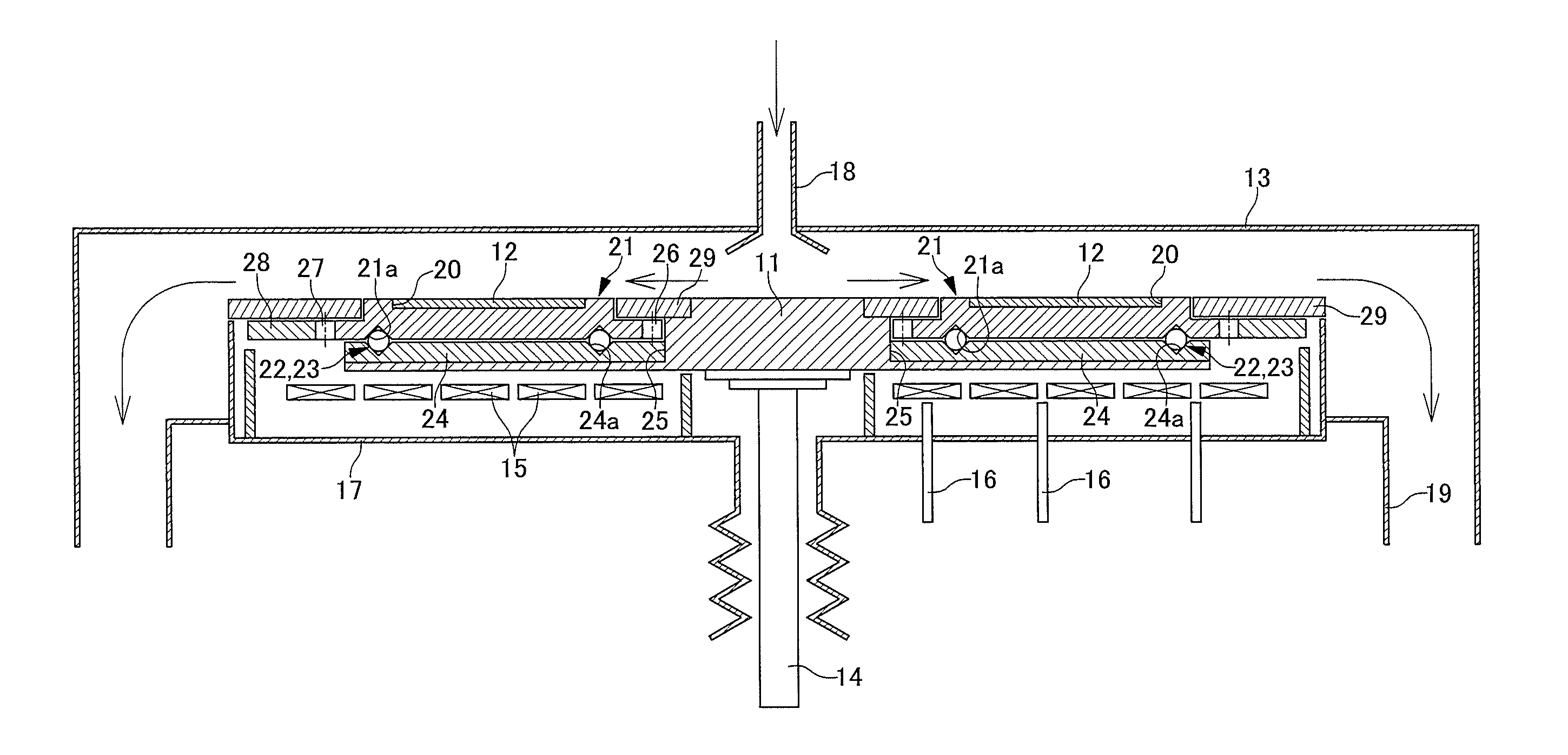

Provided is a vapor phase growth apparatus having a rotation/revolution mechanism by which a rolling member is prevented from riding onto an adjacent rolling member. In a vapor phase growth apparatus having a rotation/revolution structure in which a plurality of substrate retaining members 21 are rotatably provided in the circumferential direction of the susceptor via a rolling member(ball 22,23) on a susceptor 11, heated by a heating unit as well as is rotated by a driving unit, the substrate retaining member is rotated accompanied by the rotation of the susceptor and a substrate 12 retained by the substrate retaining member is rotated while being revolved with respect to the rotation axis of the susceptor. As for the rolling members, rolling members different diameters (a large diameter ball 22 and a small diameter ball 23) are alternately arranged.
First Claim
Other Claims data not available
