APPARATUS FOR PRODUCING POLYCRYSTALLINE SILICON AND METHOD THEREFOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 24, 2013
app pub date -
Sep 21, 2011
filing date -
Sep 30, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

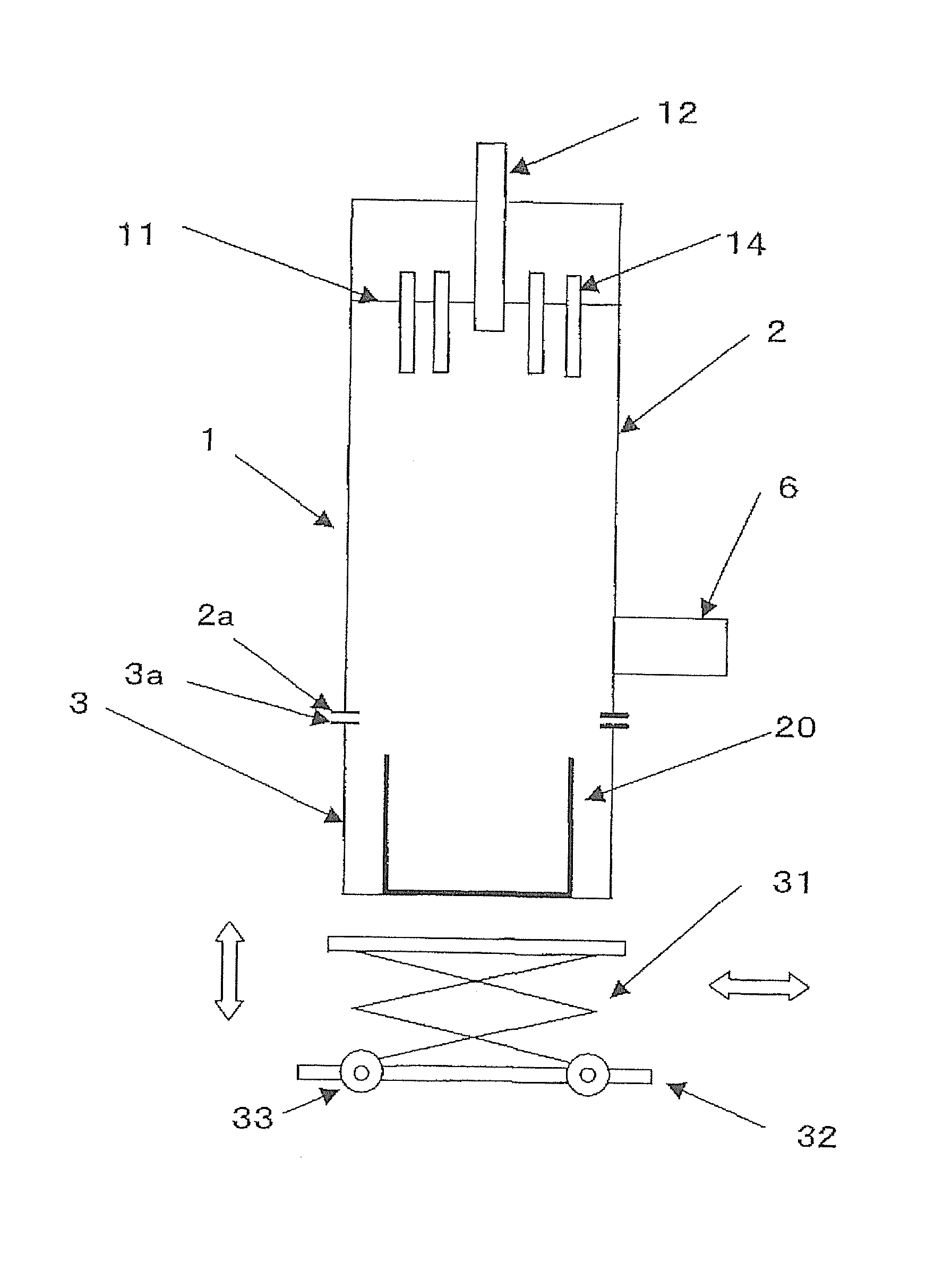

To provide an apparatus for producing polycrystalline silicon and a method therefor to allow improvement in efficiency of polycrystalline silicon production by minimizing reactor downtime and to allow polycrystalline silicon production at a relatively low cost and in a large amount in a zinc reduction process for recovering formed silicon in a solid state. In a silicon producing apparatus for producing polycrystalline silicon by reducing silicon tetrachloride with zinc, vertical reactor 1 has reactor upper body 2 and reactor lower body 3 that can be vertically detached, and reactor lower body 3 is movable in up-and-down and left-right directions.
First Claim
Other Claims data not available
