FREEZER SLIDE RACK ALIGNMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 17, 2013
app pub date -
Apr 17, 2012
filing date -
Apr 17, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

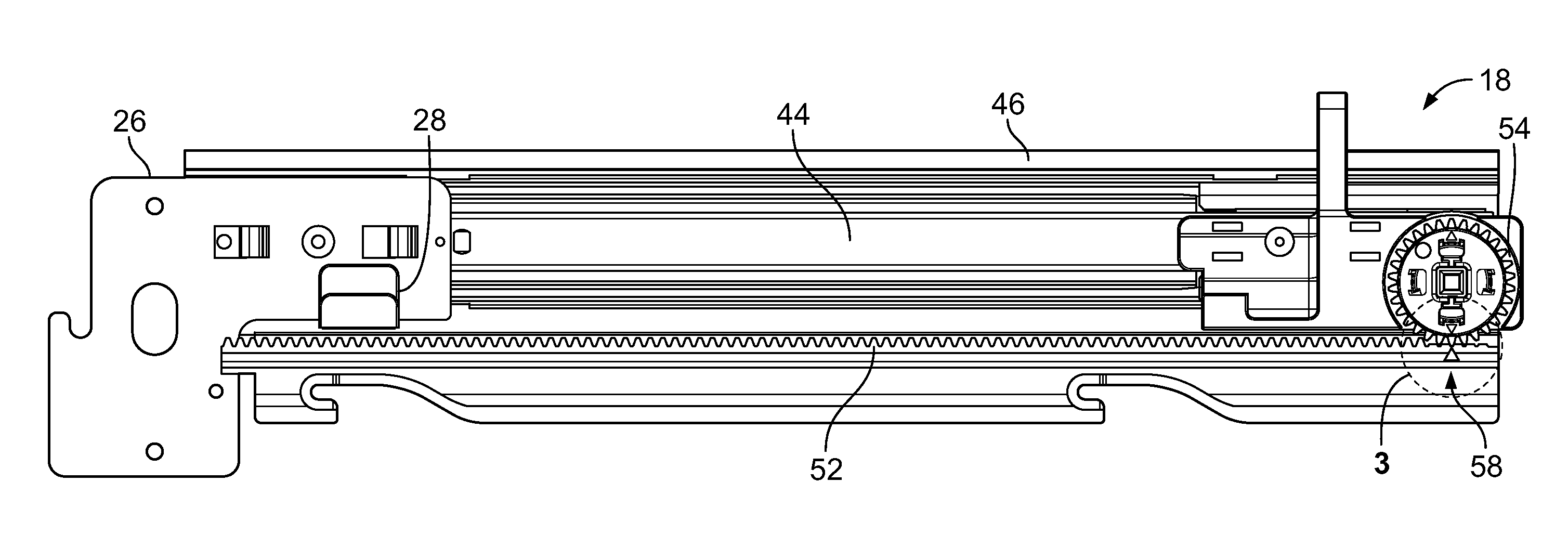

A drawer assembly for an enclosure includes a first rack, a second rack and a drawer. Each of the racks includes a first set of teeth provided longitudinally along thereof. A drawer is configured to be movable in and out of the enclosure and includes a first pinion and a second pinion rotatably coupled near a first face and a second face respectively. The pinions include a second set of teeth provided circumferentially. The first pinion and the second pinion are configured to rotate along the first rack and the second rack respectively through engagement of the second set of teeth with the first set of teeth. Each of the first rack and the second rack includes an alignment area provided at a front portion and a rear portion thereof, and the alignment area includes a third set of teeth shorter in height than the second set of teeth.
