GLOW PLUG WITH A PLUG BODY FORMED OF MULTIPLE TUBES END TO END
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 17, 2013
app pub date -
Dec 21, 2011
filing date -
Dec 22, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

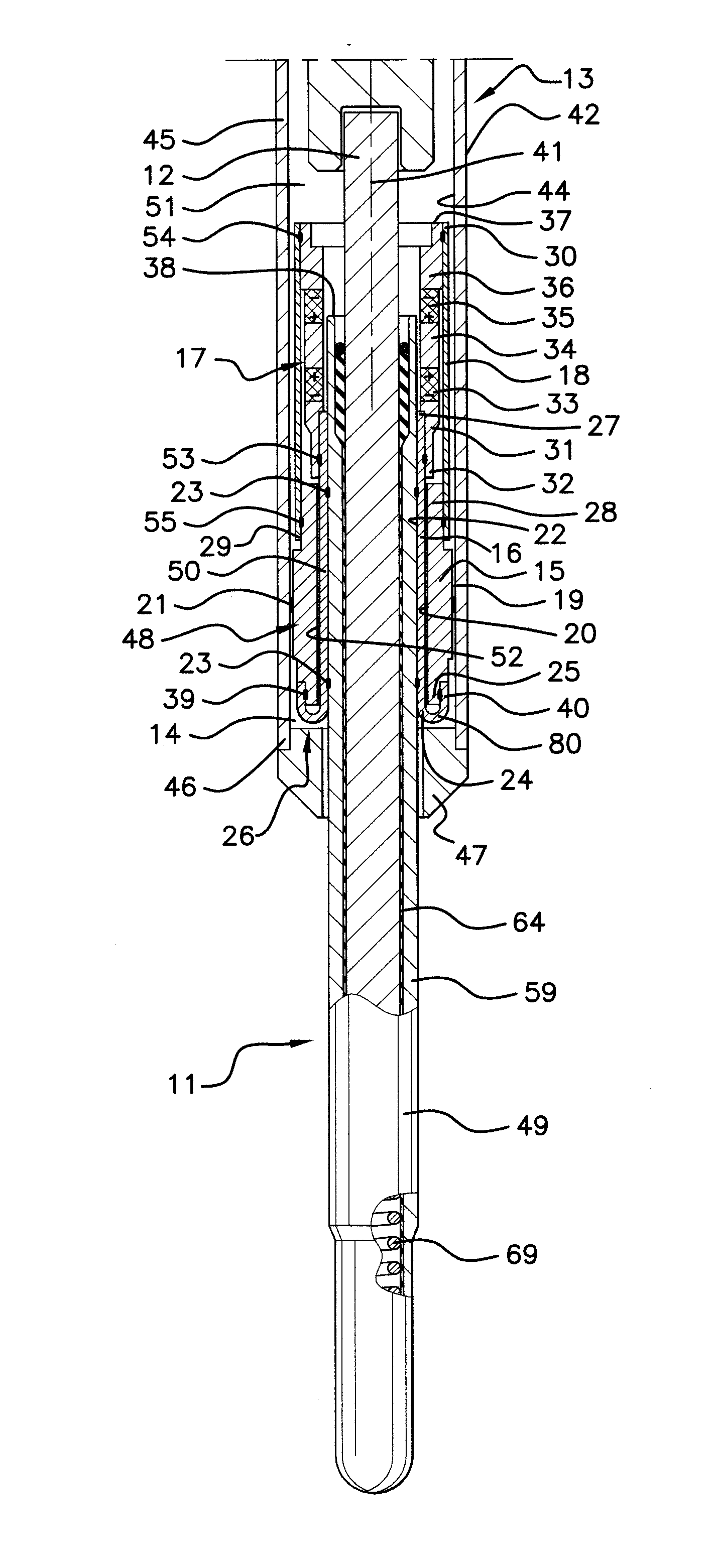

A glow plug includes a heating rod (11), a plug body (13), a mounting device (48) for mounting the heating rod, permitting axial translation movements of the heating rod relative to the plug body and ensuring impermeability between the heating rod and the plug body, and a load sensor (17) which is interposed in a proximal zone between the heating rod and the plug body. The plug body is composed of multiple distinct metal tubes (45, 95) which are rigidly assembled and extend each other axially, including, around the mounting device and the load sensor, a metal distal tube (45) extending a metal proximal tube (95), the distal tube having a lesser thickness than that of the proximal tube.
First Claim
Other Claims data not available
