MECHANICAL MOTION SYSTEM FOR ENERGY GENERATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 12, 2013
filing date -
Mar 30, 2012
priority date (Note) -
Published
status (Latency Note)
Importance

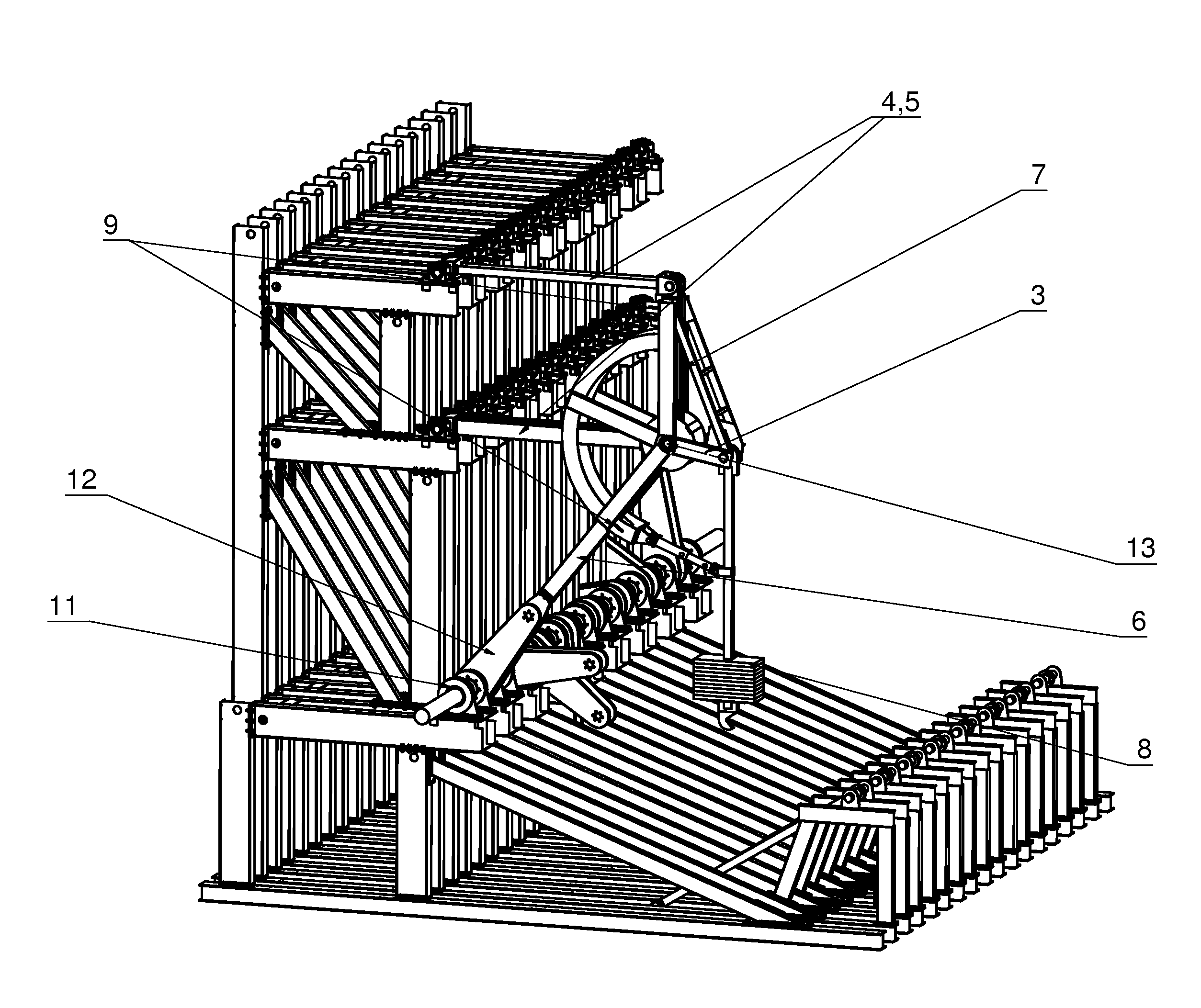

Abstract
Objective—Create a mechanical system to manage the gravitational force exerted on a series of weights; with the ultimate goal of transferring this force to turn a shaft. The system consists of a fixed base and 2 types of mechanical modules. The modules are arranged side-by-side along a crankshaft. One module type consists of rods connected to a crankshaft. Two arms are connected to the fixed structure and to a third arm. All are connected to a central shaft by a connecting rod. A second type of module consists of a support arm for the weight connected to the central axis. The length of the support arm is variable. The arm is held in position by a pin which is pulled at the precise moment; altering the length of the arm. This shifts the center of gravity and drives the crankshaft. The altering of the arms' lengths is synchronized.
First Claim
Other Claims data not available
