SEMICONDUCTOR LASER DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 15, 2013
filing date -
Mar 22, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

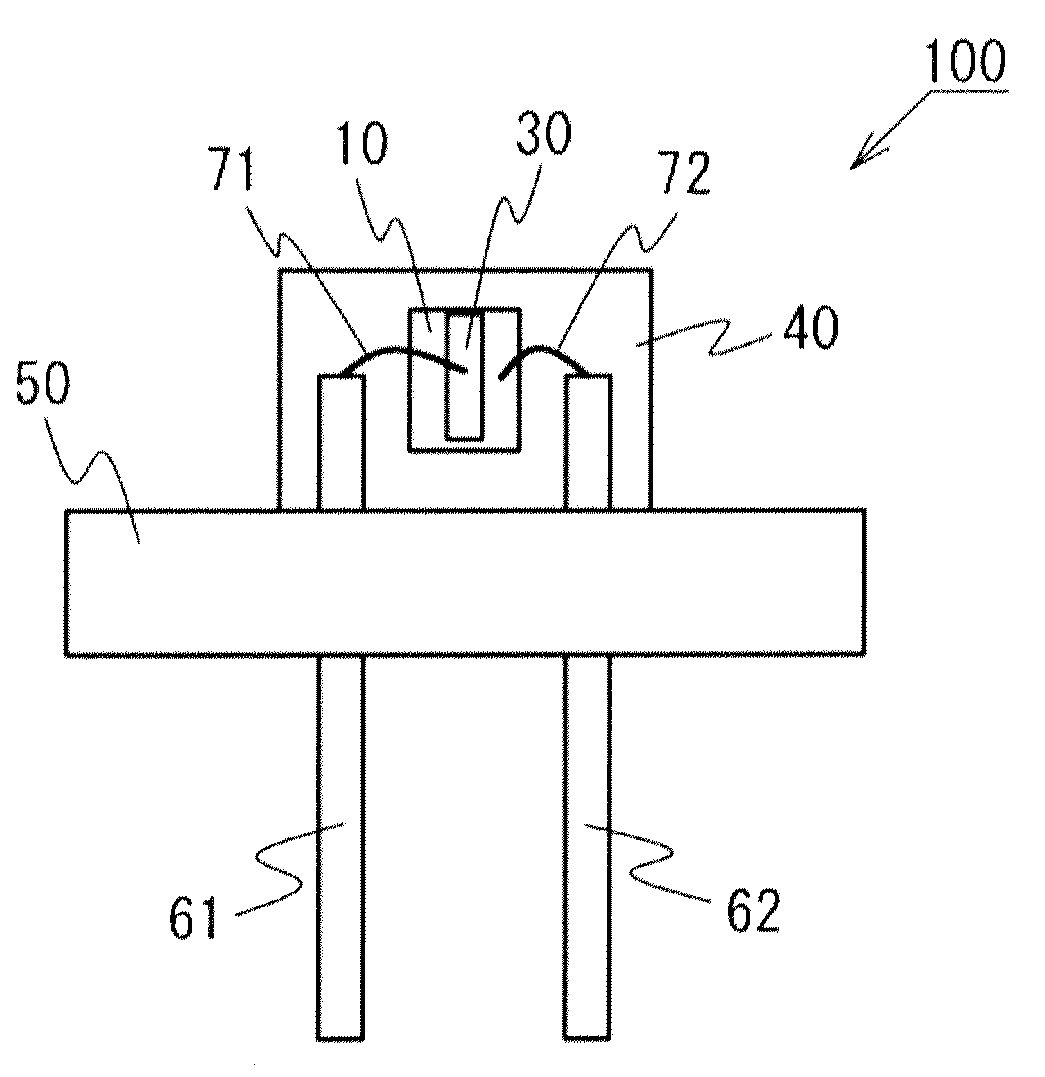

A semiconductor laser device comprises a base, a first conductive layer, a second conductive layer, a third conductive layer, and a semiconductor laser chip in this order, each of which has a respective emitting-side end portion. The emitting-side end portion of the first conductive layer is in a common plane with the emitting-side end portion of the base. A thickness of the second conductive layer is greater than a thickness of the first conductive layer. The emitting-side end portion of the second conductive layer is disposed inward of the emitting-end portion of the first conductive layer. The emitting-side end portion of the third conductive layer is in a common plane with the emitting-side end portion of the second conductive layer. The emitting-side end portion of the semiconductor laser chip is disposed outward of the emitting-side end portion of the third conductive layer.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01S Class
- 3.07 % this patent is cited more than
- 12 Age
