HELICOPTER SKID TYPE LANDING GEAR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 26, 2013
app pub date -
Mar 11, 2013
filing date -
Mar 22, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

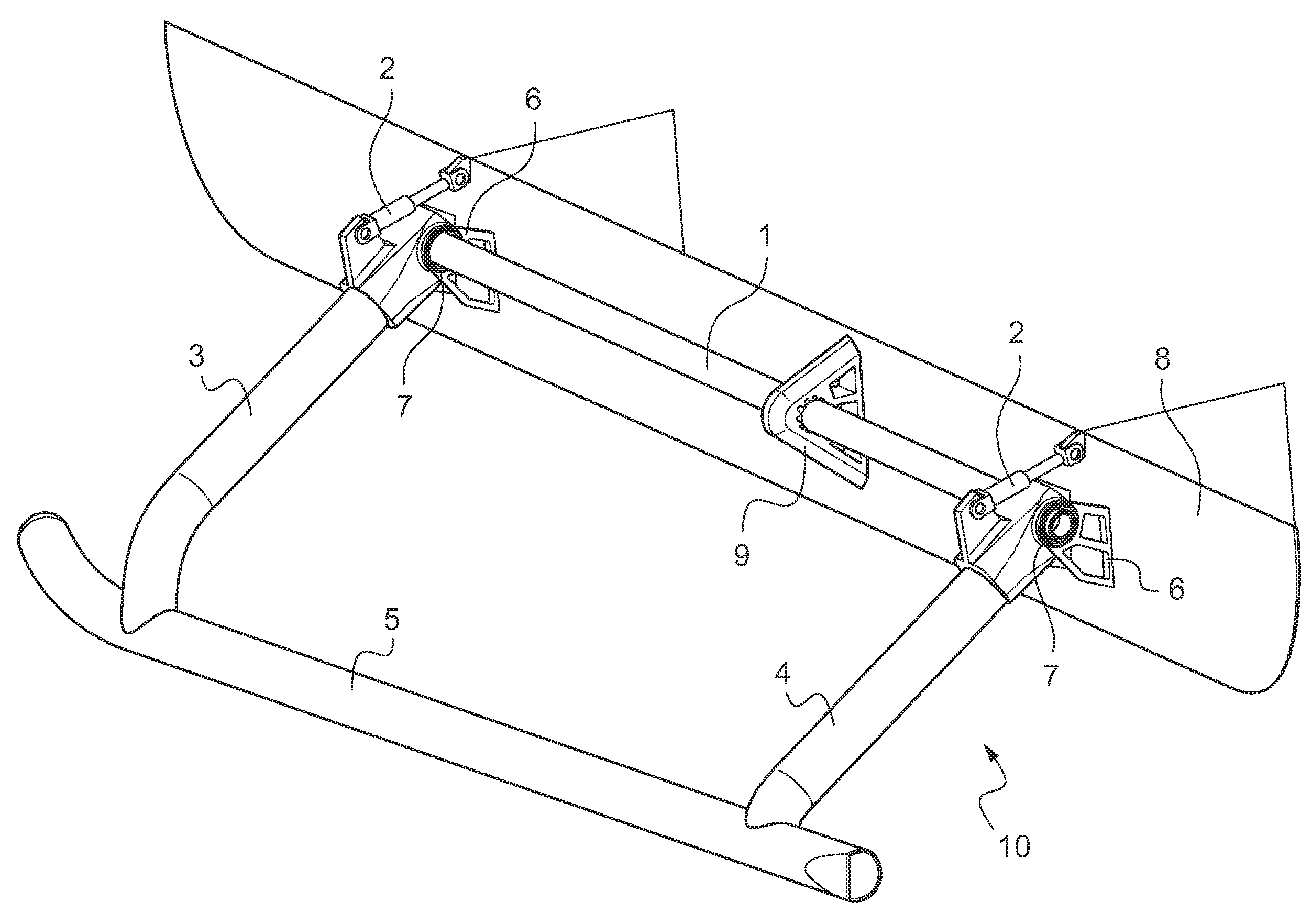

A helicopter with a fuselage and a skid-type landing gear mounted to said fuselage. Said landing gear comprises pivotable cross beams and skids, said skids being each disposed in an essentially longitudinal direction laterally on a respective side of the helicopter's landing gear. At least one discrete damper is provided for at least one pivotable cross beam, said discrete damper being connected with one end to the pivotable cross beam and with another end to the fuselage. The pivotable cross beam are of the cantilever type. Fixed bearings and floating bearings are provided at the fuselage. Torsion bar springs are mounted to said fixed bearings and said floating bearings, said respective inner end of at least one pivotable cantilever cross beam being attached to said torsion bar spring at the floating bearing in such a manner that moments are transferred from the respective inner end of each pivotable cantilever cross beam via said torsion bar spring to the fuselage at said fixed bearing.
First Claim
Other Claims data not available
