LARGE-AREA BROADBAND SURFACE-WAVE ANTENNA
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 19, 2013
app pub date -
Oct 6, 2011
filing date -
Oct 7, 2010
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

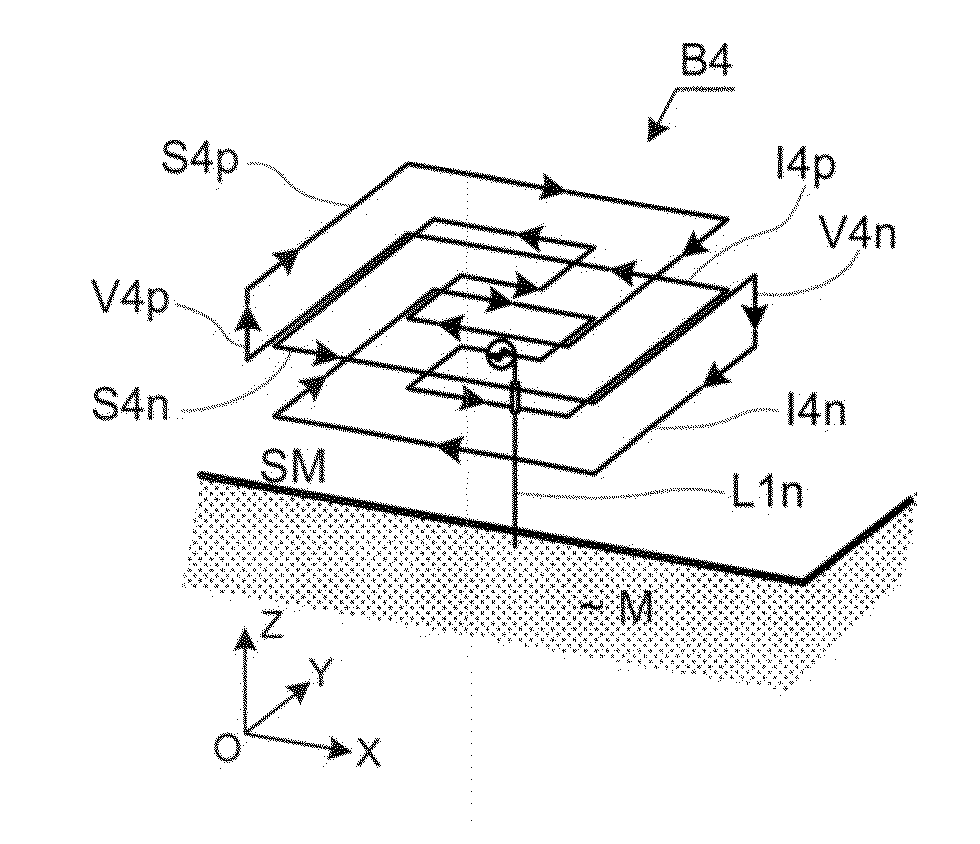

The antenna comprises a metal excitation loop (B1) to be positioned at a height (h) of at least about 1 above the surface (SM) of a conducting medium (M) and a supply means (A, L1n) to be connected to the conducting medium. The perimeter of the loop is about one half of the operating wavelength, namely λ/2, in length. The loop comprises two approximately parallel portions (I1p-I1n, S1) which are at most about λ/50 apart and are capable of extending approximately parallel to said surface in a plane approximately perpendicular to said surface, currents of opposite direction flowing through said portions. The closest portion to said surface includes an aperture between ends (E1p, E1n) of the loop that are connected to the supply means. The antenna is better protected from space waves and it can be reduced in size by being folded up.
First Claim
Other Claims data not available
