Process and Apparatus for Optimized Combination of Purification and Separation of MTO Reaction Gas Containing Catalyst Fine Powder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 19, 2013
app pub date -
Apr 13, 2011
filing date -
Nov 5, 2010
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

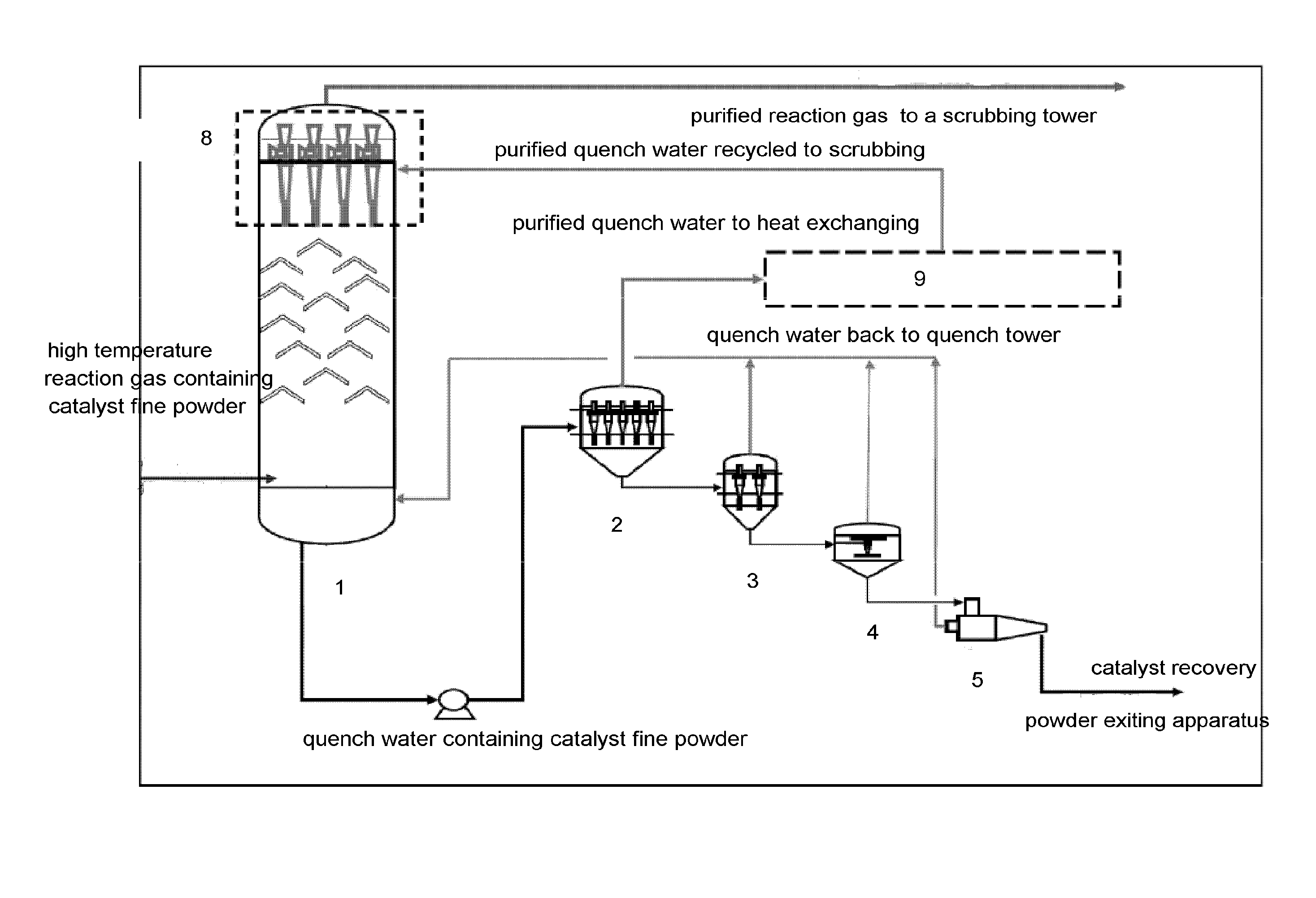

The invention relates to a process and an apparatus for optimized combination of purification and separation of MTO reaction gas containing catalyst fine powder. In particular, the invention provides a process for optimized combination of purification and separation of MTO reaction gas containing catalyst fine powder, comprising (a) scrubbing, purifying and cooling the MTO reaction gas containing catalyst fine powder, and separating and recovering the mist entrained in the scrubbed reaction gas and the catalyst fine powder that is not scrubbed off; (b) subjecting the scrubbing liquid containing catalyst fine powder to solid-liquid separation, and the purified scrubbing liquid after separation to repeated use after subsequent heat exchange and stripping treatment; and (c) subjecting the scrubbing liquid containing catalyst fine powder to solid-liquid separation, and further concentrating the scrubbing liquid containing catalyst fine powder after separation before the catalyst fine powder is finally recovered in solid form by centrifugal dewatering or drying. The invention also provides an apparatus for optimized combination of purification and separation of MTO reaction gas containing catalyst fine powder.
First Claim
Other Claims data not available
