Binding machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2015
Grant Date -
Sep 12, 2013
app pub date -
Apr 24, 2013
filing date -
Dec 23, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

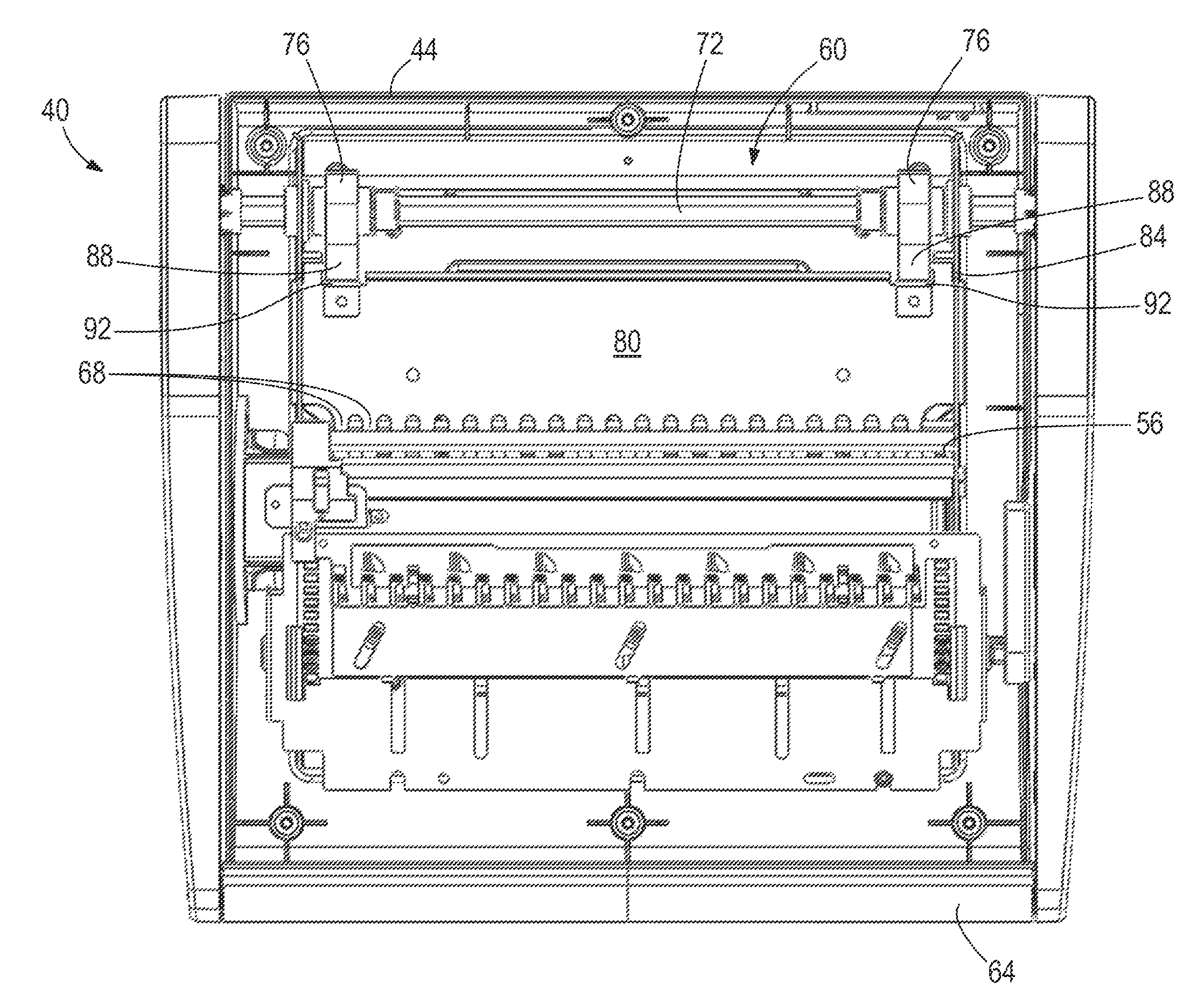

A binding machine includes a body, an actuator coupled with the body, and a punch mechanism housed in the body for punching a stack of sheets upon actuation of the actuator. The punch mechanism includes a plate including a plurality of punch pins. The punch pins are configured to punch through the stack of sheets during a punch stroke. A shaft is coupled with the actuator such that movement of the actuator causes rotation of the shaft. At least one cam is mounted on the shaft for rotation therewith. The cam is coupled with the plate to drive the plate in a punching direction. The cam includes a cam profile that dictates displacement of the plate in the punching direction relative to rotation of the shaft.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B26D Class
- 357 Applications Filed
- 309 Patents Issued To-Date
- 86.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B26D Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2027 |
