MEASUREMENT ARRANGEMENT FOR A COMPUTED TOMOGRAPHY SCANNER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 5, 2013
app pub date -
Oct 18, 2011
filing date -
Nov 10, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

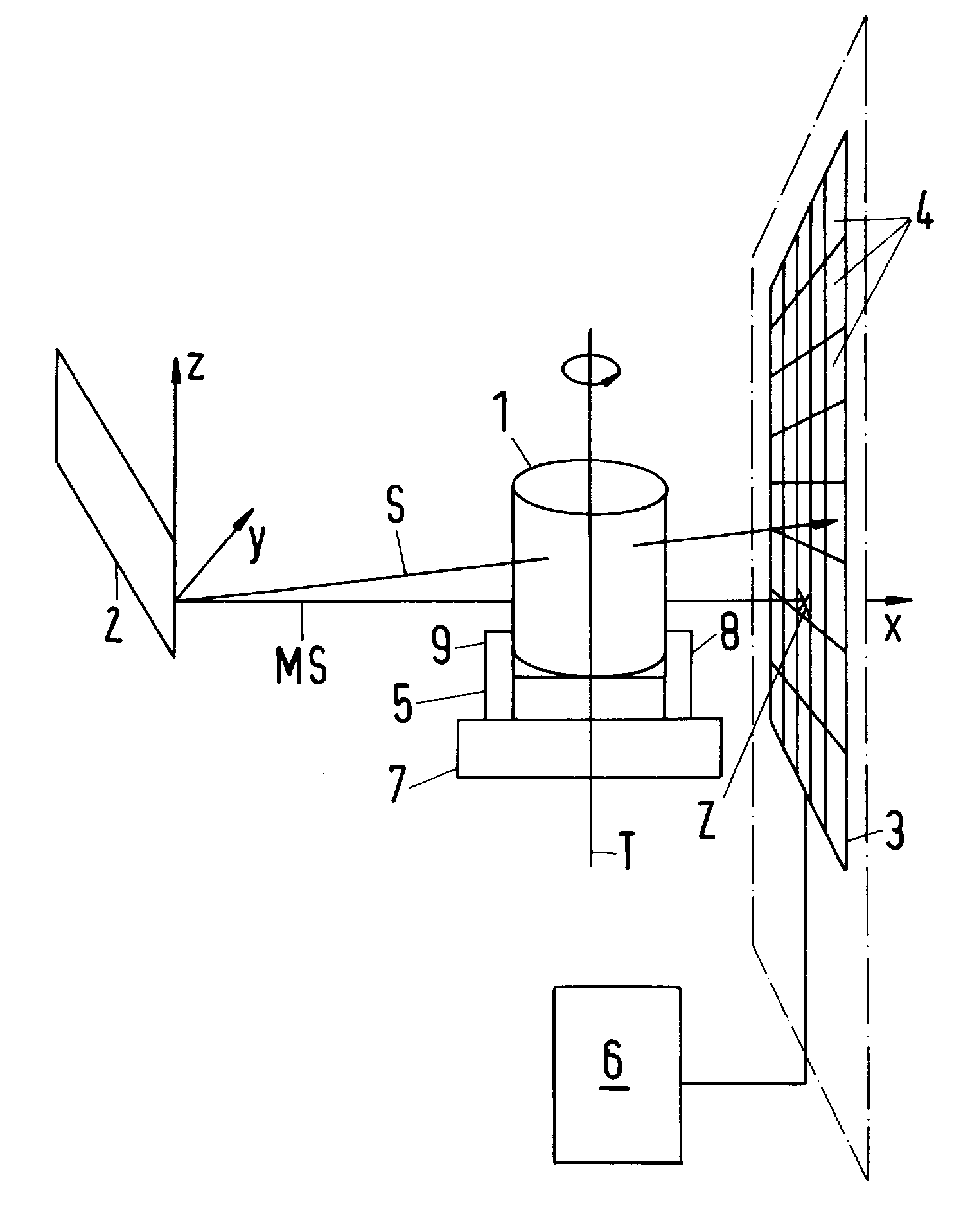

A method for operating a measurement arrangement for a computer tomograph. The measurement arrangement has a radiation source of invasive radiation and a flat image detector with scintillation layer and a photocell array of photocells for detection of radiation from the radiation source. A calibration object is arranged between the radiation source and the flat image detector, and at least one radiation image of the calibration object is recorded with the flat image detector. From known dimensions of the calibration object and from the at least one radiation image, a distortion error, which occurred as a result of a distortion of the flat image detector, is determined as a function of the location in the photocell array (device 6). In particular, a radiation image of an object to be measured, recorded with the flat image detector, is corrected on the basis of the determined distortion error.
First Claim
Other Claims data not available
