STEEL PLATE FOR PIPELINE, HAVING EXCELLENT HYDROGEN INDUCED CRACK RESISTANCE, AND PREPARATION METHOD THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 29, 2013
filing date -
Sep 29, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

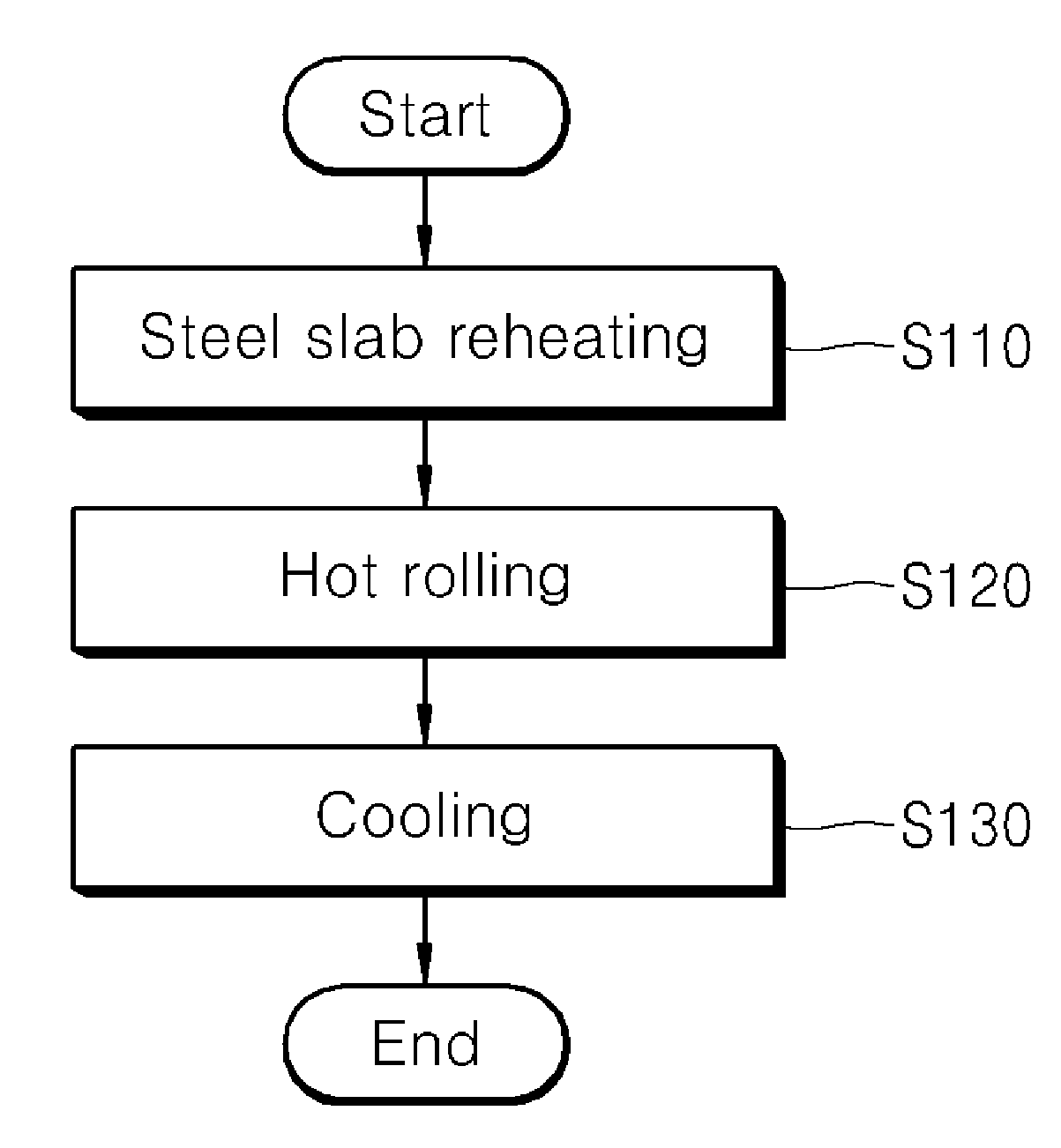

Disclosed are a steel plate for a line pipe having excellent hydrogen induced crack resistance with a tensile strength of 450 MPa or more, and a preparation method thereof. According to the present invention, the steel plate for a line pipe, having excellent hydrogen induced crack resistance comprises: 0.03-0.05 wt % of carbon (C); 0.2-0.3 wt % of silicon (Si); 0.5-1.3 wt % of manganese (Mn); 0.010 wt % or less of phosphorus (P); 0.005 wt % or less of sulfur (S); 0.02-0.05 wt % of aluminum (Al); 0.2-0.5 wt % of nickel (Ni); 0.2-0.3 wt % of chromium (Cr); 0.03-0.05 wt % of niobium (Nb); 0.02-0.05 wt % of vanadium (V); 0.01-0.02 wt % of titanium (Ti); 0.001-0.004 wt % of calcium (Ca); and a balance of iron (Fe) and inevitable impurities, and has a tensile strength of 450 MPa or more.
First Claim
Other Claims data not available
