ROTOR FOR MODULATED POLE MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 29, 2013
app pub date -
Sep 14, 2011
filing date -
Sep 17, 2010
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

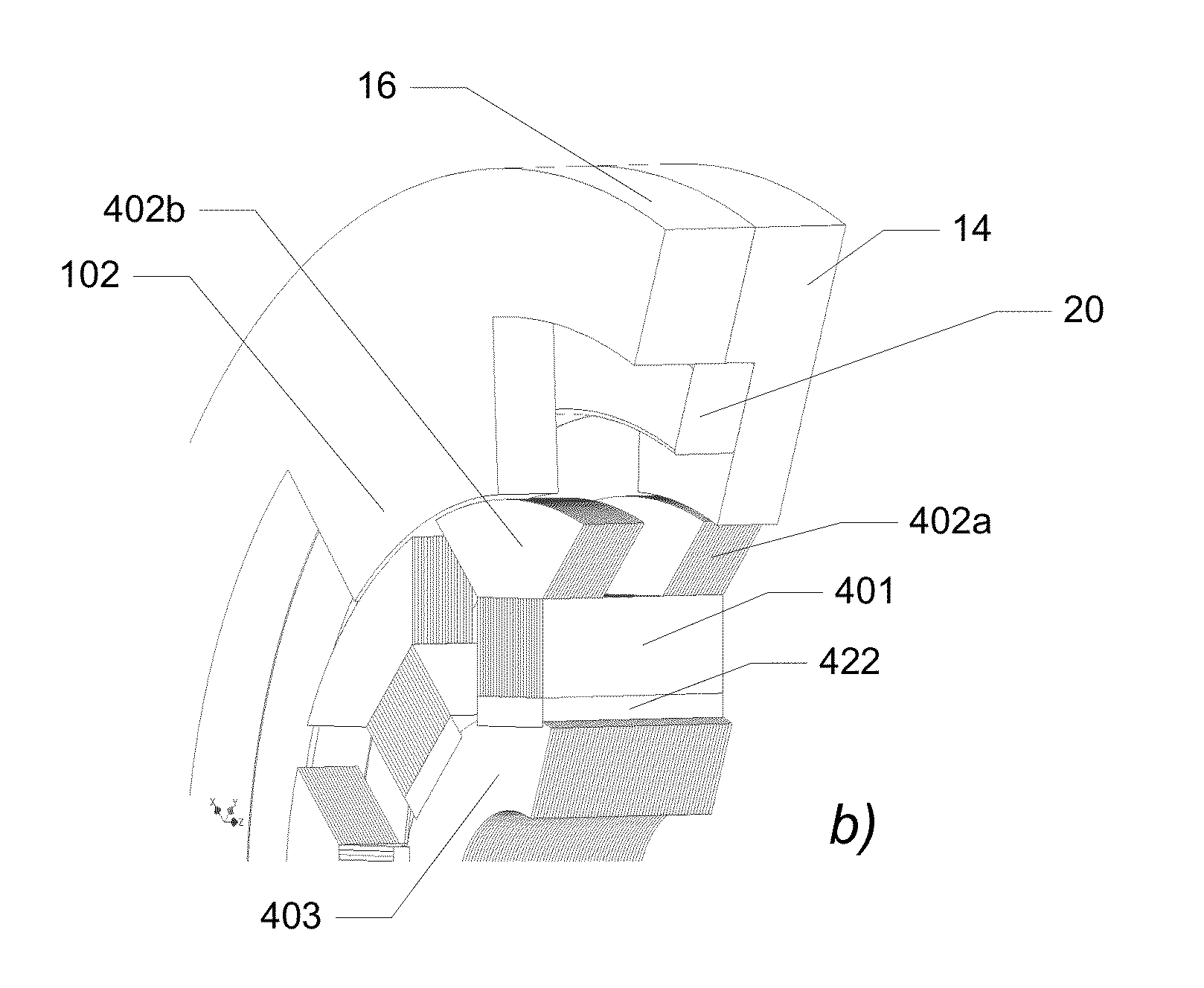

A rotor for an inner-rotor modulated pole machine, the rotor being configured to generate a rotor magnetic field for interaction with a stator magnetic field of a stator of the modulated pole machine, wherein said rotor is adapted to rotate around a longitudinal axis of the rotor; wherein the rotor comprises a plurality of permanent magnets arranged circumferentially around the longitudinal axis, each permanent magnet being magnetised in a direction of magnetisation so as to generate a magnetic flux; a plurality of axial flux guiding members each adapted to provide an at least two-dimensional flux path for the magnetic flux generated by a respective one of the plurality of permanent magnets; a support structure comprising an inner tubular support member arranged radially inward of the plurality of permanent magnets; and at least one outer flux guiding member adapted to provide a path in at least a radial direction.
First Claim
Other Claims data not available
