METHOD AND DEVICE FOR PRODUCING A SEMI-FINISHED WEB AND METHOD FOR PRODUCING A COMPOSITE MATERIAL

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20130217558A1
SERIAL NO

13492206

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

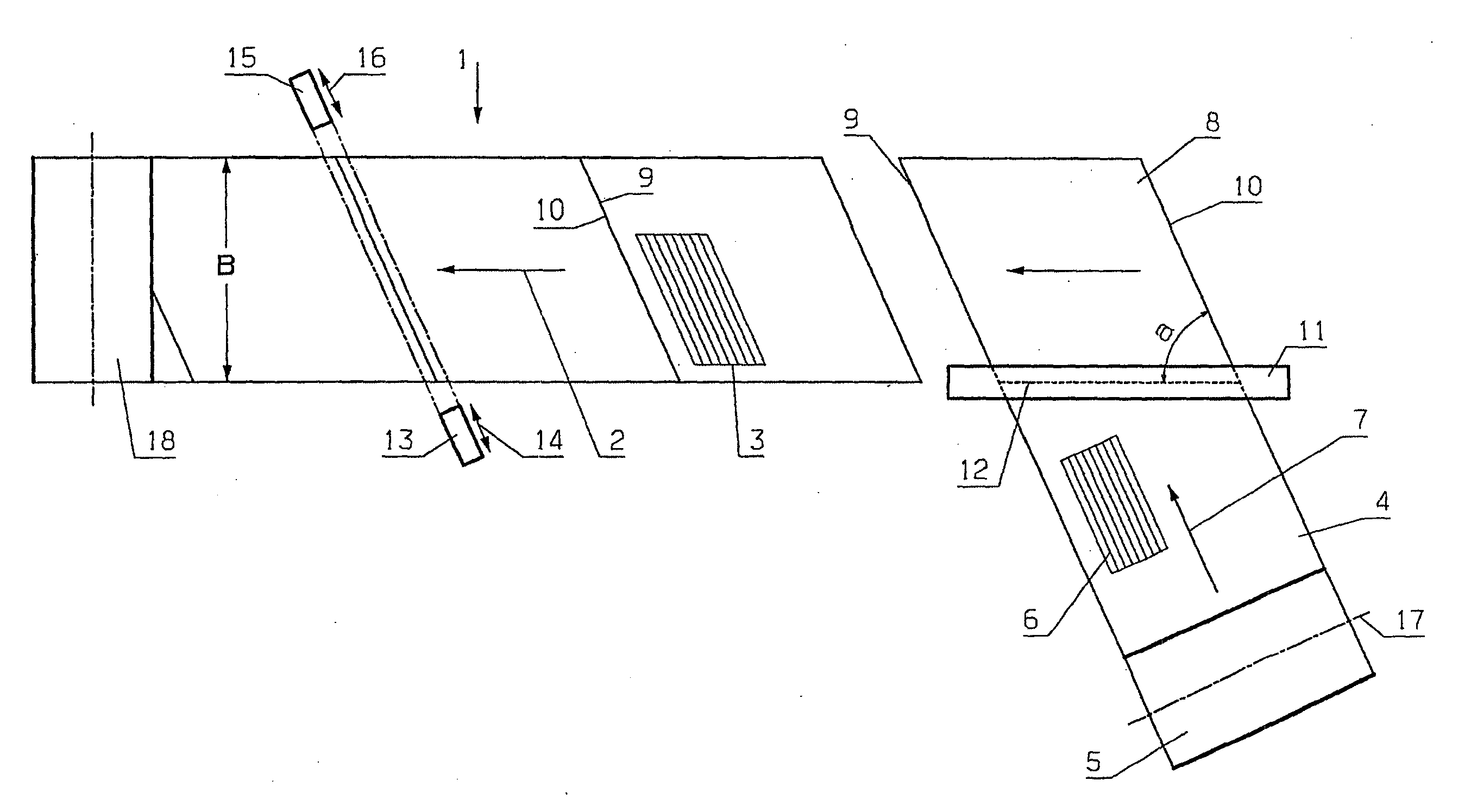

Method and device for producing a semi-finished web having a longitudinal direction, a plastic matrix, and a plurality of fibers fixed in a unidirectionally oriented manner enclosing a predetermined angle (a) greater than 0° to the longitudinal direction. The method includes supplying a web having a main direction, a plastic matrix, and a plurality of fibers fixed in a unidirectionally oriented manner enclosing an angle of about 0° to the main direction, separating segments from the supplied web, arranging the separated segments next to one another so that longitudinal edges of adjacent segments are parallel to the main direction and to one another, and enclose the predetermined angle (a) to the longitudinal direction, and connecting the adjacent segments in a region of their longitudinal edges.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
KARL MAYER MALIMO TEXTILMASCHINENFABRIK GMBH09117 CHEMNITZ

International Classification(s)

loading....
  • 2012 Application Filing Year
  • B31B Class
  • 217 Applications Filed
  • 125 Patents Issued To-Date
  • 57.61 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20122013201420152016201720182019202020210255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
GLÖCKNER, René Eppendorf, DE 3 3
PANDER, Lutz Chemnitz, DE 3 5
