MULTILAYER PET TOY AND METHOD OF MAKING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 22, 2013
app pub date -
Feb 20, 2012
filing date -
Feb 20, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

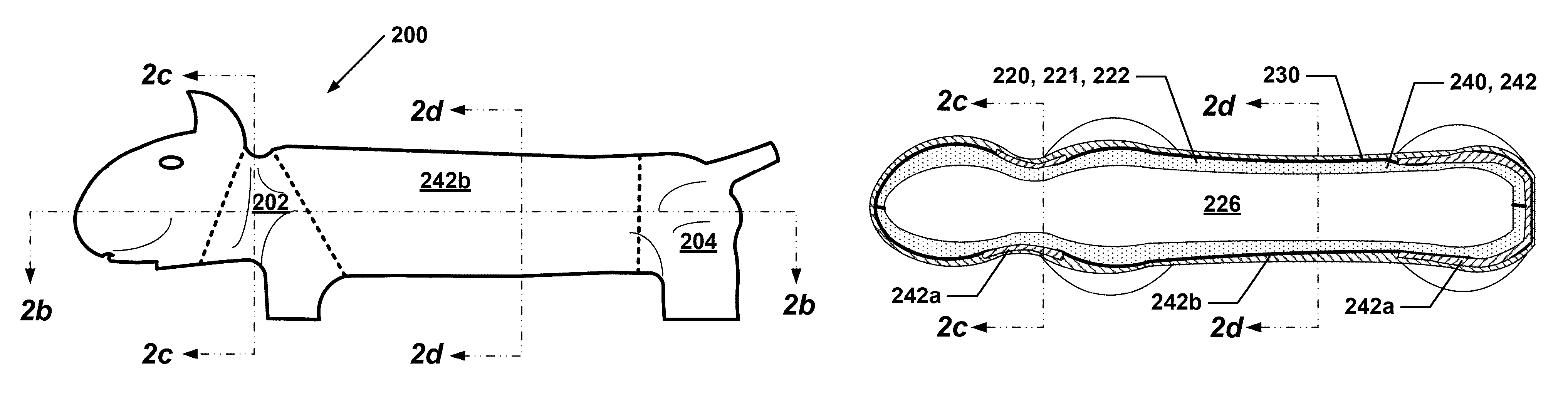

A multilayer pet toy has an inner structure having an inner-structure resilient material; an outer structure joined to the inner structure, the outer structure having a first layer having a first sandwich structure, the first sandwich structure having an outer-structure resilient material and a non-resilient material. Therein, the inner structure resilient material includes a first rubber compound that has a percentage of 30% or less by weight of natural rubber and a remainder being filler. The outer-structure resilient material includes a second rubber compound that has a percentage of 44% or more by weight of natural rubber and a remainder being filler.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A01K Class
- 5.80 % this patent is cited more than
- 12 Age
