Planar Transformers

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20130207767A1
SERIAL NO

13703915

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

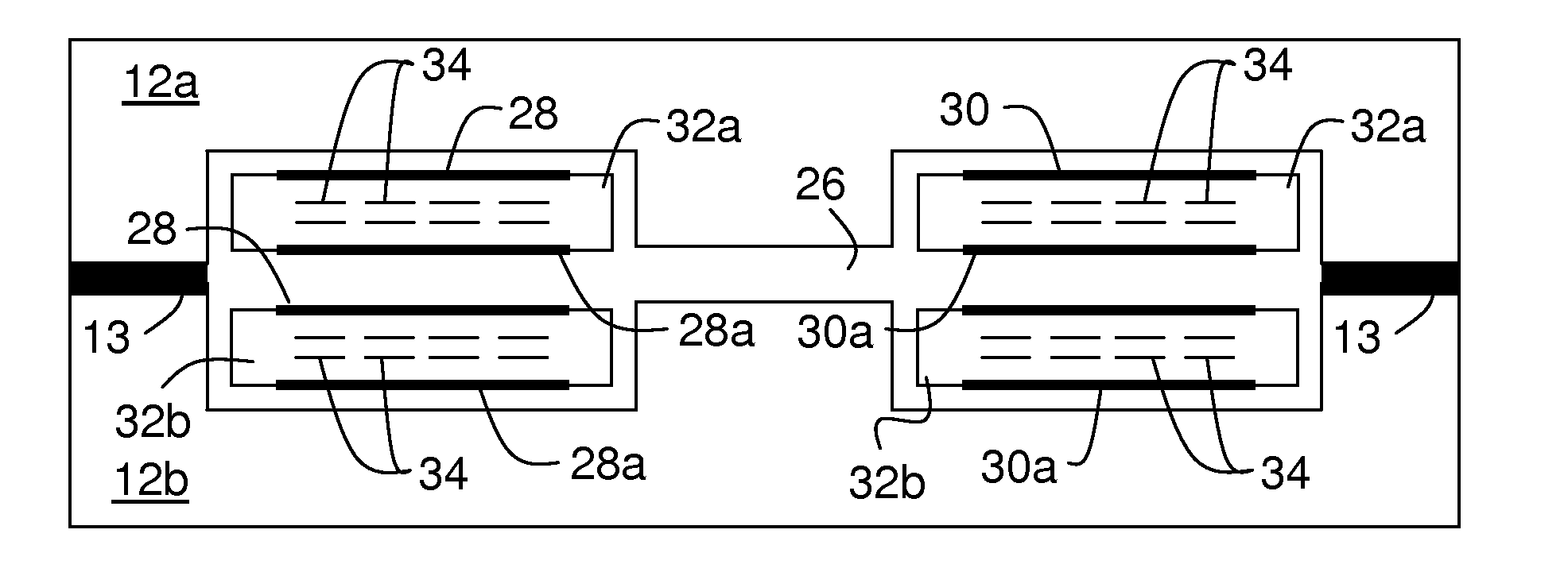

A planar transformer comprises a plurality of conductive windings provided by at least one PCB and linked by a common ferrite core passing through the or each PCB. The transformer windings are at least partially magnetically shielded from the ferrite core by a conductive non-continuous shield formed by copper planed areas on one or more of the PCB layers to improve the coupling between the windings.

First Claim

See full text

Other Claims data not available
