Toothless Link Chain with Asymmetric Link Plates
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 1, 2013
app pub date -
Jan 30, 2013
filing date -
Jan 31, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

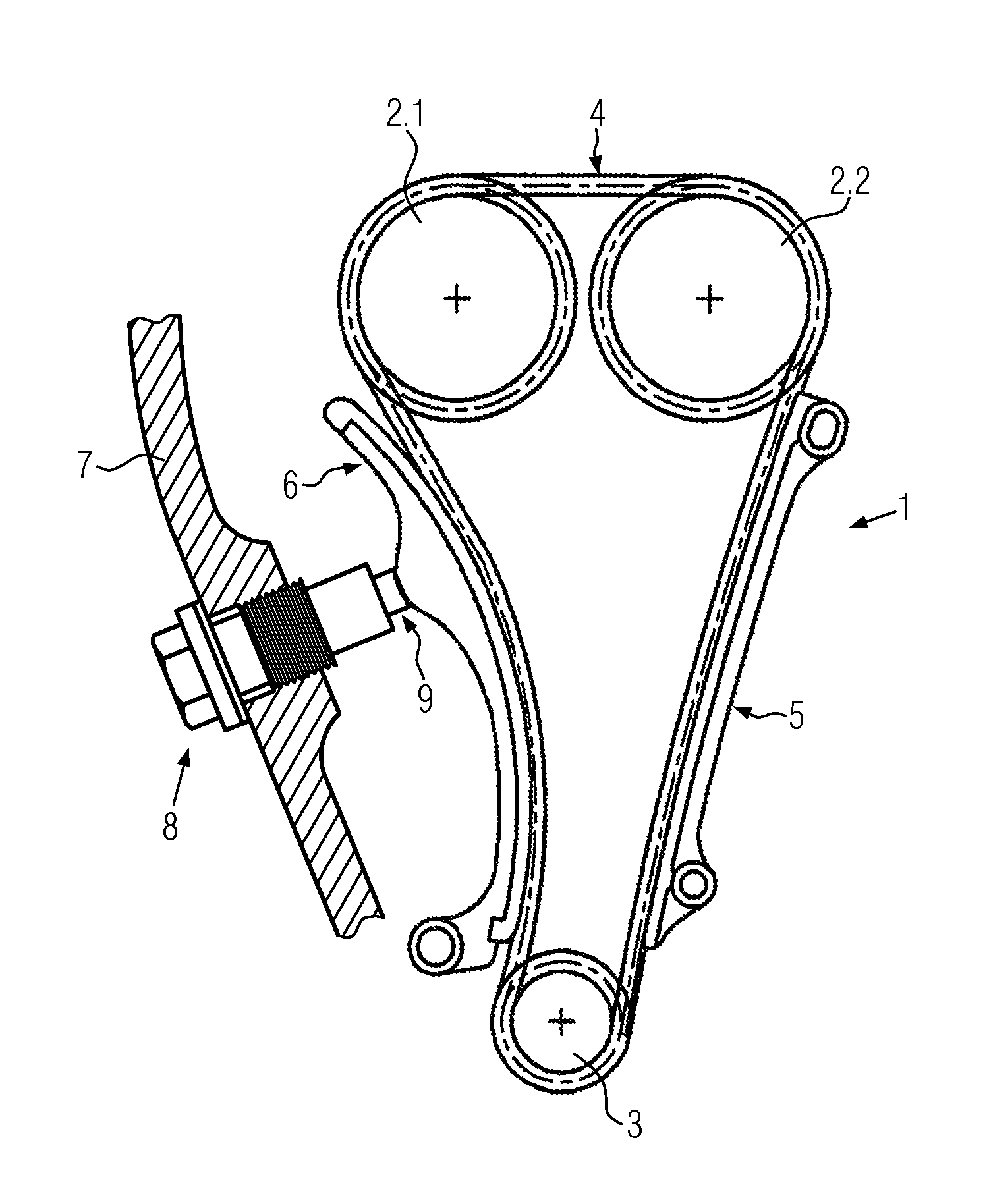

The invention refers to a toothless link chain with alternating chain links, wherein inner and outer link plates of the chain links have a substantially identical height profile. The link plate backs of the inner or outer link plates, which are brought into contact with a guide rail, have an at least partial height offset to the link plate backs of the other link plates. A connecting line through the center points of the joint openings of each link plate divides the corresponding link plate into a first link plate section located above and a second link plate section located below the connecting line, where said second link plate section is asymmetric to the first link plate section, at least with respect to the height profile, and wherein the inner link plates are assembled at a 180° rotation.
First Claim
Other Claims data not available
