METHOD FOR PRODUCING PELLETS FROM FIBER COMPOSITE MATERIALS AND CARBON FIBER CONTAINING PELLET
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 17, 2012
filing date -
Feb 17, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

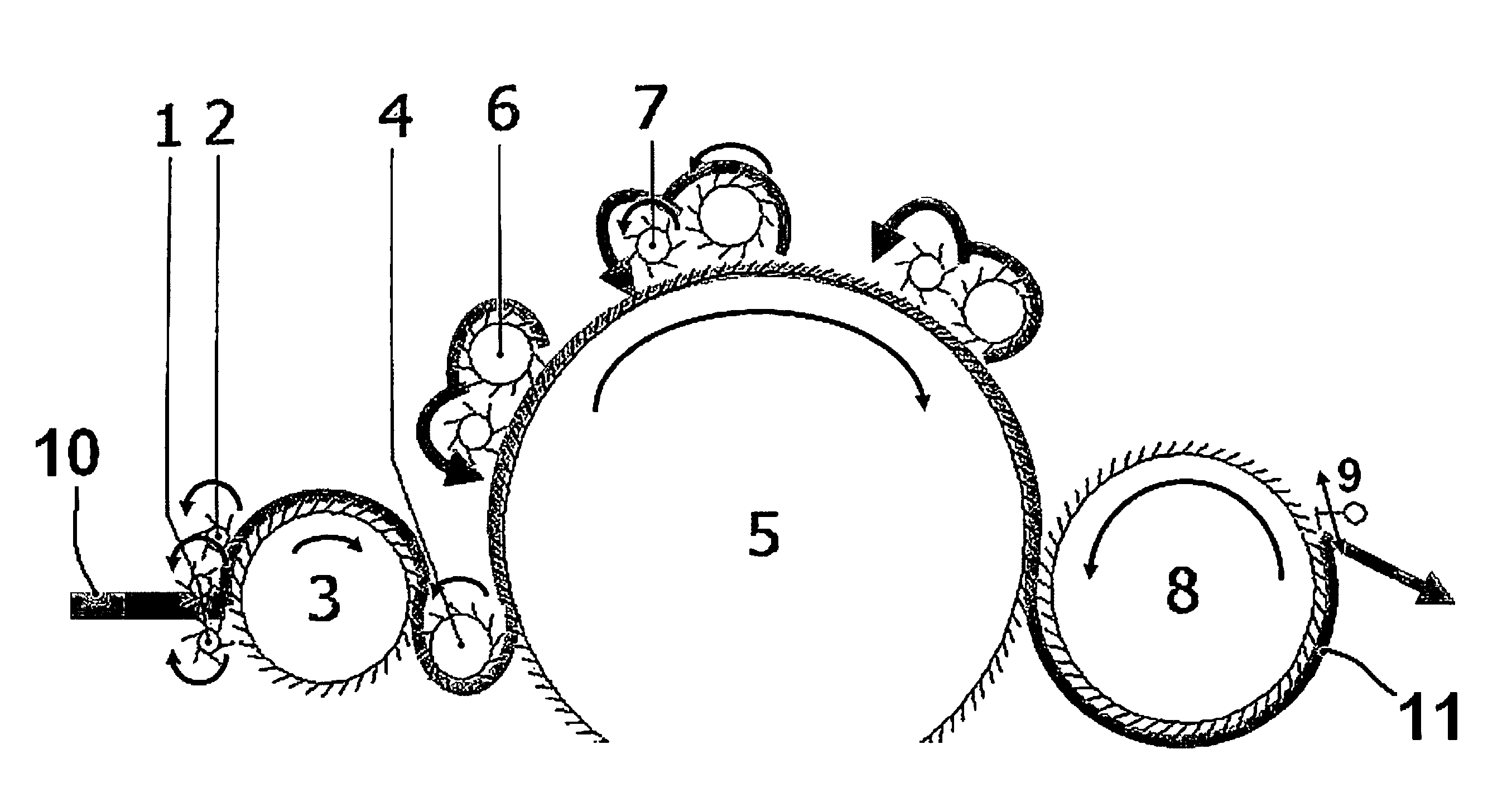

A method produces pellets from fiber composite materials suitable for further processing in a plastics finishing method. The pellets contain individual carbon fibers, carbon fiber bundles, or a mixture thereof and at least one thermoplastic matrix material. The carbon fibers, carbon fiber bundles, or a mixture thereof are isolated from waste or used parts that contain carbon fiber, laid flat together with the thermoplastic matrix material, compressed into a sheet material under the effect of heat, and subsequently cooled and comminuted into pellets, platelets, or chips. This enables the use of carbon fibers, from production waste components, as reinforcing fibers, whereby an inexpensive raw material is provided and the carbon fibers that are contained in the waste materials are recycled. The final carbon fibers are brought into a pourable and readily meterable form and can be used as raw materials for extrusion or injection molding for example.
First Claim
Other Claims data not available
