Small area high performance cell-based thermal diode
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 5, 2016
Grant Date -
Aug 1, 2013
app pub date -
Mar 23, 2012
filing date -
Jan 31, 2012
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

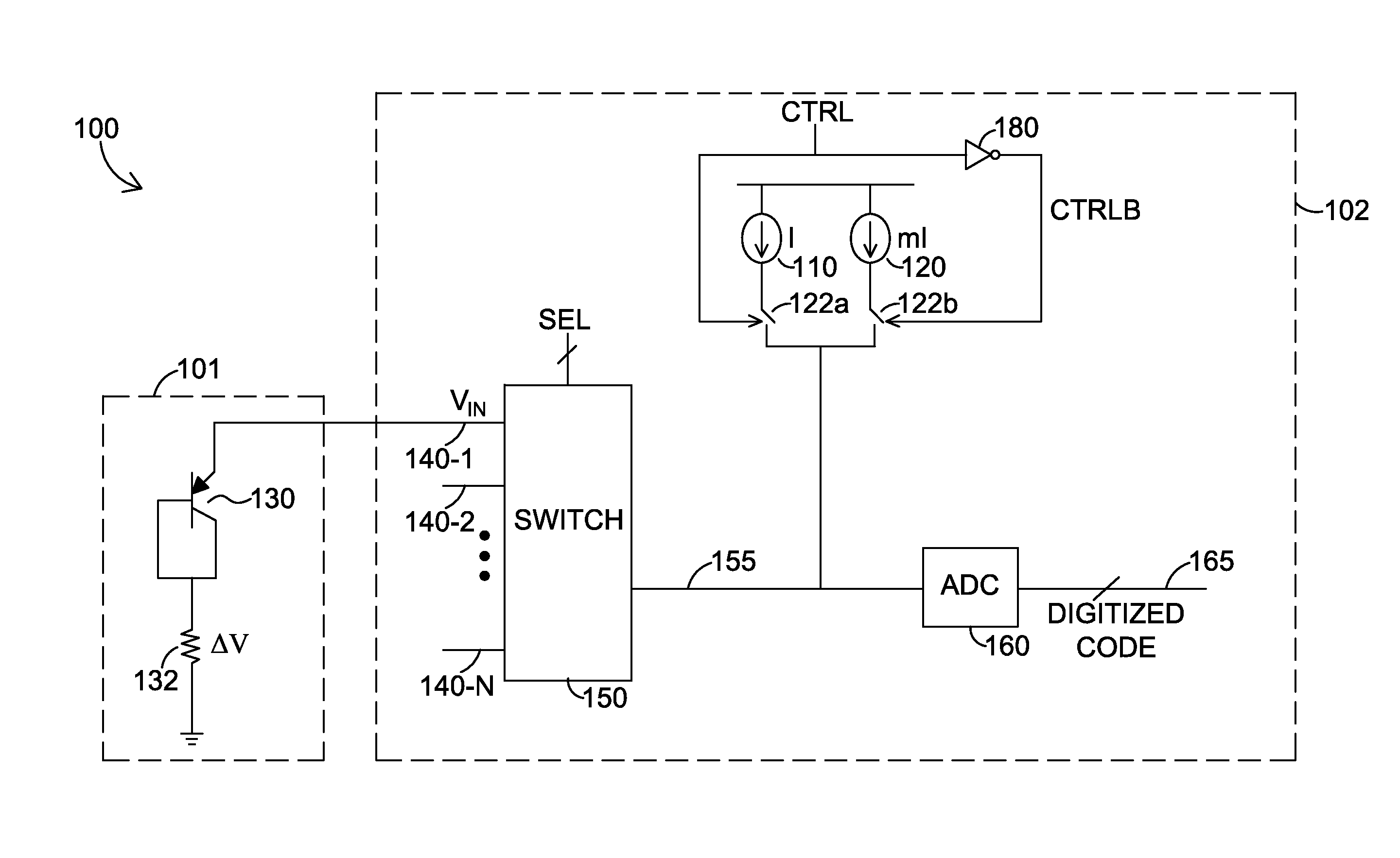

A thermal sensing system includes a circuit having a layout including standard cells arranged in rows and columns. First and second current sources provide first and second currents, respectively. The thermal sensing system includes thermal sensing units, first and second switching modules, and an analog to digital converter (ADC). Each thermal sensing unit is configured to provide a voltage drop dependent on a temperature at that thermal sensing unit. The first switching module is configured to select one of the thermal sensing units. The second switching module includes at least one switch controllable by a control signal. The at least one switch is configured to selectively couple the thermal sensing units, based on the control signal, to one of the first and second current sources, via the first switching module. The ADC is configured to convert an analog voltage, provided by the selected thermal sensing unit, to a digital value.
