METHOD FOR PROVIDING WIRELESS VEHICLE ACCESS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 1, 2013
app pub date -
Aug 5, 2011
filing date -
Aug 16, 2010
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

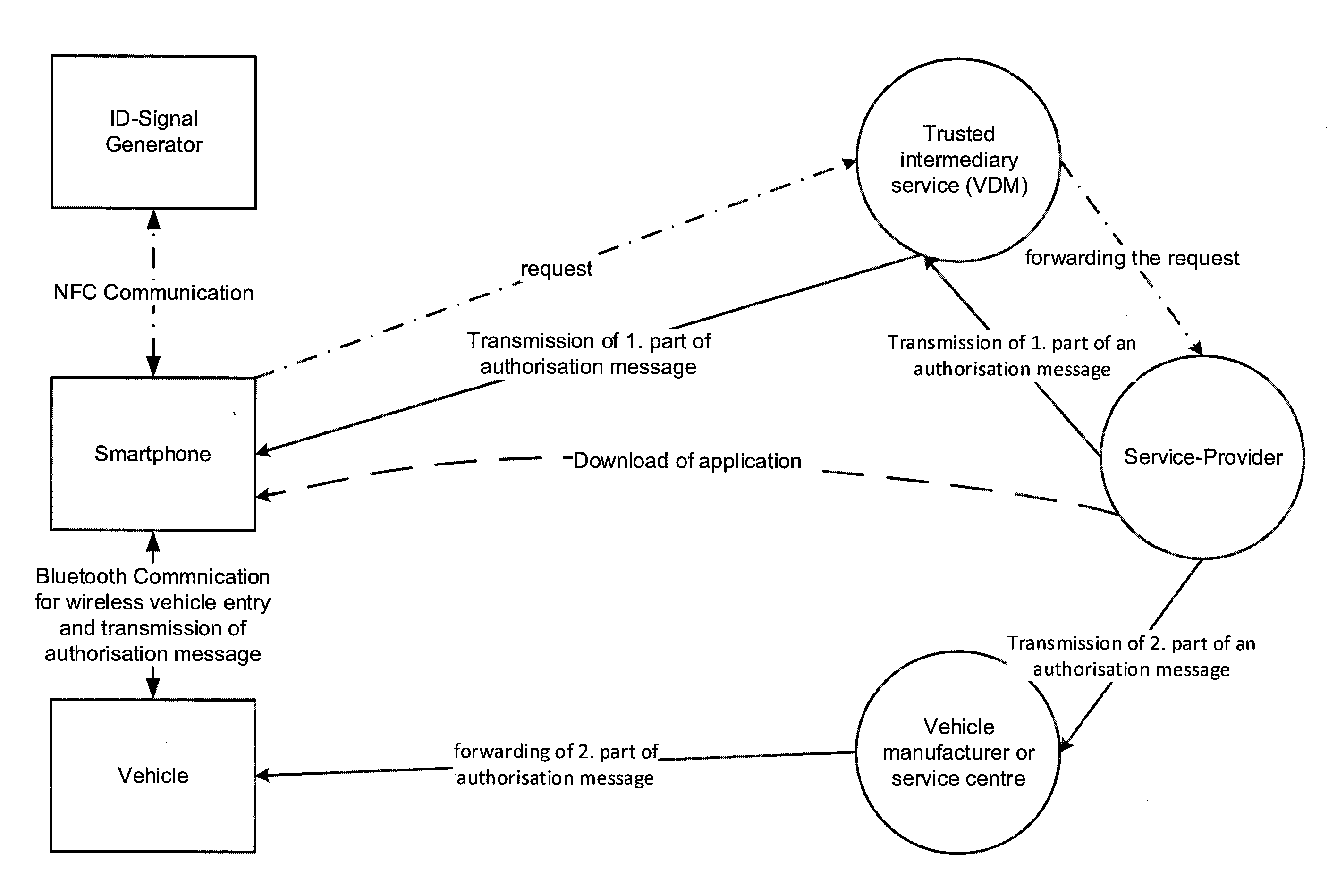

To provide motor vehicle access, a connection is set up between an ID signal generator assigned to the vehicle and a wireless communication device. A first identification code, stored in the ID signal generator, is transmitted to the communication device. A connection is set up between the communication device and a service provider via a public communication network. The identification code is sent together with a second identification code which identifies the wireless communication device. A multi-part authorization message is generated by the service provider. Parts of the authorization message are sent to the communication device and parts transmitted to a control device in the vehicle. Access authorization of the communication device is checked on the basis of the part of the authorization message from the vehicle and the part from the communication device, via a connection between the communication device and the control device of the vehicle.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
HUF HULSBECK & FURST GMBH & CO KG | STEEGER STRASSE 17 VELBERT 42551 |
International Classification(s)

- 2011 Application Filing Year
- G08C Class
- 520 Applications Filed
- 422 Patents Issued To-Date
- 81.16 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Mönig, Stefan | Schwelm, DE | 30 | 306 |
# of filed Patents : 30 Total Citations : 306 | |||
Schröter, Veit | Essen, DE | 1 | 22 |
# of filed Patents : 1 Total Citations : 22 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 22 Citation Count
- G08C Class
- 60 % this patent is cited more than
- 12 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 1, 2025 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
