CUTTING DEVICE OF A TEXTILE YARN DURING ITS FEEDING TO AN OPERATING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 1, 2013
app pub date -
Oct 11, 2011
filing date -
Oct 19, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

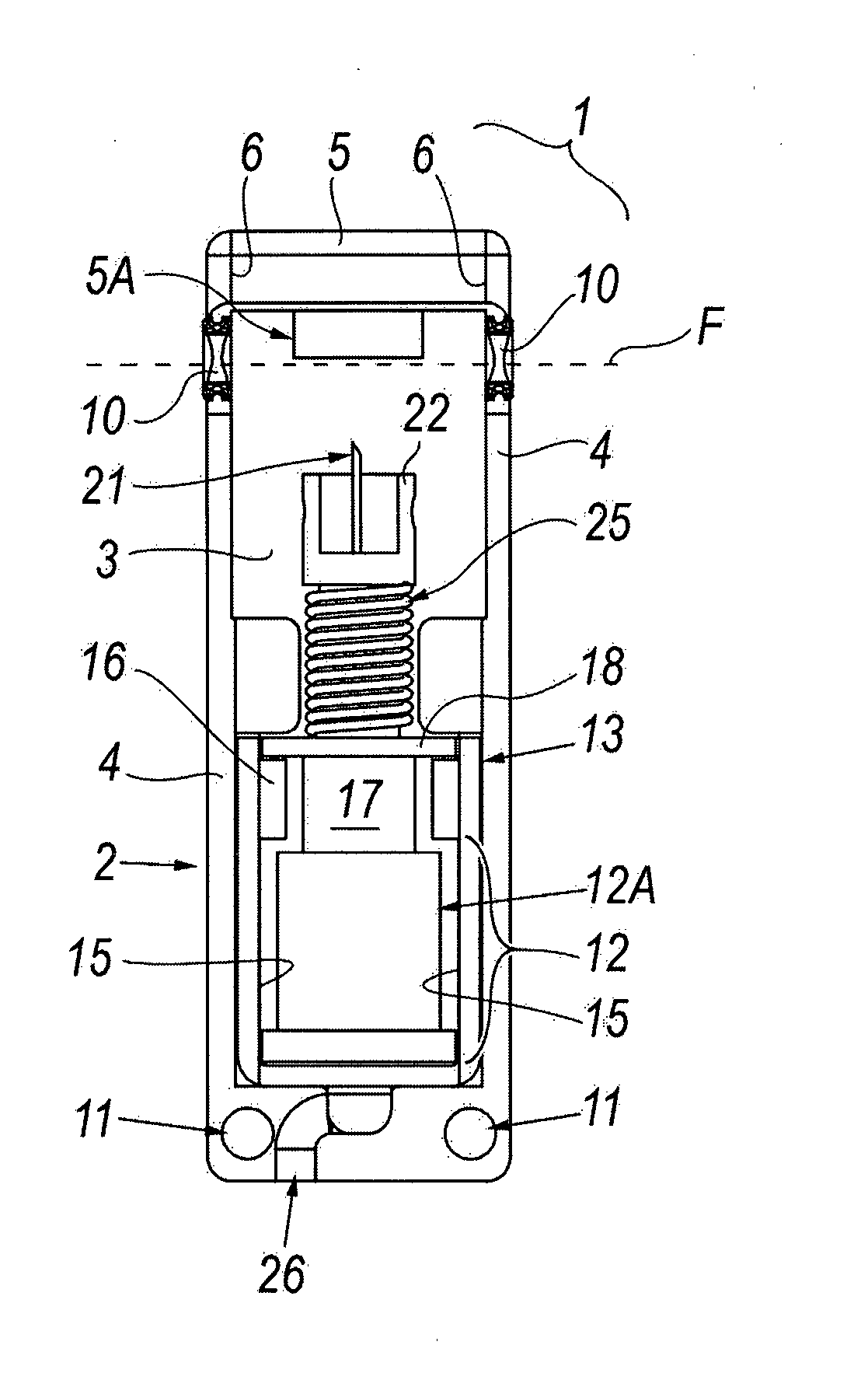

A device for cutting a textile yarn during its feed to an operator element such as a textile machine for its processing or a member for feeding it to such a machine. The device includes a blade member inserted into a housing presenting at least one aperture for passage of the yarn, the blade member carried by a movable support element subjected to an actuator for its movement. The movable support element being able to assume two working positions, a first position in which the blade member is spaced from the yarn and a second position in which the member cooperates with the yarn and cuts it. The actuator include a bistable electromagnet, a spring mounted about the movable support member urging the blade member into the cutting position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B65H Class
- 10.50 % this patent is cited more than
- 12 Age
