VEHICLE MEASUREMENT SYSTEM WITH USER INTERFACE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 11, 2013
filing date -
Jun 29, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

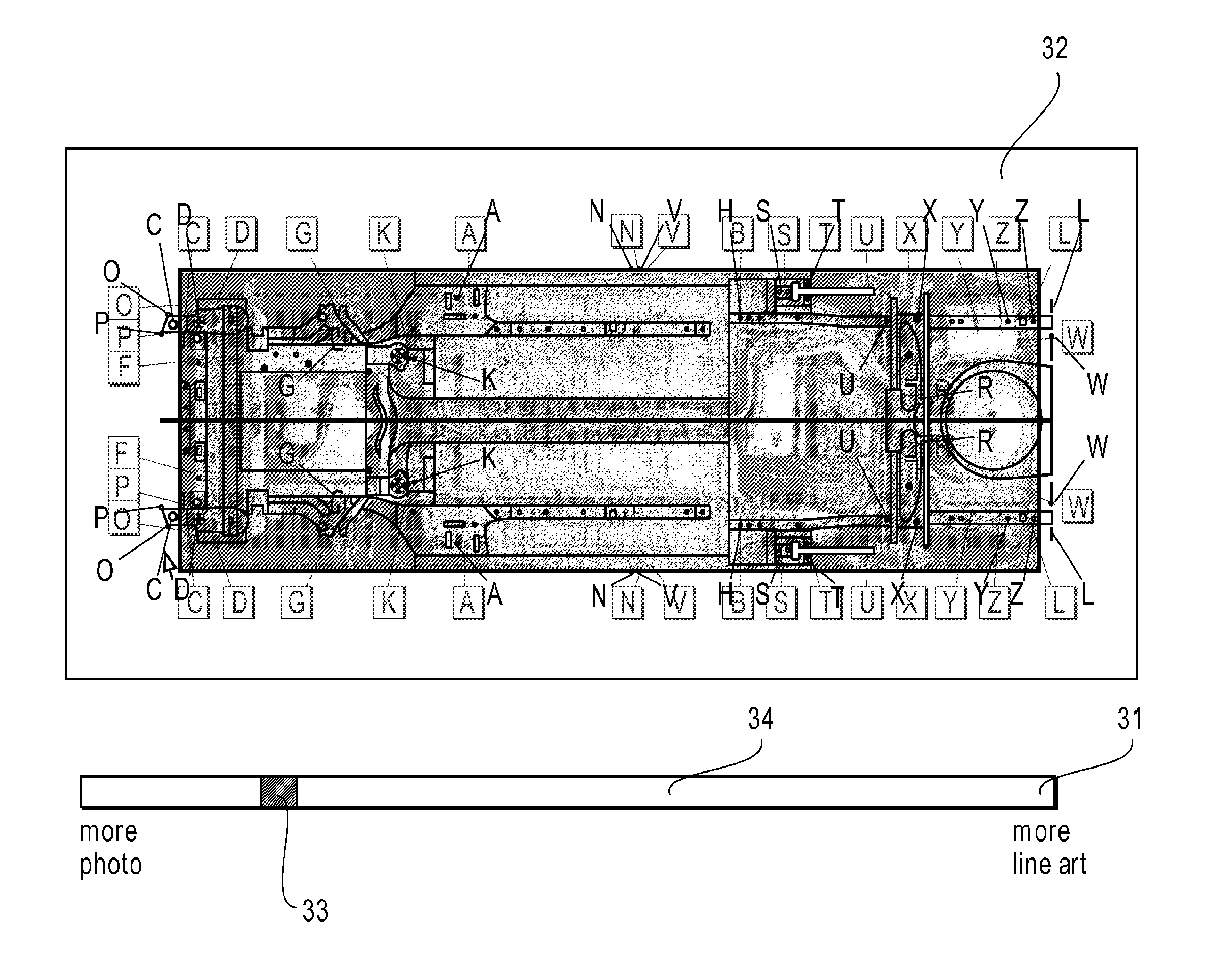

A vehicle measurement system that provides highly realistic guidance to perform a vehicle measurement procedure is described. An exemplary system includes a data storage device configured to store vehicle data for a plurality of vehicles. The vehicle data corresponding to each respective vehicle includes an image of the vehicle and information of predefined points on the vehicle to which emitters or targets should be attached for performing a vehicle measurement procedure. A user interface is provided to receive a user input identifying a vehicle under test. After the user identifies a vehicle under test, the system retrieves vehicle data corresponding to the vehicle under test from the data storage device; and displays the image of the vehicle under test on the display with the predefined points on the vehicle identified.
First Claim
Other Claims data not available
