BANNER BRACKET
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 25, 2013
app pub date -
Jul 25, 2012
filing date -
Jul 28, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

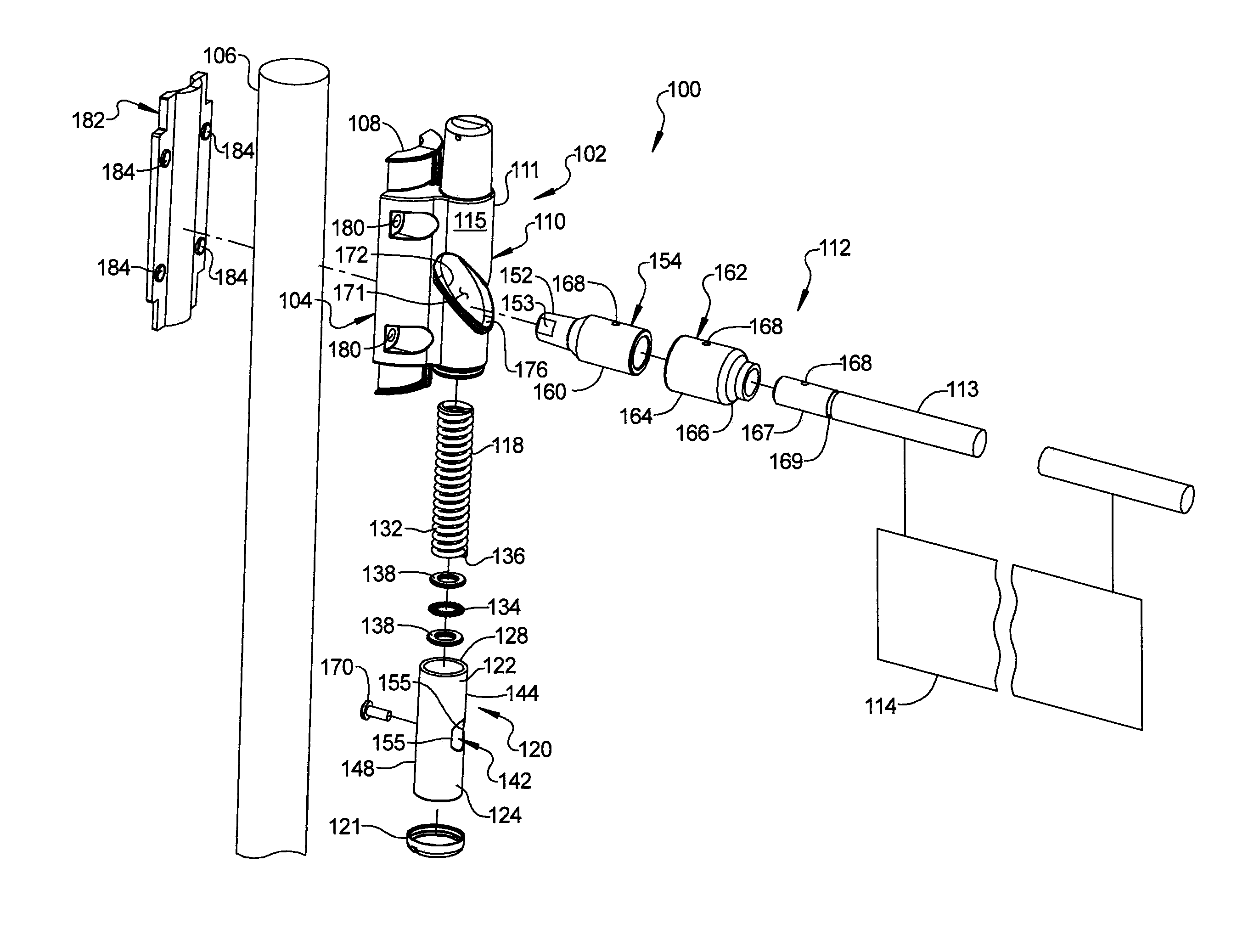

A bracket assembly for holding an article has a base having a rod receiving section that receives a rod assembly including a rod to which an article can be hung. The rod receiving section includes a hollow housing in which a spring and actuator are disposed. A sidewall of the housing has an opening including opposed slots that extend upwardly and away from each other from a junction where lower ends of the slots meet. An inner section of the rod assembly extends through the opening in the sidewall of the housing and is secured to the actuator. Upon the rod deflecting in response to wind loading of the article, the inner section of the rod assembly moves upwardly in one of the slots and translates the actuator upwardly compressing the spring. The compressed spring urges the actuator downwardly to return the actuator to a neutral position.
First Claim
Other Claims data not available
