Heat receiver tube, method for manufacturing the heat receiver tube, parabolic trough collector with the receiver tube and use of the parabolic trough collector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Dec 1, 2010
filing date -
Dec 1, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

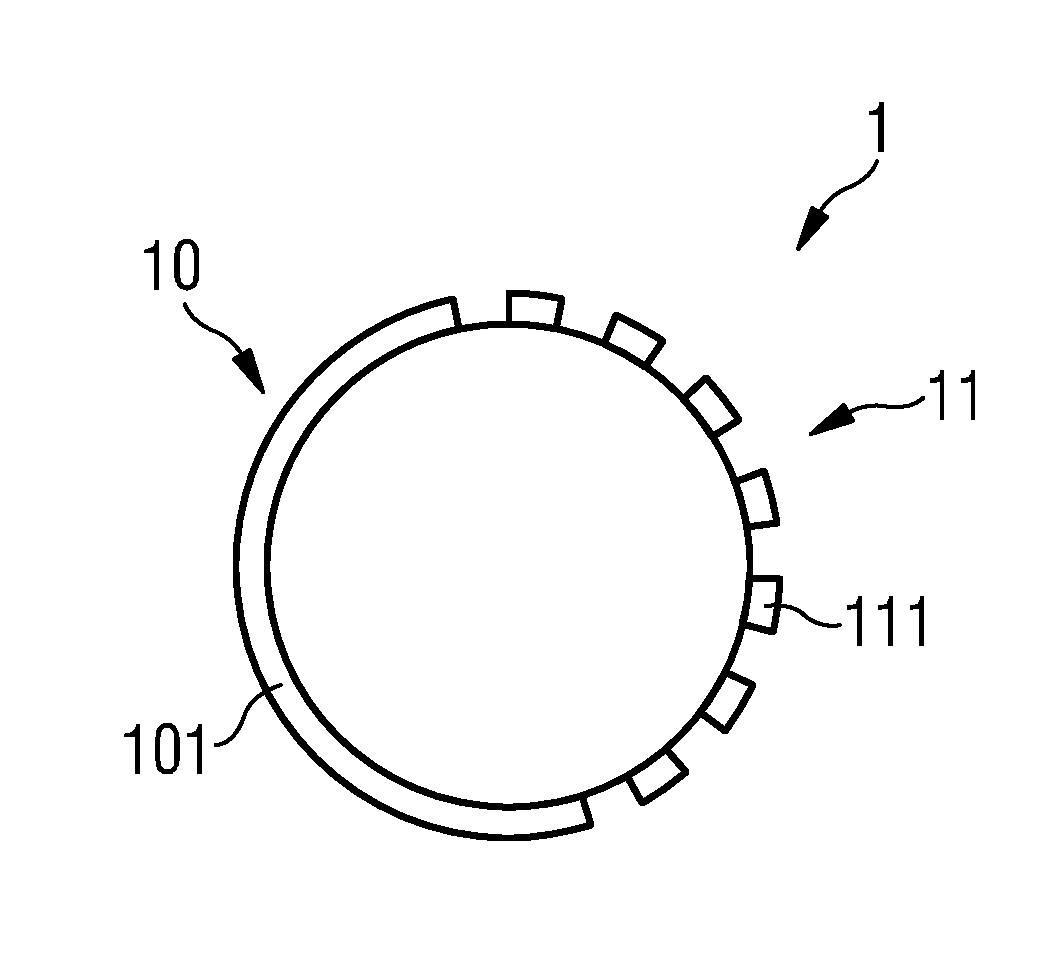

A heat receiver tube for absorbing solar energy and for transferring the absorbed solar energy to a heat transfer fluid is provided. The heat receiver tube includes a first partial surface, which is covered by a solar energy absorptive coating, and a second partial surface, which is substantially uncovered by the absorbing coating. Also provided is a parabolic trough collector with a parabolic mirror having a sunlight reflecting surface for concentrating sunlight in a focal line of the parabolic minor and a heat receiver tube which is arranged in the focal line of the parabolic mirror, wherein the heat receiver tube is arranged in the focal line such that the first partial surface with the solar absorptive coating is at least partially located opposite to the sunlight reflecting surface and the second partial surface at least partially averted to the sunlight reflecting surface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- F24J Class
- 316 Applications Filed
- 232 Patents Issued To-Date
- 73.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F24J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
