CONTROL SYSTEM FOR AT LEAST ONE FLEXIBLE TUBULAR ELEMENT CONNECTED TO A CUP-SHAPED MEMBER

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20130180455A1
SERIAL NO

13825558

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

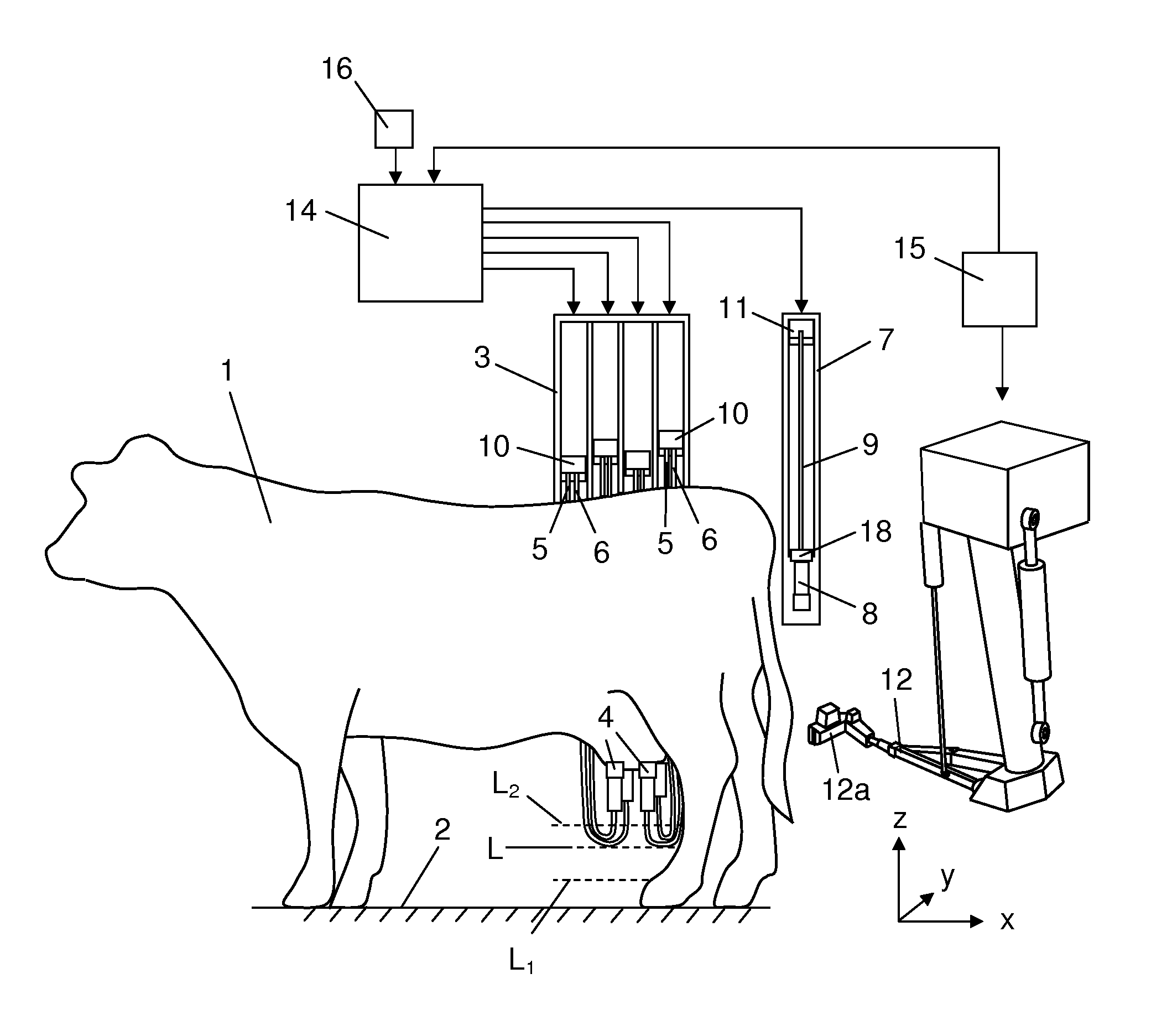

A control system for at least one flexible tubular element connected to a cup-shaped member includes a positioning mechanism arranged to hold the cup-shaped member and the tubular element in a parking position in a magazine when the cup-shaped member is not used, and to allow a pull-out motion of the tubular element when the cup-shaped member is moved from the parking position in the magazine to an attaching position on a teat of an animal by a gripping member. The control system further includes a control unit arranged to control the positioning mechanism such that it provides a pull-out motion of the tubular element with a controlled speed when the cup-shaped member is moved from the parking position to the attaching position on a teat of an animal by the gripping member.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
DELAVAL HOLDING ABP O BOX 39 TUMBA SE-147 21

International Classification(s)

loading....
  • 2011 Application Filing Year
  • A01J Class
  • 88 Applications Filed
  • 79 Patents Issued To-Date
  • 89.78 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2011201220132014201520162017201820190255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Holmertz, Nils-Erik Huddinge, SE 7 32
Mellberg, Sten Gustavsberg, SE 6 33
