SENSING DEVICE HAVING CURSOR AND HYPERLINKING MODES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 11, 2013
app pub date -
Dec 4, 2012
filing date -
May 25, 1999
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

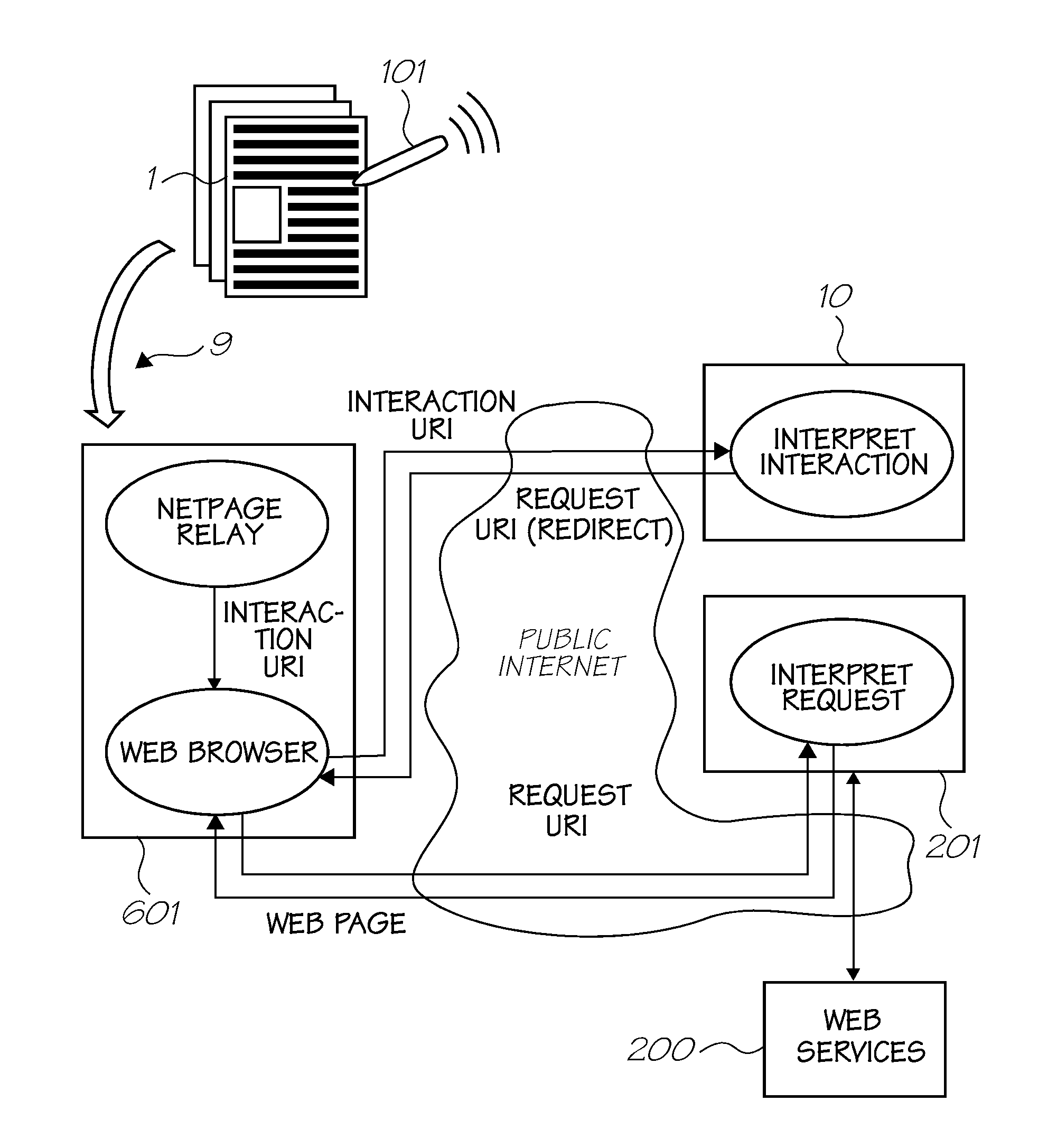

An optical sensing device for controlling a computer system is disclosed. The device has a nib for receiving a nib force upon the nib being pressed against a substrate and a nib switch coupled to the nib. An optical sensor images optically coded data printed on the substrate. A processor effects a mode change between a cursor control mode and a hyperlinking mode upon the nib force actuating the nib switch, generates cursor control data when the optical sensing device is in the cursor control mode, and generates interaction data when the optical sensing device is in the hyperlinking mode. The interaction data indicates a coordinate position of the optical sensing device relative to the substrate. The cursor control data or the interaction data is then communicated to the computer system, where the cursor control data initiates a cursor control response and the interaction data initiates a hyperlinking response.
