Quaternary Photodetector for Downhole Optical Sensing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 29, 2012
app pub date -
May 23, 2011
filing date -
Nov 6, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

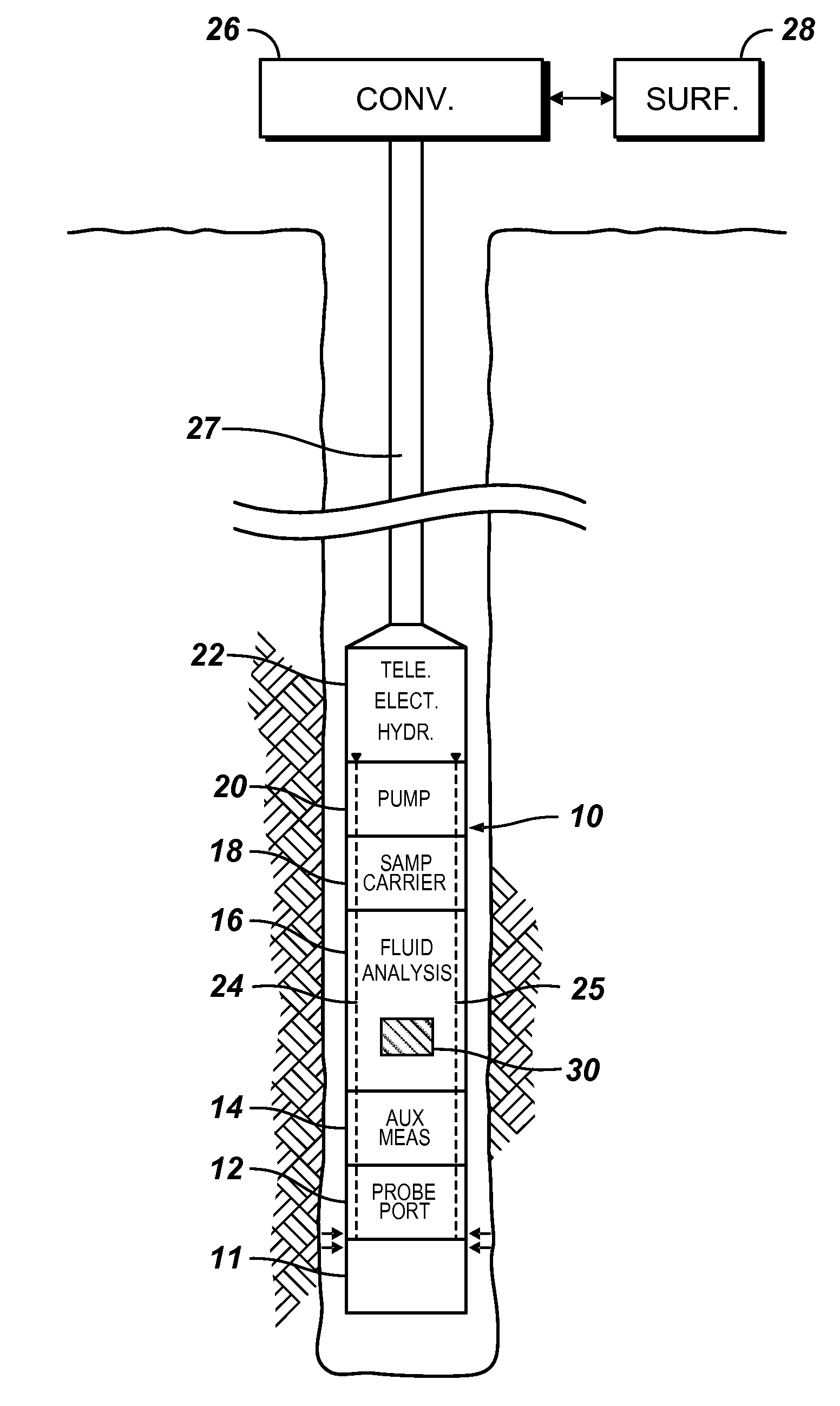

Detector assembly for downhole spectroscopy includes a near-infra-red quaternary photodiode that can operate at high temperatures without cooling it to the standard operation temperature range of the photodiode. High temperature operation of the photodiode right shifts the detector assembly's responsivity curve to include wavelengths of up to 2400-nm. The photodiode has manageable dark current at temperatures even at 200° C., and it can be packaged using high temperature construction. The photodiode is operated in photovoltaic mode at high temperatures but can be operated at photoconductive mode at lower temperatures. At least partial cooling can be provided above a predetermined temperature.
