Coaxial Connector with Grommet Biasing for Enhanced Continuity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 4, 2012
filing date -
Dec 27, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

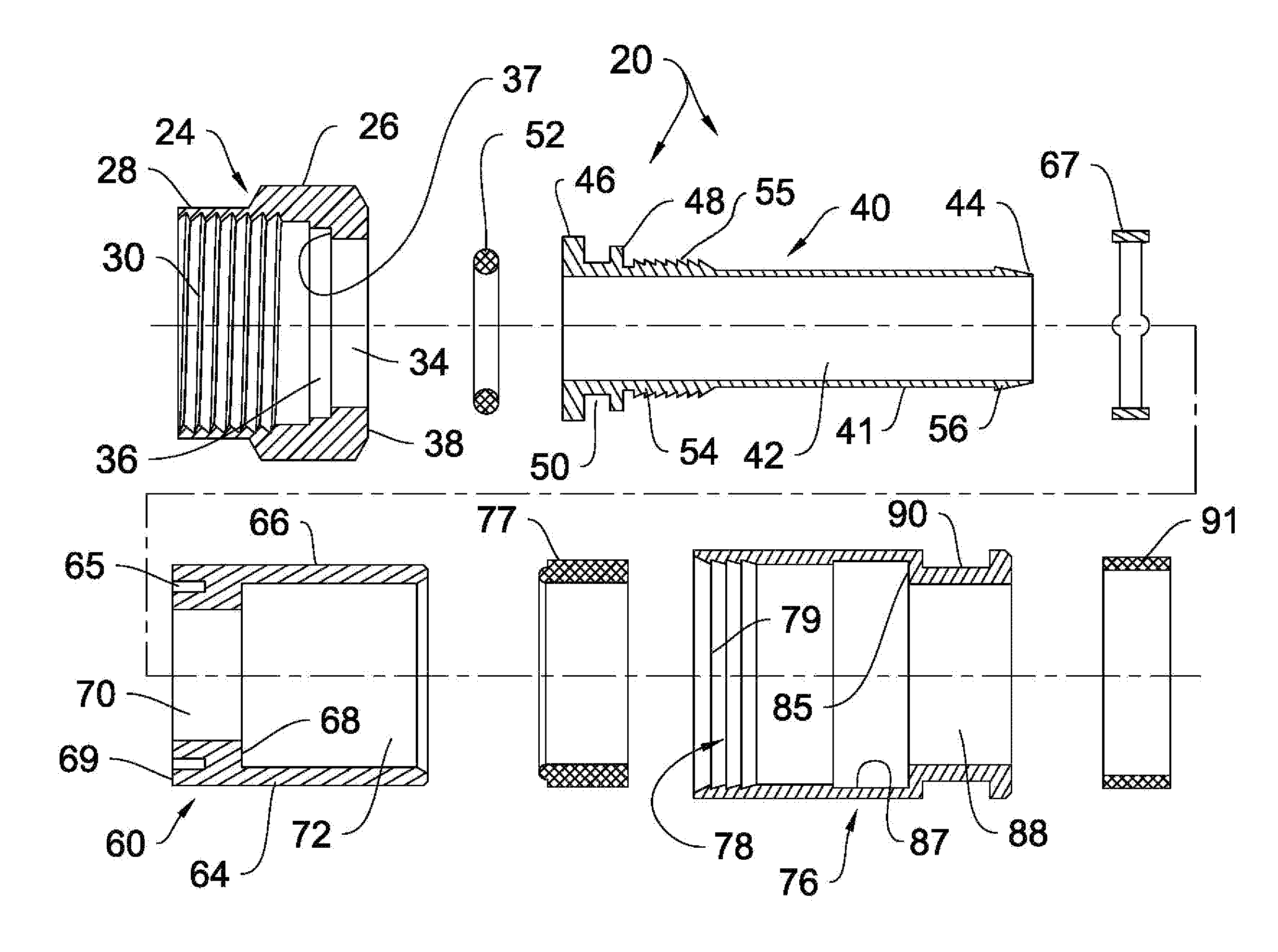

A compressible F-connector and method for interconnection with coaxial cable that includes a biasing grommet for promoting electrical continuity despite inadequate nut tightening. Each connector has a rigid nut, a post penetrating the nut, a tubular body, and an end cap. The conductive post coaxially extends through the connector, linking the nut and body. A post end penetrates the coaxial cable. Each connector body comprises a frontal annular groove in which is seated a biasing grommet with projections extending from one or both grommet ends that bias the nut to insure mechanical and electrical contact with the post. In one embodiment of the invention the projections are semicircular. In alternative embodiments the projections may be triangular or square, and projections on one grommet end may be radially offset from projections on the opposite end.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 39 Citation Count
- H01R Class
- 93.52 % this patent is cited more than
- 12 Age
