FOUNTAIN-PEN AUTOMATIC ASSEMBLY LINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 4, 2013
app pub date -
Dec 19, 2012
filing date -
Dec 29, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

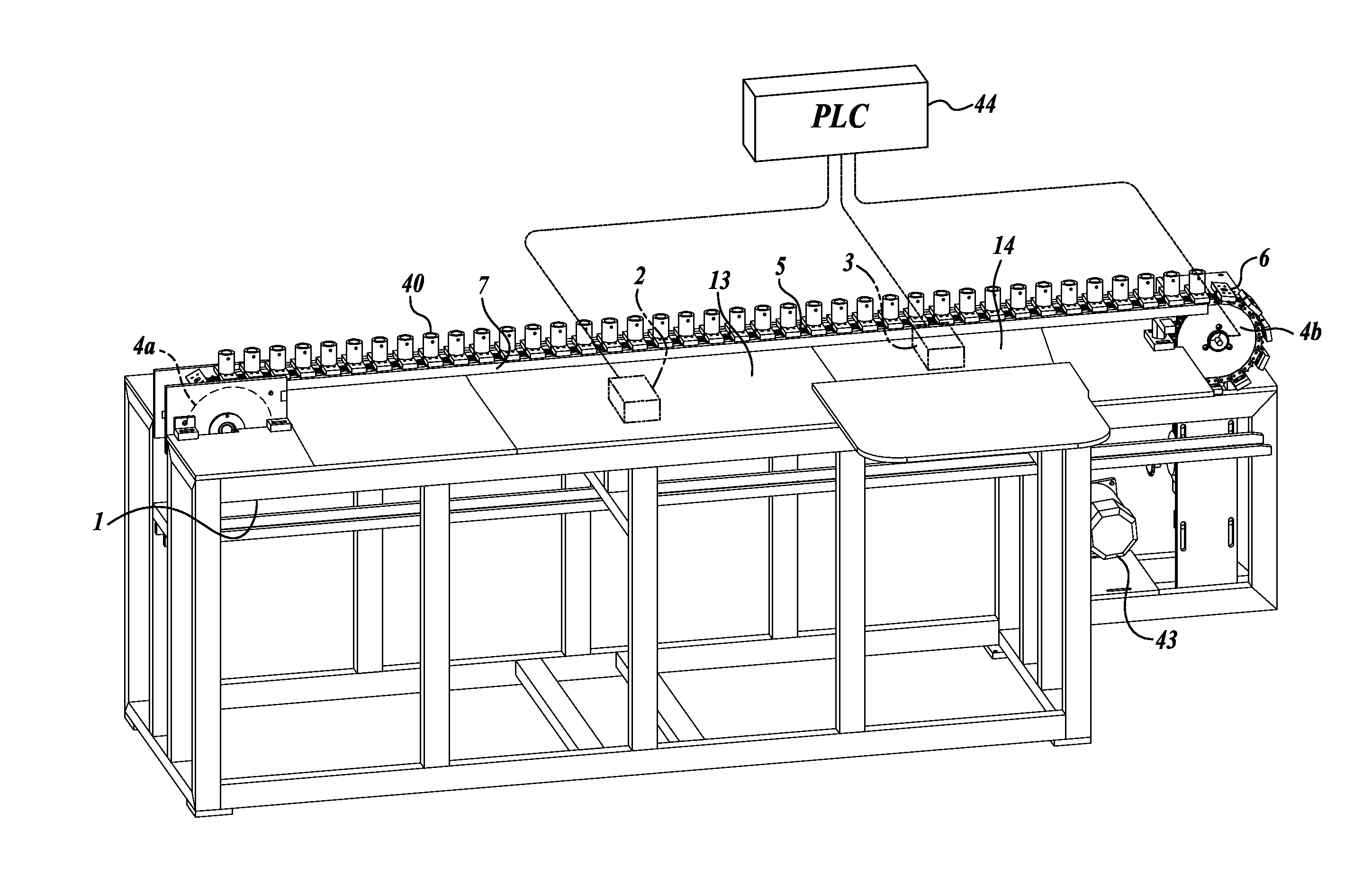

A fountain-pen automatic assembly line system includes a worktable, two sprockets, and an endless loop driving chain connecting the two sprockets. The sprockets are mounted at two ends of the worktable respectively. A plurality of jigs is provided on the driving chain, wherein the jigs are configured to hold fountain pen barrels. A transporting rail supporting the driving chain is provided between the two sprockets, and the transporting rail is fixed on the worktable. An ink-reservoir mounting station and an ink-reservoir pressing station are provided on the worktable successively. The ink-reservoir mounting station is provided with an automatic ink-reservoir mounting machine, and the ink-reservoir pressing station is provided with an automatic ink-reservoir pressing machine. The ink-reservoir mounting process and the ink-reservoir pressing process are linked via the driving chain, so that the assembly time is shortened and the assembly efficiency is improved.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B65G Class
- 7.75 % this patent is cited more than
- 12 Age
