Master cylinder device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 2016
Grant Date -
Jul 4, 2013
app pub date -
Sep 21, 2011
filing date -
Sep 24, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

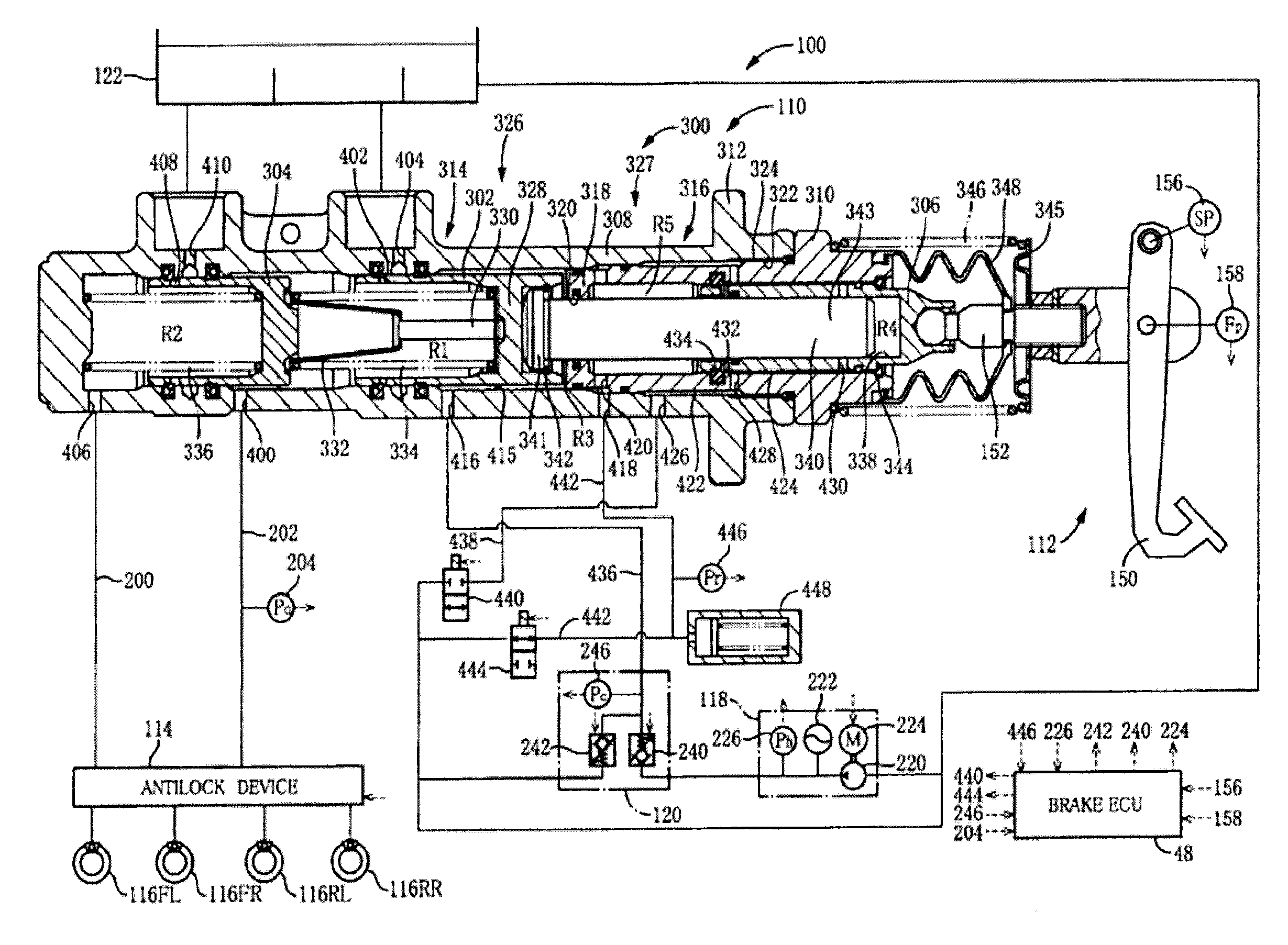

A master cylinder device including: a housing whose front side is closed and which has a separation wall for separating the inside of the housing into a front side chamber and a rear side chamber; a pressurizing piston disposed in the front side chamber so as to define a pressurizing chamber for pressurizing the brake fluid and an input chamber into which a brake fluid from a high pressure source is introduced; an input piston disposed in the rear side chamber and moving forward by an operation force; and a transmission rod which is through the separation wall, whose proximal end portion is fixed in one of the pressurizing and input pistons, and whose distal end portion is apart from the other of the pressurizing and input pistons in a state of no forward movement.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B60T Class
- 696 Applications Filed
- 608 Patents Issued To-Date
- 87.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B60T Class
- 18.16 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 19, 2027 |
