US Patent Application No: 2013/0164,435

METHOD FOR TREATING AN ELASTOMERIC SURFACE OF A DEVICE FOR DISPENSING A FLUID PRODUCT

---

Abstract

---

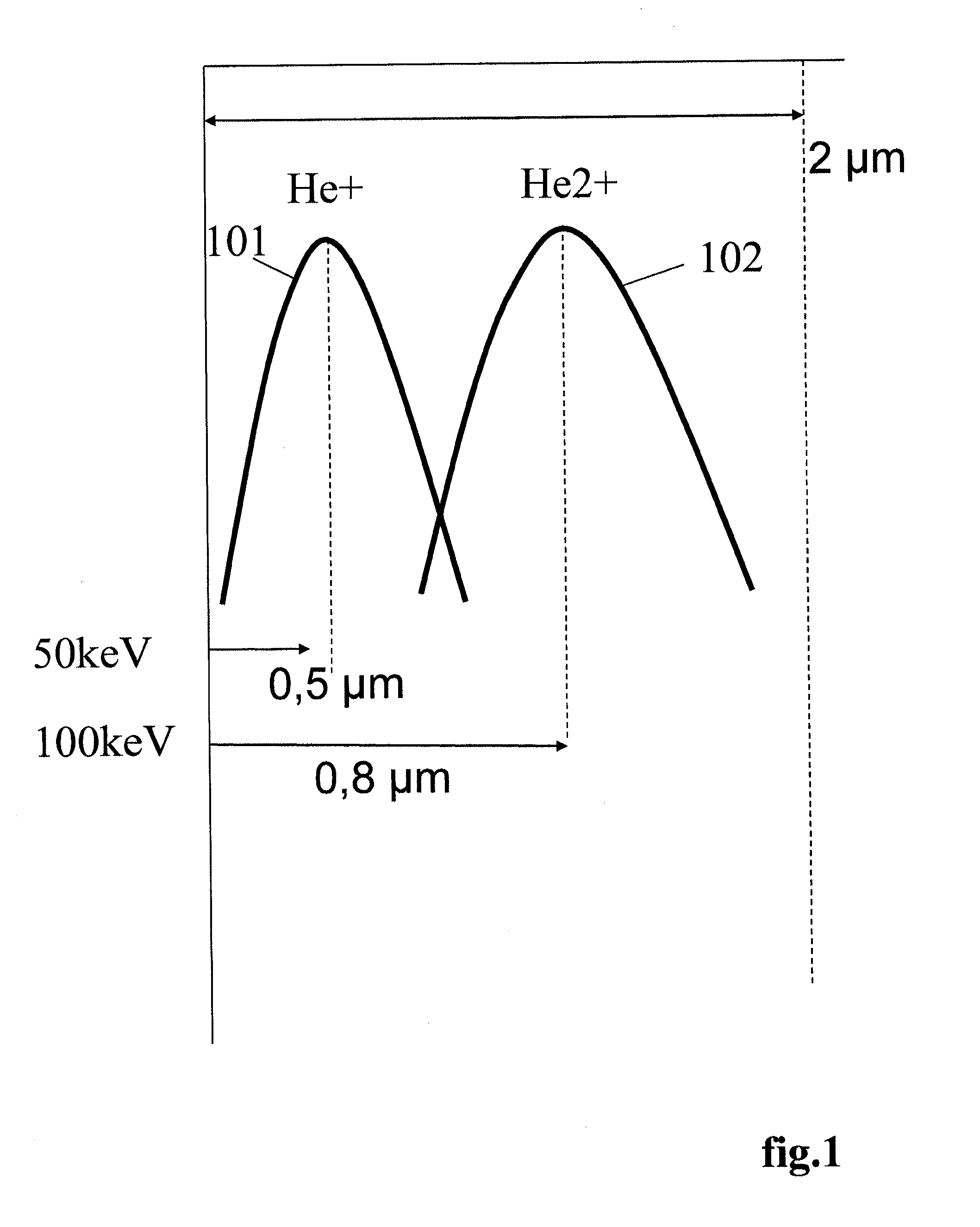

A method of treating an elastomer surface of a fluid dispenser device, said method comprising a step of modifying at least one elastomer surface to be treated of said device by ionic implantation using multi-charged and multi-energy ion beams, said modified elastomer surface limiting adhesion of the elastomer surfaces during the manufacturing and/or assembly stages, said multi-charged ions being selected from helium (He), nitrogen (N), oxygen (O), neon (Ne), argon (Ar), krypton (Kr), and xenon (Xe), ionic implantation being carried out to a depth of 0 μm to 3 μm.

---



---

Description

---

Claims

---

Claims data not available

---
